| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32320cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32320cztM0_level2_quad_clean.evt |
| Size (bytes) | 736,960,320 | 79,989,120 |
| Size | 702.8 MB | 76.3 MB |
| Events in quadrant A | 2,921,375 | 552,246 |
| Events in quadrant B | 5,332,776 | 527,555 |
| Events in quadrant C | 6,893,583 | 450,524 |
| Events in quadrant D | 6,771,935 | 477,000 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12540 | 2 |
| B | 0 | 20076 | 1 |
| C | 0 | 24634 | 1 |
| D | 0 | 24137 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5921 | 51 | 0.861341% |
| B | 5921 | 281 | 4.745820% |
| C | 5921 | 1407 | 23.762878% |
| D | 5921 | 802 | 13.545009% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

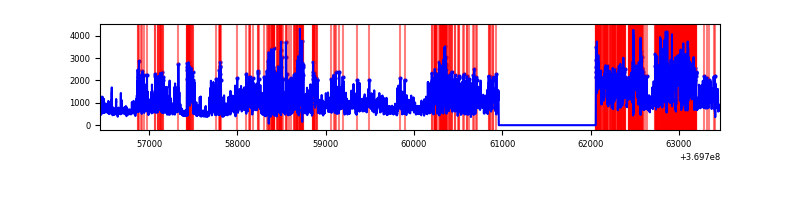

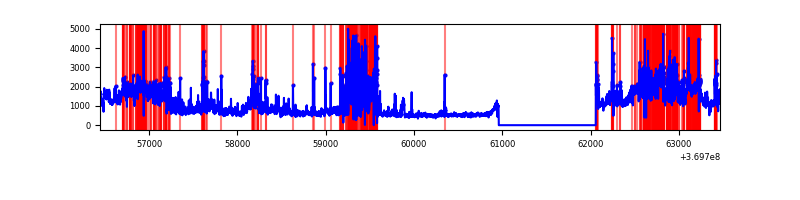

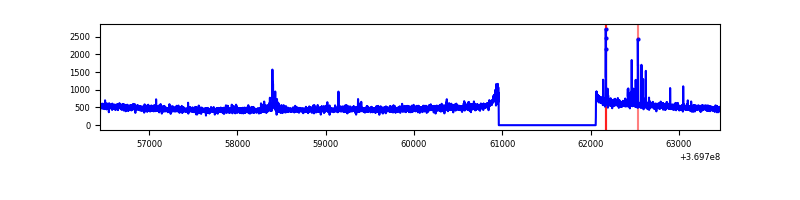

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7021 | 5922 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7021 | 5922 | 98 | 98 | 1.40% | 1.65% |  |
| C | 7021 | 5922 | 663 | 663 | 9.44% | 11.20% |  |
| D | 7021 | 5922 | 660 | 660 | 9.40% | 11.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 6 | 50734 | 344.06 | 731 | 715 | 145.4 |
| A | 12 | 189 | 23947 | 159.81 | 731 | 715 | 145.4 |
| A | 13 | 6 | 18058 | 119.3 | 731 | 715 | 145.4 |
| B | 6 | 159 | 1911356 | 14283.43 | 713 | 697 | 133.8 |
| B | 5 | 172 | 323789 | 2415.33 | 713 | 697 | 133.8 |
| B | 0 | 190 | 168480 | 1254.29 | 713 | 697 | 133.8 |
| C | 0 | 10 | 3079947 | 20657.53 | 639 | 643 | 149.1 |
| C | 3 | 233 | 1080746 | 7245.88 | 639 | 643 | 149.1 |
| C | 14 | 238 | 109802 | 732.29 | 639 | 643 | 149.1 |
| D | 8 | 195 | 2420857 | 15113.59 | 668 | 650 | 160.1 |
| D | 13 | 249 | 787832 | 4915.76 | 668 | 650 | 160.1 |
| D | 12 | 6 | 331830 | 2068.14 | 668 | 650 | 160.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

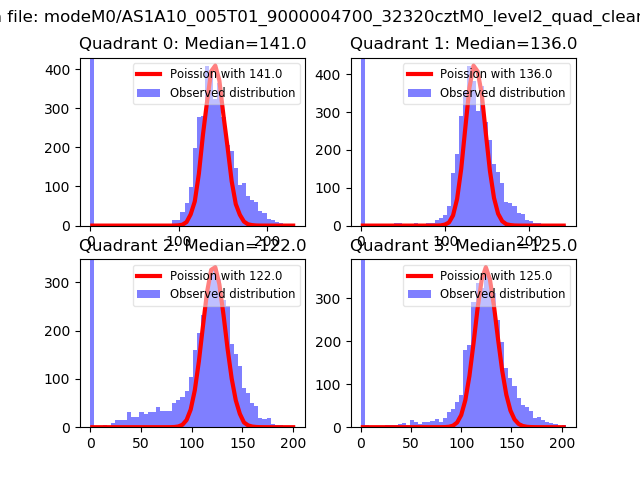

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

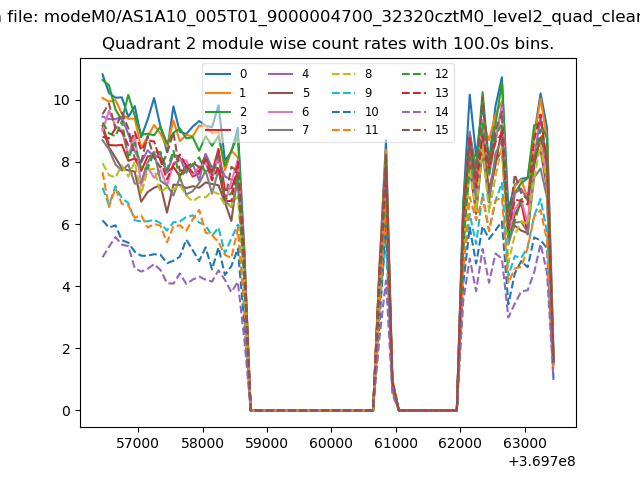

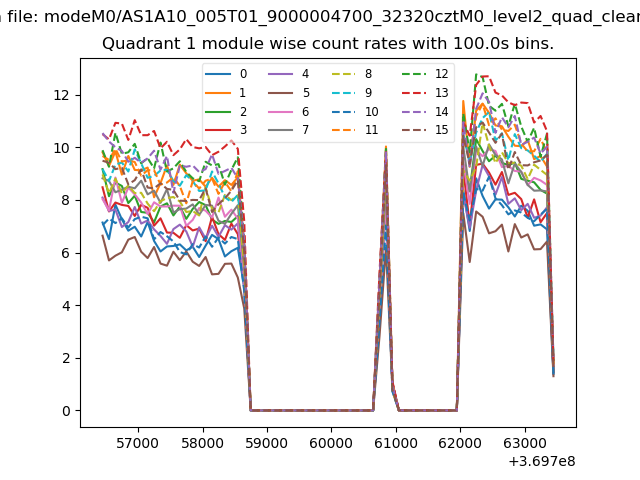

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

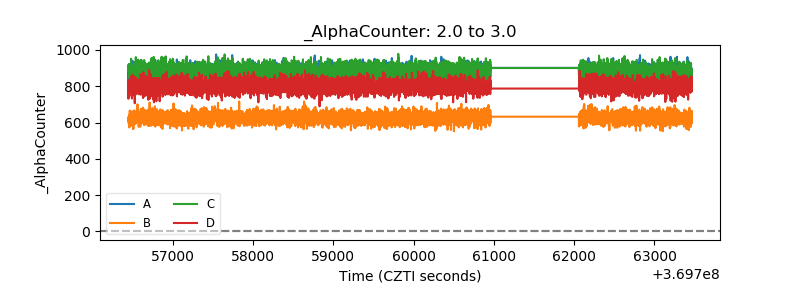

| Alpha Counter |  |

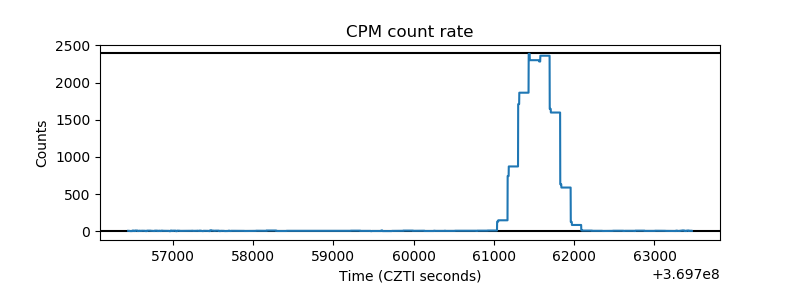

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
