| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32323cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32323cztM0_level2_quad_clean.evt |
| Size (bytes) | 761,938,560 | 93,925,440 |
| Size | 726.6 MB | 89.6 MB |
| Events in quadrant A | 3,179,529 | 652,680 |
| Events in quadrant B | 5,966,351 | 628,901 |
| Events in quadrant C | 5,590,586 | 585,928 |
| Events in quadrant D | 7,923,587 | 545,285 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13237 | 3 |
| B | 0 | 22184 | 2 |
| C | 0 | 20876 | 2 |
| D | 0 | 27986 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6172 | 24 | 0.388853% |
| B | 6172 | 465 | 7.534025% |
| C | 6172 | 649 | 10.515230% |
| D | 6172 | 869 | 14.079715% |

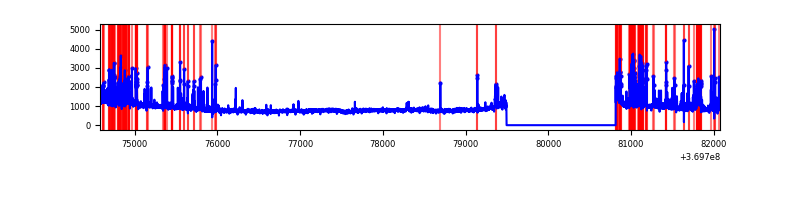

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7492 | 6173 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7492 | 6173 | 248 | 248 | 3.31% | 4.02% |  |
| C | 7492 | 6173 | 355 | 355 | 4.74% | 5.75% |  |
| D | 7492 | 6173 | 702 | 702 | 9.37% | 11.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 6 | 33509 | 203.73 | 808 | 794 | 160.6 |
| A | 13 | 6 | 15497 | 91.56 | 808 | 794 | 160.6 |
| A | 13 | 254 | 11955 | 69.5 | 808 | 794 | 160.6 |
| B | 6 | 159 | 1889053 | 12760.18 | 792 | 772 | 148.0 |
| B | 5 | 172 | 731518 | 4938.06 | 792 | 772 | 148.0 |
| B | 4 | 80 | 145903 | 980.73 | 792 | 772 | 148.0 |
| C | 0 | 10 | 2212688 | 12678.31 | 754 | 761 | 174.5 |
| C | 3 | 233 | 167530 | 955.88 | 754 | 761 | 174.5 |
| C | 14 | 238 | 121615 | 692.71 | 754 | 761 | 174.5 |
| D | 8 | 195 | 2678244 | 15347.84 | 734 | 716 | 174.5 |
| D | 13 | 249 | 1420346 | 8137.45 | 734 | 716 | 174.5 |
| D | 13 | 174 | 520055 | 2976.9 | 734 | 716 | 174.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

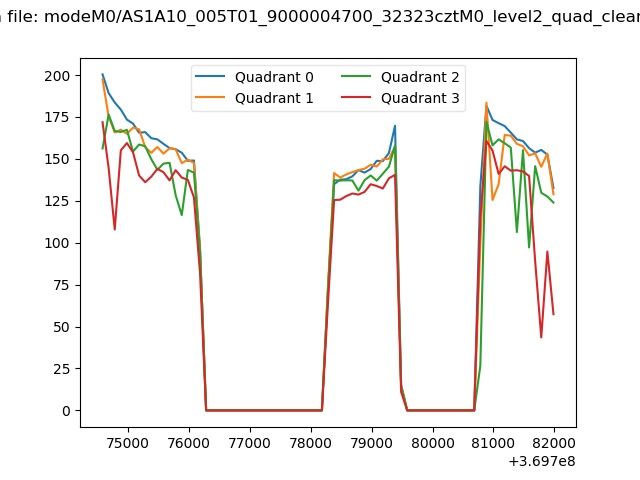

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

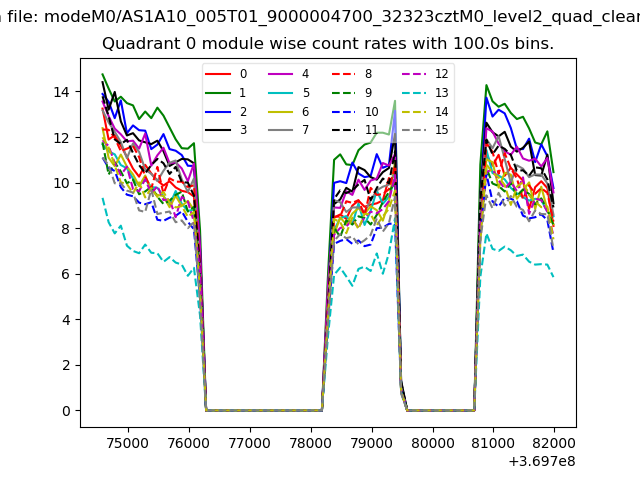

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

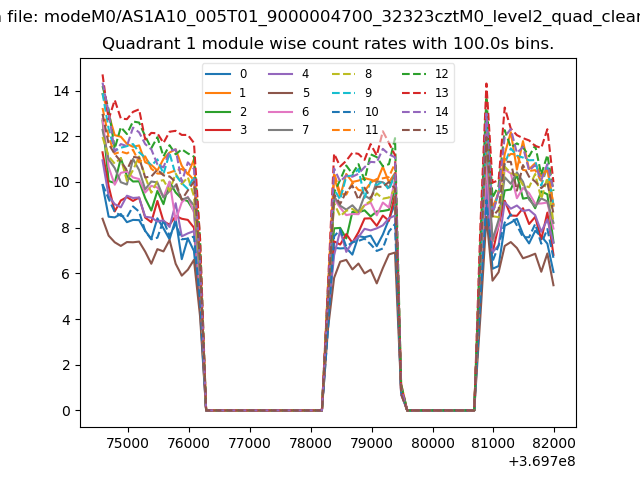

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

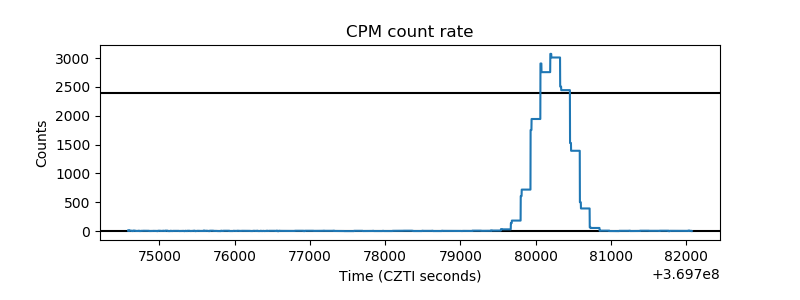

| _CPM_Rate |  |

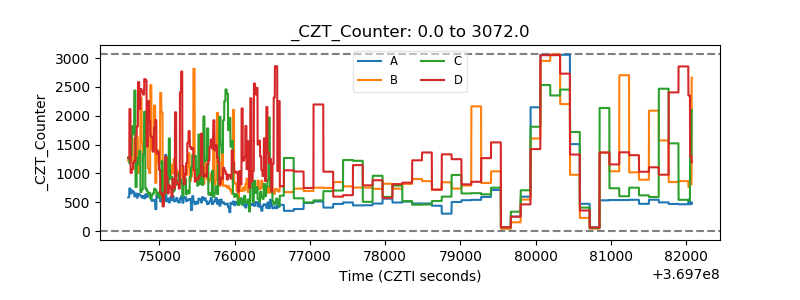

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

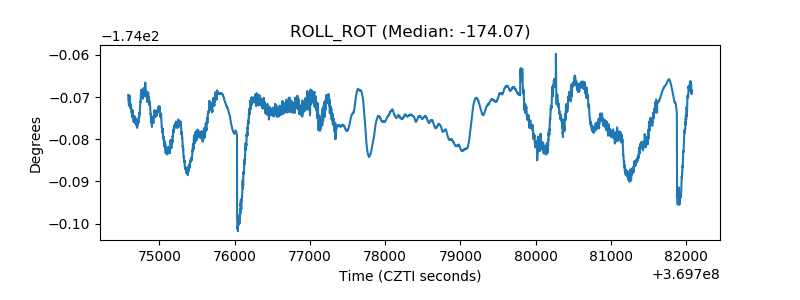

| _ROLL_ROT |  |

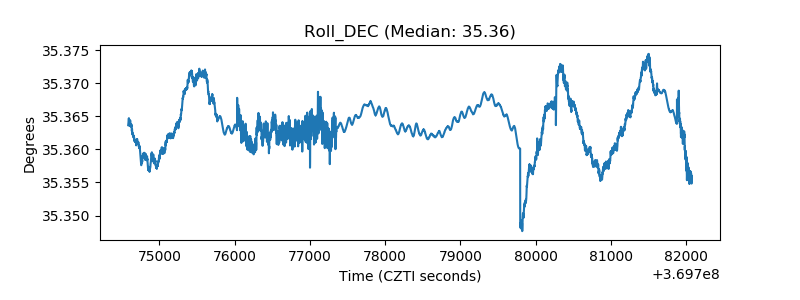

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
