| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32326cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32326cztM0_level2_quad_clean.evt |
| Size (bytes) | 760,204,800 | 71,472,960 |
| Size | 725.0 MB | 68.2 MB |
| Events in quadrant A | 3,294,142 | 454,570 |
| Events in quadrant B | 5,937,361 | 426,289 |
| Events in quadrant C | 7,420,103 | 393,845 |
| Events in quadrant D | 5,909,127 | 411,417 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14136 | 2 |
| B | 0 | 22675 | 1 |
| C | 0 | 26590 | 1 |
| D | 0 | 22759 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6847 | 47 | 0.686432% |
| B | 6847 | 372 | 5.433036% |
| C | 6847 | 1494 | 21.819775% |
| D | 6847 | 375 | 5.476851% |

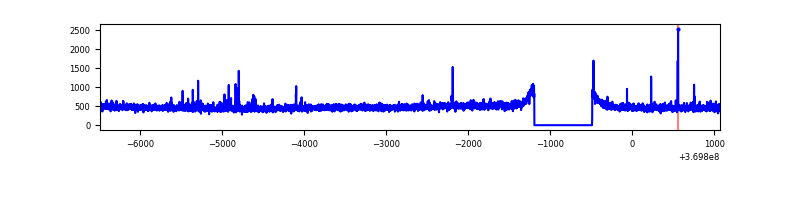

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7552 | 6848 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7552 | 6848 | 179 | 179 | 2.37% | 2.61% |  |
| C | 7552 | 6848 | 937 | 937 | 12.41% | 13.68% |  |
| D | 7552 | 6848 | 310 | 310 | 4.10% | 4.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 50570 | 298.27 | 831 | 812 | 166.8 |
| A | 13 | 6 | 15886 | 90.36 | 831 | 812 | 166.8 |
| A | 12 | 189 | 15230 | 86.42 | 831 | 812 | 166.8 |
| B | 6 | 159 | 1939185 | 12563.8 | 809 | 789 | 154.3 |
| B | 5 | 172 | 460846 | 2981.88 | 809 | 789 | 154.3 |
| B | 10 | 245 | 247742 | 1600.64 | 809 | 789 | 154.3 |
| C | 0 | 10 | 3981996 | 22786.76 | 742 | 748 | 174.7 |
| C | 15 | 208 | 256123 | 1461.64 | 742 | 748 | 174.7 |
| C | 14 | 238 | 119654 | 680.56 | 742 | 748 | 174.7 |
| D | 8 | 195 | 1749782 | 9287.84 | 788 | 767 | 188.3 |
| D | 11 | 176 | 704747 | 3738.36 | 788 | 767 | 188.3 |
| D | 13 | 249 | 175177 | 926.17 | 788 | 767 | 188.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

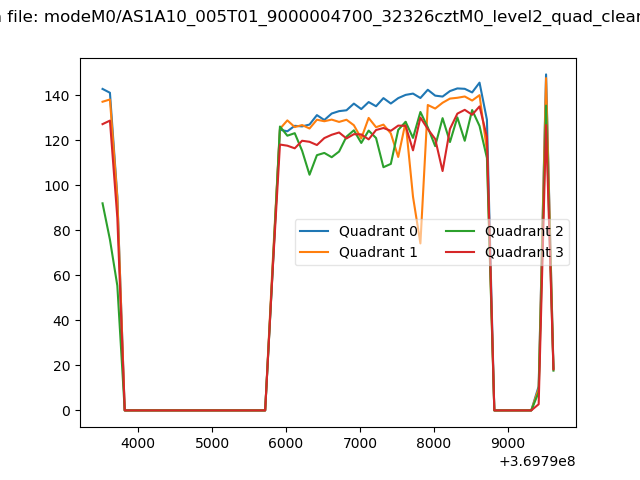

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

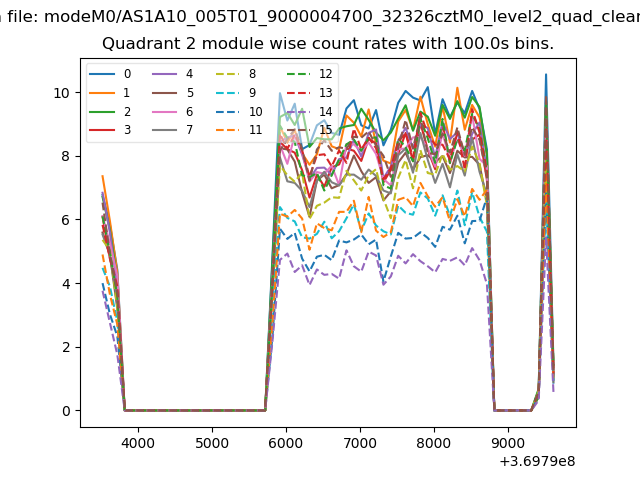

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

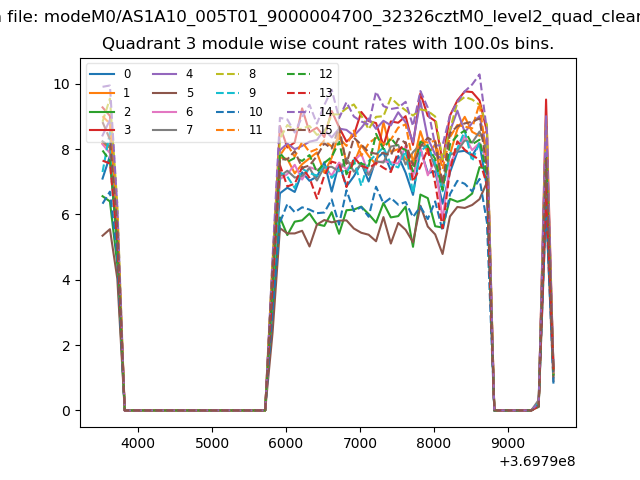

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

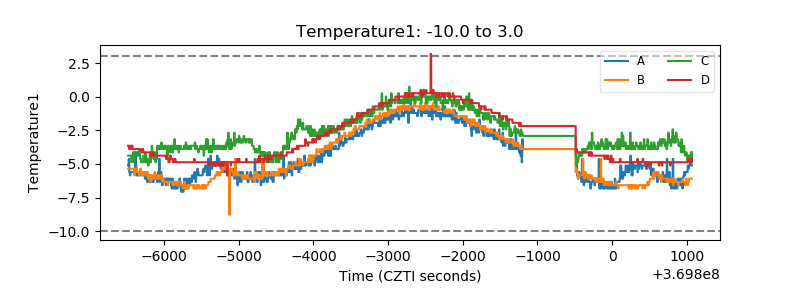

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

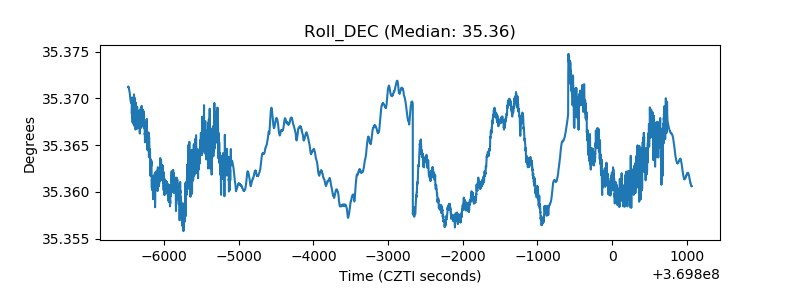

| _Roll_DEC |  |
| _Roll_RA |  |

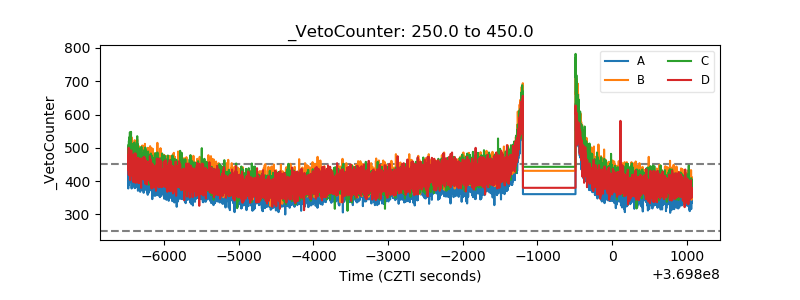

| Veto Counter |  |
