| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32340cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32340cztM0_level2_quad_clean.evt |
| Size (bytes) | 695,399,040 | 79,799,040 |
| Size | 663.2 MB | 76.1 MB |
| Events in quadrant A | 3,366,379 | 516,448 |
| Events in quadrant B | 6,300,158 | 477,663 |
| Events in quadrant C | 4,091,414 | 481,377 |
| Events in quadrant D | 6,828,897 | 451,881 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14484 | 3 |
| B | 0 | 23788 | 2 |
| C | 0 | 16494 | 2 |
| D | 0 | 25406 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7021 | 56 | 0.797607% |
| B | 7021 | 558 | 7.947586% |
| C | 7021 | 179 | 2.549494% |
| D | 7021 | 465 | 6.622988% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7901 | 7023 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7901 | 7023 | 246 | 246 | 3.11% | 3.50% |  |
| C | 7901 | 7023 | 30 | 30 | 0.38% | 0.43% |  |
| D | 7901 | 7023 | 268 | 268 | 3.39% | 3.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 25255 | 141.46 | 862 | 844 | 172.6 |
| A | 13 | 6 | 13122 | 71.15 | 862 | 844 | 172.6 |
| A | 13 | 254 | 13081 | 70.91 | 862 | 844 | 172.6 |
| B | 6 | 159 | 1996827 | 12543.64 | 834 | 814 | 159.1 |
| B | 5 | 172 | 797318 | 5005.51 | 834 | 814 | 159.1 |
| B | 0 | 190 | 78671 | 489.28 | 834 | 814 | 159.1 |
| C | 3 | 233 | 449138 | 2320.92 | 821 | 826 | 193.2 |
| C | 0 | 10 | 133251 | 685.57 | 821 | 826 | 193.2 |
| C | 14 | 238 | 132617 | 682.29 | 821 | 826 | 193.2 |
| D | 8 | 195 | 1785191 | 9235.29 | 812 | 791 | 193.2 |
| D | 11 | 164 | 917710 | 4745.58 | 812 | 791 | 193.2 |
| D | 12 | 3 | 589358 | 3046.17 | 812 | 791 | 193.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

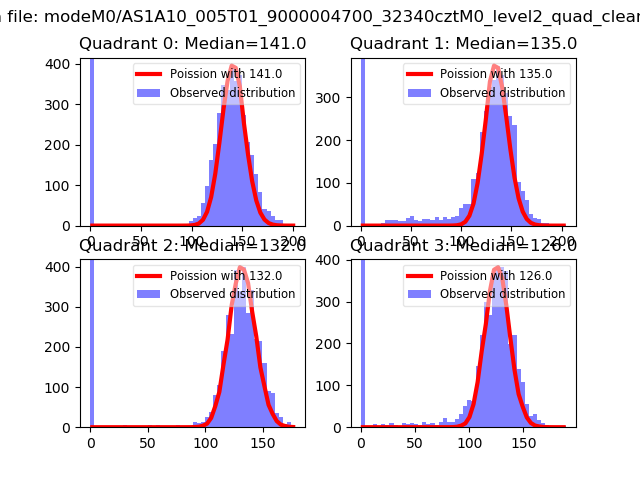

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

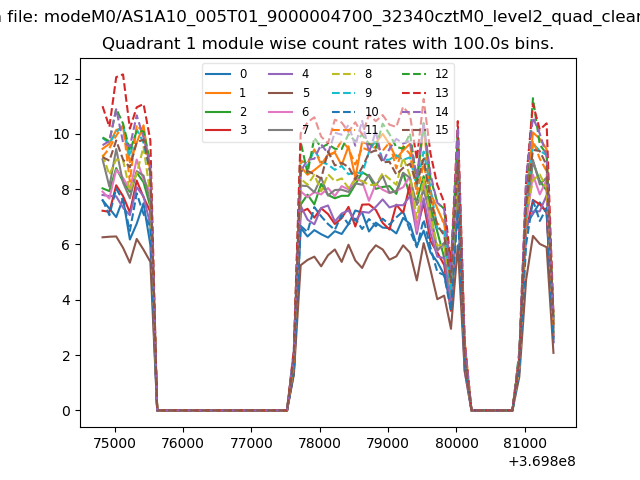

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

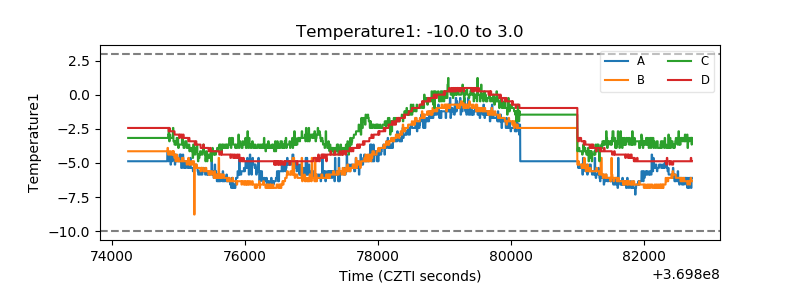

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

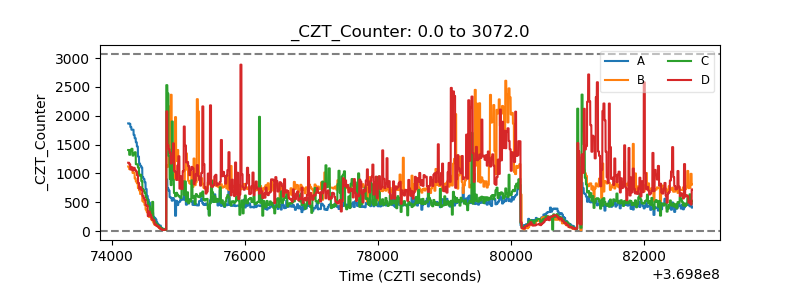

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

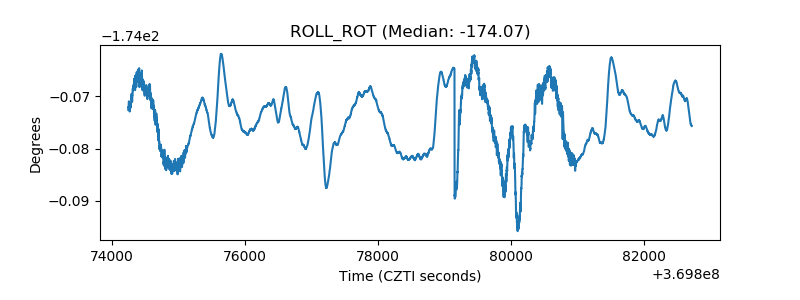

| _ROLL_ROT |  |

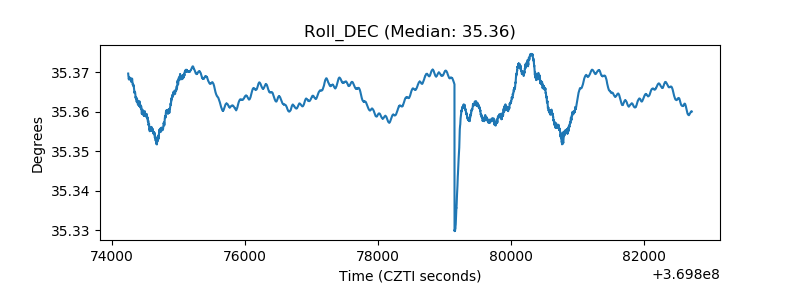

| _Roll_DEC |  |
| _Roll_RA |  |

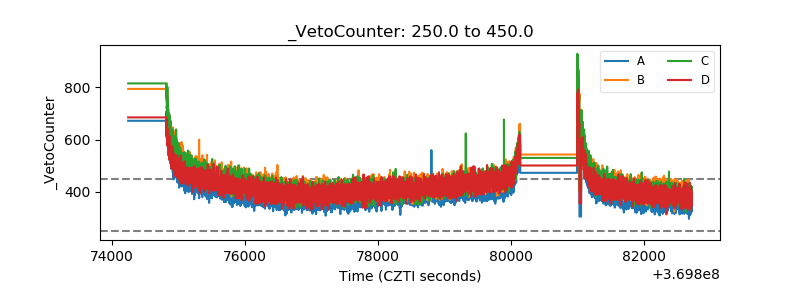

| Veto Counter |  |
