| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32343cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32343cztM0_level2_quad_clean.evt |
| Size (bytes) | 725,872,320 | 82,903,680 |
| Size | 692.2 MB | 79.1 MB |
| Events in quadrant A | 3,620,257 | 523,463 |
| Events in quadrant B | 6,608,957 | 502,810 |
| Events in quadrant C | 3,856,008 | 498,333 |
| Events in quadrant D | 7,379,903 | 452,114 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15788 | 3 |
| B | 0 | 25170 | 22 |
| C | 0 | 16136 | 8 |
| D | 0 | 27363 | 9 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7673 | 189 | 2.463183% |
| B | 7666 | 495 | 6.457083% |
| C | 7669 | 264 | 3.442431% |
| D | 7672 | 751 | 9.788843% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7943 | 7674 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7943 | 7671 | 165 | 165 | 2.08% | 2.15% |  |
| C | 7943 | 7672 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7943 | 7674 | 554 | 554 | 6.97% | 7.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 16355 | 81.72 | 932 | 912 | 189.0 |
| A | 13 | 254 | 14337 | 71.04 | 932 | 912 | 189.0 |
| A | 3 | 137 | 9746 | 46.75 | 932 | 912 | 189.0 |
| B | 6 | 159 | 2137950 | 12028.29 | 913 | 889 | 177.7 |
| B | 5 | 172 | 483994 | 2719.12 | 913 | 889 | 177.7 |
| B | 10 | 245 | 212764 | 1192.52 | 913 | 889 | 177.7 |
| C | 14 | 238 | 155628 | 737.68 | 893 | 893 | 209.8 |
| C | 3 | 233 | 65992 | 310.35 | 893 | 893 | 209.8 |
| C | 14 | 67 | 55621 | 260.91 | 893 | 893 | 209.8 |
| D | 8 | 195 | 1893599 | 9031.18 | 878 | 854 | 209.6 |
| D | 12 | 233 | 784337 | 3738.37 | 878 | 854 | 209.6 |
| D | 13 | 249 | 625569 | 2980.81 | 878 | 854 | 209.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

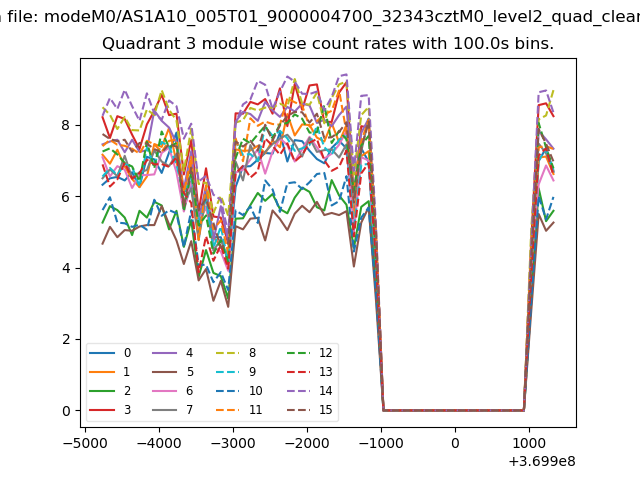

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

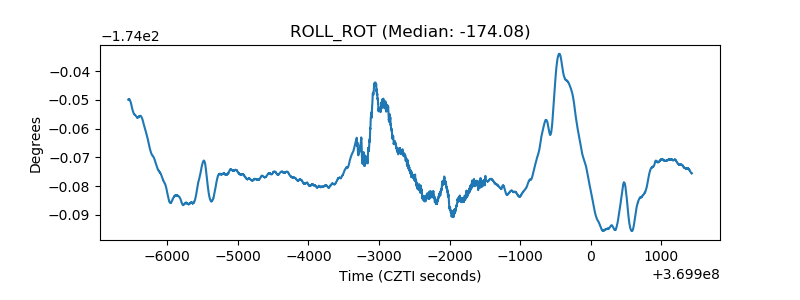

| _ROLL_ROT |  |
| _Roll_DEC |  |

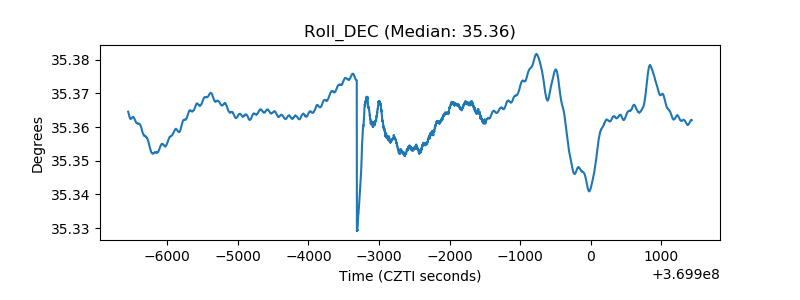

| _Roll_RA |  |
| Veto Counter |  |
