| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32346cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32346cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,628,380,800 | 227,888,640 |
| Size | 1.5 GB | 217.3 MB |
| Events in quadrant A | 8,234,960 | 1,505,983 |
| Events in quadrant B | 15,501,254 | 1,419,056 |
| Events in quadrant C | 8,932,061 | 1,424,723 |
| Events in quadrant D | 15,465,418 | 1,341,377 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36007 | 4 |
| B | 0 | 58825 | 3 |
| C | 0 | 37286 | 3 |
| D | 0 | 58235 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 356 | 0 |
| B | 0 | 356 | 0 |
| C | 0 | 356 | 0 |
| D | 0 | 356 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17557 | 236 | 1.344193% |
| B | 17557 | 1162 | 6.618443% |
| C | 17557 | 513 | 2.921911% |
| D | 17557 | 1402 | 7.985419% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

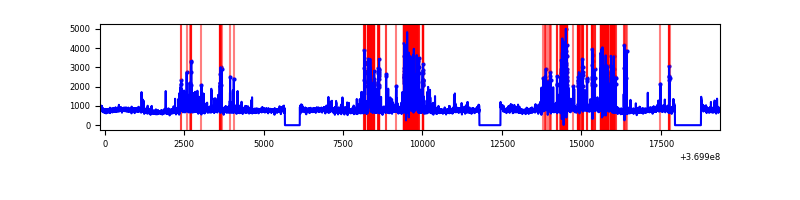

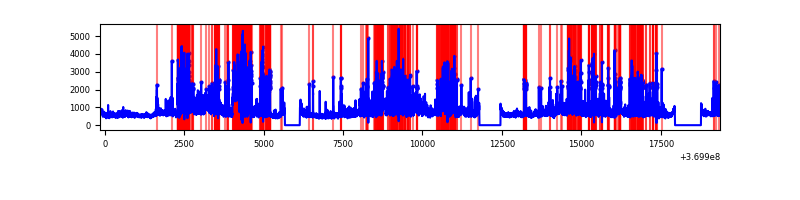

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19512 | 17560 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19512 | 17560 | 573 | 573 | 2.94% | 3.26% |  |
| C | 19512 | 17560 | 32 | 32 | 0.16% | 0.18% |  |
| D | 19512 | 17560 | 1088 | 1088 | 5.58% | 6.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 34324 | 76.6 | 2111 | 2066 | 421.1 |
| A | 13 | 6 | 27264 | 59.84 | 2111 | 2066 | 421.1 |
| A | 12 | 189 | 26191 | 57.29 | 2111 | 2066 | 421.1 |
| B | 6 | 159 | 4837304 | 12364.34 | 2043 | 1987 | 391.1 |
| B | 5 | 172 | 1888378 | 4823.67 | 2043 | 1987 | 391.1 |
| B | 0 | 190 | 405792 | 1032.57 | 2043 | 1987 | 391.1 |
| C | 14 | 238 | 390969 | 822.39 | 2005 | 2015 | 473.0 |
| C | 3 | 233 | 259390 | 544.19 | 2005 | 2015 | 473.0 |
| C | 0 | 10 | 147099 | 306.76 | 2005 | 2015 | 473.0 |
| D | 8 | 195 | 3346941 | 7018.19 | 1991 | 1935 | 476.6 |
| D | 13 | 249 | 2221020 | 4655.88 | 1991 | 1935 | 476.6 |
| D | 12 | 233 | 787935 | 1649.11 | 1991 | 1935 | 476.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

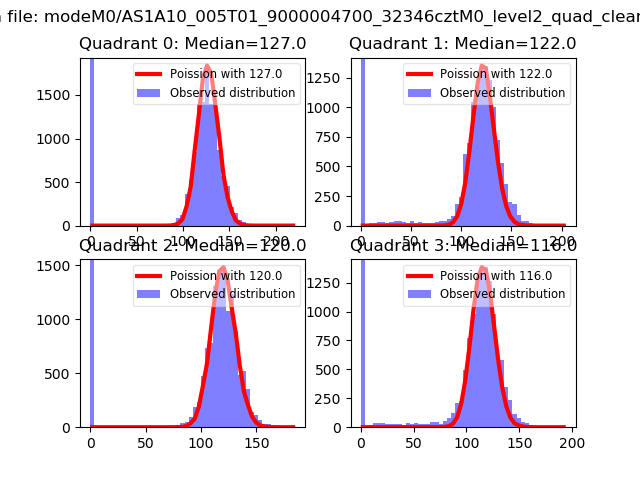

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

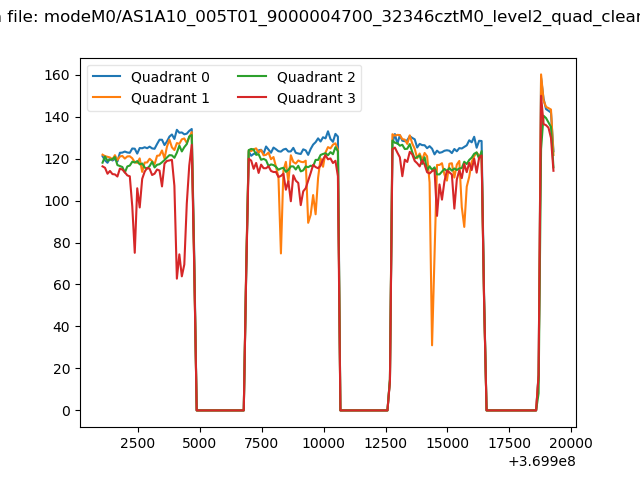

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

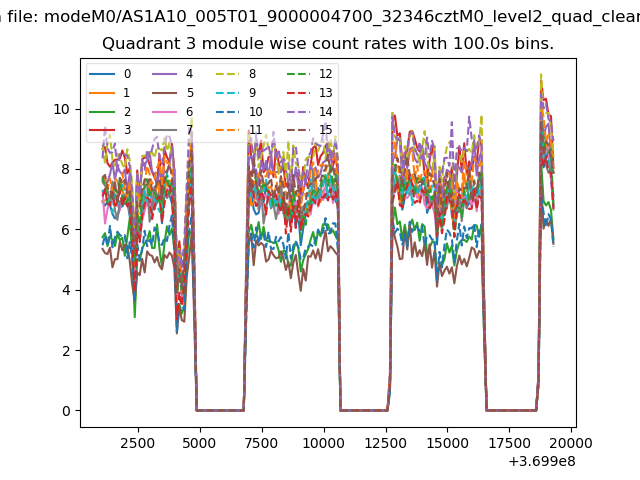

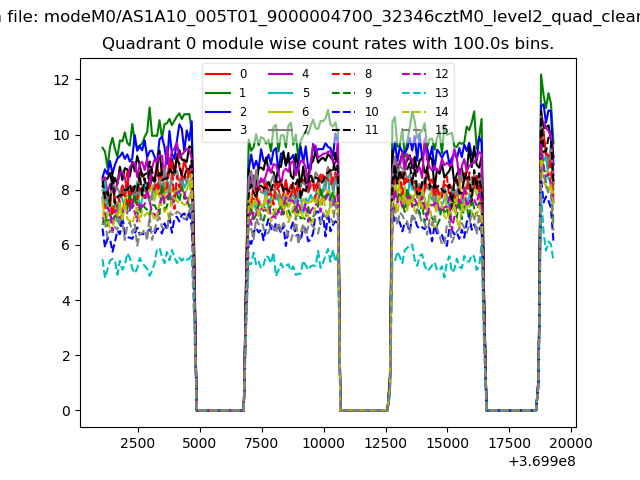

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

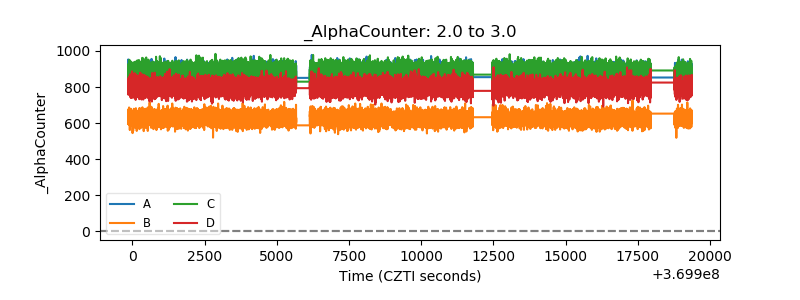

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

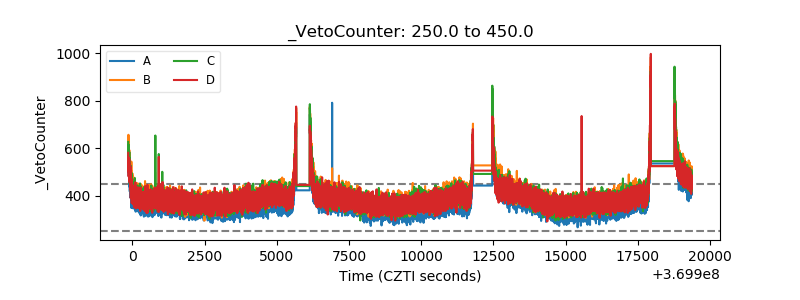

| Veto Counter |  |
