| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004702_32362cztM0_level2.evt | modeM0/AS1A09_131T01_9000004702_32362cztM0_level2_quad_clean.evt |
| Size (bytes) | 685,713,600 | 117,351,360 |
| Size | 653.9 MB | 111.9 MB |
| Events in quadrant A | 2,970,874 | 836,634 |
| Events in quadrant B | 7,374,419 | 771,168 |
| Events in quadrant C | 3,983,198 | 765,303 |
| Events in quadrant D | 6,027,377 | 755,068 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12810 | 2 |
| B | 0 | 26025 | 1 |
| C | 0 | 15628 | 1 |
| D | 0 | 22244 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6096 | 43 | 0.705381% |
| B | 6096 | 1079 | 17.700131% |
| C | 6096 | 494 | 8.103675% |
| D | 6096 | 421 | 6.906168% |

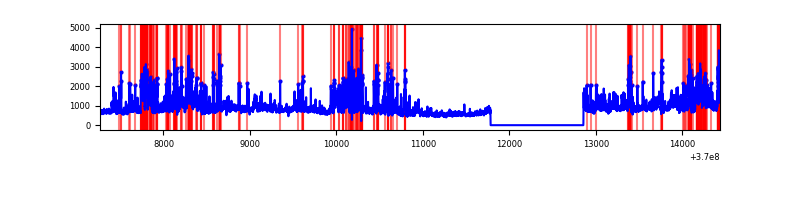

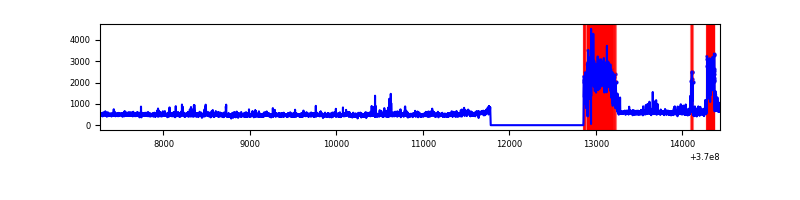

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7171 | 6097 | 7 | 7 | 0.10% | 0.11% |  |
| B | 7171 | 6097 | 652 | 652 | 9.09% | 10.69% |  |
| C | 7171 | 6097 | 307 | 307 | 4.28% | 5.04% |  |
| D | 7171 | 6097 | 330 | 330 | 4.60% | 5.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 30575 | 199.85 | 752 | 738 | 149.3 |
| A | 4 | 208 | 17690 | 113.54 | 752 | 738 | 149.3 |
| A | 13 | 6 | 17595 | 112.91 | 752 | 738 | 149.3 |
| B | 10 | 245 | 1980345 | 14847.93 | 703 | 686 | 133.3 |
| B | 6 | 159 | 1699651 | 12742.65 | 703 | 686 | 133.3 |
| B | 5 | 172 | 593374 | 4445.3 | 703 | 686 | 133.3 |
| C | 0 | 10 | 851005 | 5325.27 | 691 | 696 | 159.7 |
| C | 3 | 233 | 125905 | 784.15 | 691 | 696 | 159.7 |
| C | 14 | 238 | 124958 | 778.22 | 691 | 696 | 159.7 |
| D | 8 | 195 | 1284781 | 7519.08 | 717 | 697 | 170.8 |
| D | 12 | 6 | 712402 | 4167.46 | 717 | 697 | 170.8 |
| D | 12 | 3 | 335527 | 1960.63 | 717 | 697 | 170.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

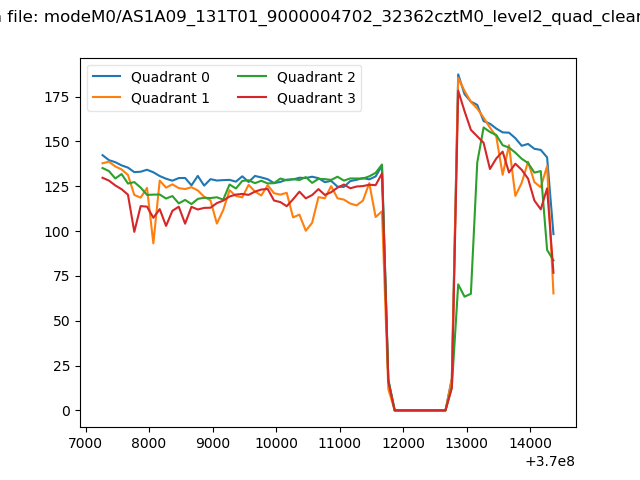

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

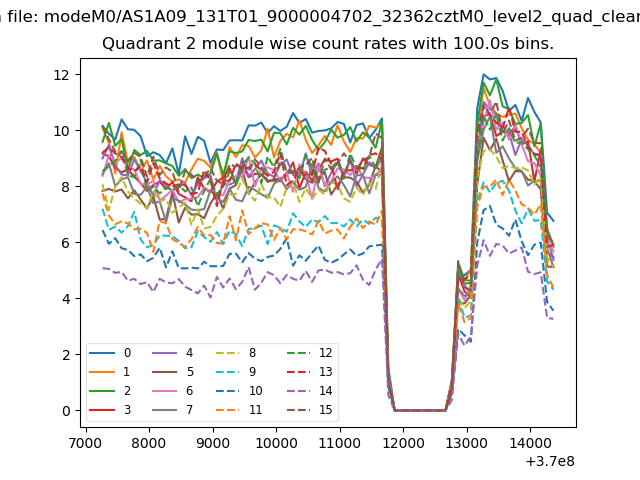

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

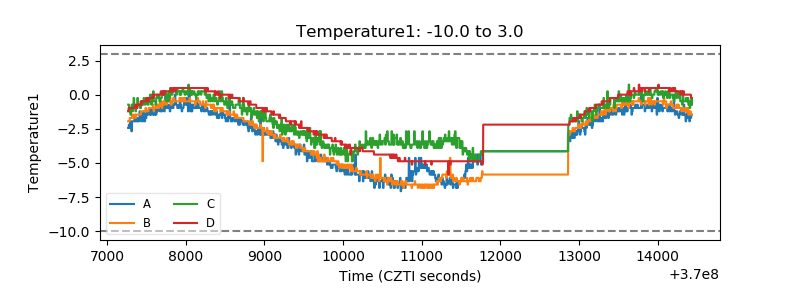

| Temperature 1 |  |

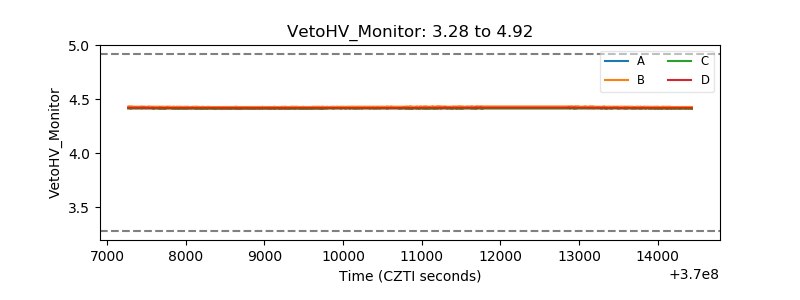

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

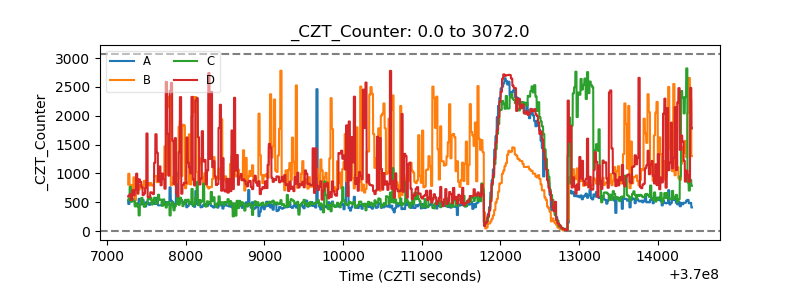

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

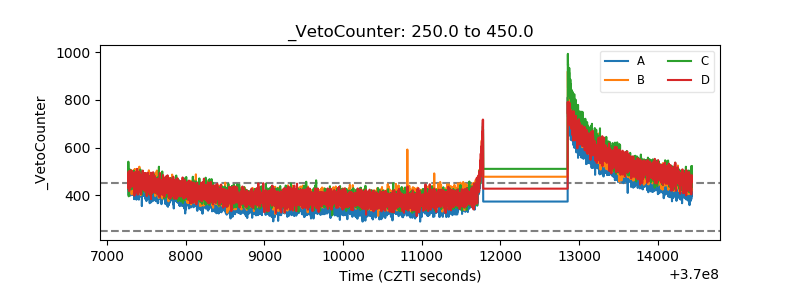

| Veto Counter |  |
