| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004702_32366cztM0_level2.evt | modeM0/AS1A09_131T01_9000004702_32366cztM0_level2_quad_clean.evt |
| Size (bytes) | 788,091,840 | 124,473,600 |
| Size | 751.6 MB | 118.7 MB |
| Events in quadrant A | 3,028,011 | 909,158 |
| Events in quadrant B | 5,811,370 | 885,447 |
| Events in quadrant C | 8,194,024 | 749,346 |
| Events in quadrant D | 6,439,183 | 814,924 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12761 | 2 |
| B | 0 | 21565 | 1 |
| C | 0 | 28475 | 1 |
| D | 0 | 23264 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5860 | 64 | 1.092150% |
| B | 5860 | 494 | 8.430034% |
| C | 5860 | 2197 | 37.491468% |
| D | 5860 | 714 | 12.184300% |

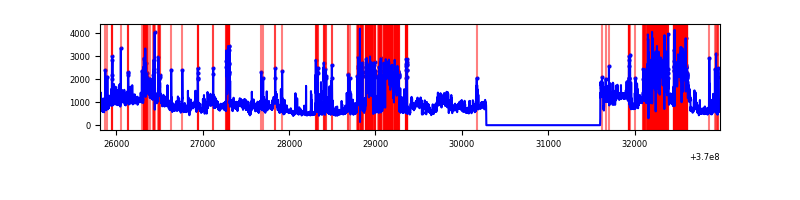

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7180 | 5861 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7180 | 5861 | 213 | 213 | 2.97% | 3.63% |  |
| C | 7180 | 5861 | 1629 | 1629 | 22.69% | 27.79% |  |
| D | 7180 | 5861 | 642 | 642 | 8.94% | 10.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12193 | 74.72 | 778 | 766 | 152.9 |
| A | 15 | 174 | 10790 | 65.54 | 778 | 766 | 152.9 |
| A | 13 | 6 | 10506 | 63.69 | 778 | 766 | 152.9 |
| B | 6 | 159 | 1835610 | 13144.69 | 754 | 735 | 139.6 |
| B | 5 | 172 | 675049 | 4830.65 | 754 | 735 | 139.6 |
| B | 10 | 245 | 110538 | 786.6 | 754 | 735 | 139.6 |
| C | 3 | 233 | 5274741 | 34858.22 | 659 | 663 | 151.3 |
| C | 14 | 238 | 108815 | 714.81 | 659 | 663 | 151.3 |
| C | 0 | 10 | 95952 | 629.8 | 659 | 663 | 151.3 |
| D | 8 | 195 | 1406110 | 8134.91 | 728 | 710 | 172.8 |
| D | 15 | 0 | 721980 | 4174.95 | 728 | 710 | 172.8 |
| D | 1 | 47 | 541850 | 3132.29 | 728 | 710 | 172.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

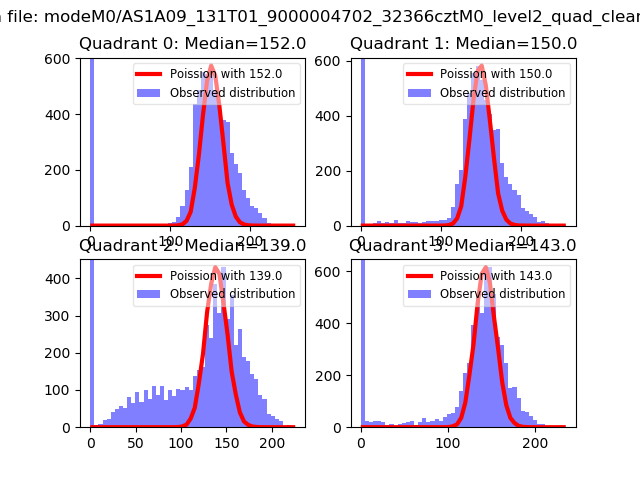

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

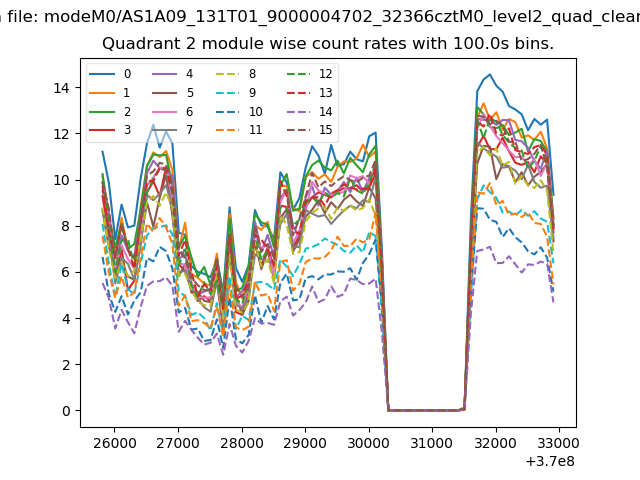

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

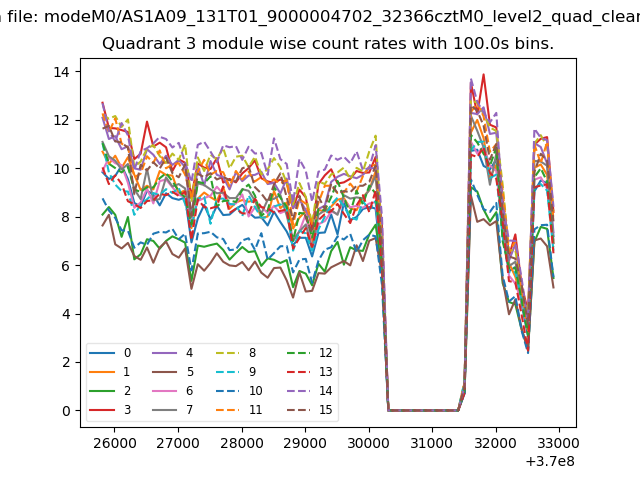

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

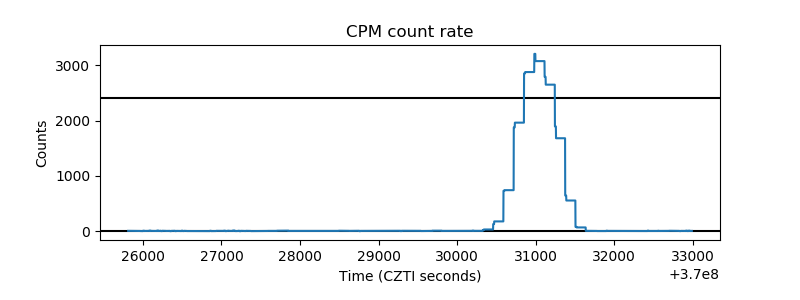

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

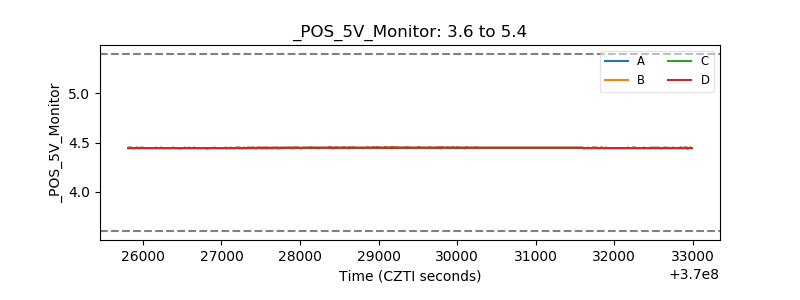

| +5 Volts monitor |  |

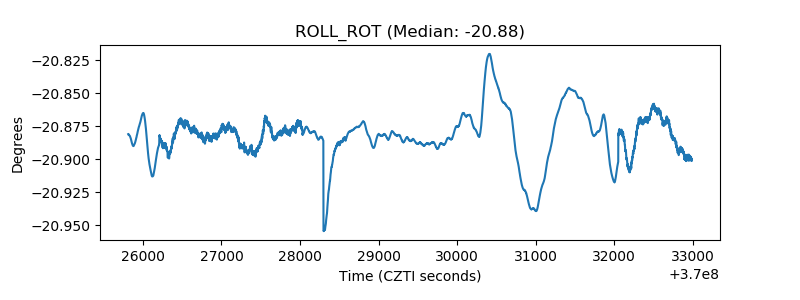

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

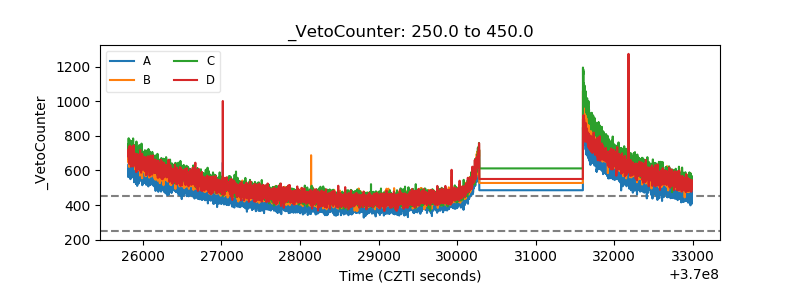

| Veto Counter |  |
