| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004702_32376cztM0_level2.evt | modeM0/AS1A09_131T01_9000004702_32376cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,606,080 | 125,136,000 |
| Size | 556.6 MB | 119.3 MB |
| Events in quadrant A | 3,070,269 | 863,372 |
| Events in quadrant B | 5,441,344 | 848,639 |
| Events in quadrant C | 3,619,093 | 829,960 |
| Events in quadrant D | 5,109,536 | 800,062 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13190 | 2 |
| B | 0 | 20773 | 1 |
| C | 0 | 14775 | 1 |
| D | 0 | 19680 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6425 | 51 | 0.793774% |
| B | 6425 | 215 | 3.346304% |
| C | 6425 | 111 | 1.727626% |
| D | 6425 | 193 | 3.003891% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7425 | 6426 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7425 | 6426 | 101 | 101 | 1.36% | 1.57% |  |
| C | 7425 | 6426 | 8 | 8 | 0.11% | 0.12% |  |
| D | 7425 | 6426 | 112 | 112 | 1.51% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 27346 | 168.34 | 788 | 773 | 157.8 |
| A | 13 | 254 | 11433 | 67.53 | 788 | 773 | 157.8 |
| A | 3 | 137 | 7708 | 43.93 | 788 | 773 | 157.8 |
| B | 6 | 159 | 1761357 | 12084.62 | 768 | 748 | 145.7 |
| B | 5 | 172 | 344370 | 2358.58 | 768 | 748 | 145.7 |
| B | 0 | 190 | 153373 | 1047.6 | 768 | 748 | 145.7 |
| C | 3 | 233 | 338000 | 1939.57 | 749 | 753 | 173.9 |
| C | 14 | 67 | 163045 | 933.37 | 749 | 753 | 173.9 |
| C | 14 | 238 | 123545 | 706.2 | 749 | 753 | 173.9 |
| D | 8 | 195 | 1485016 | 8298.55 | 754 | 734 | 178.9 |
| D | 12 | 233 | 218410 | 1217.02 | 754 | 734 | 178.9 |
| D | 12 | 1 | 142271 | 791.33 | 754 | 734 | 178.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

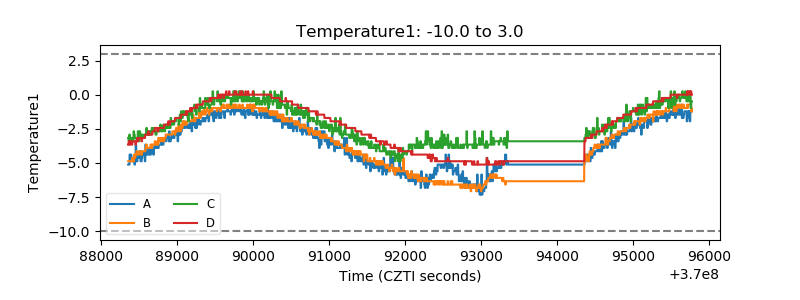

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

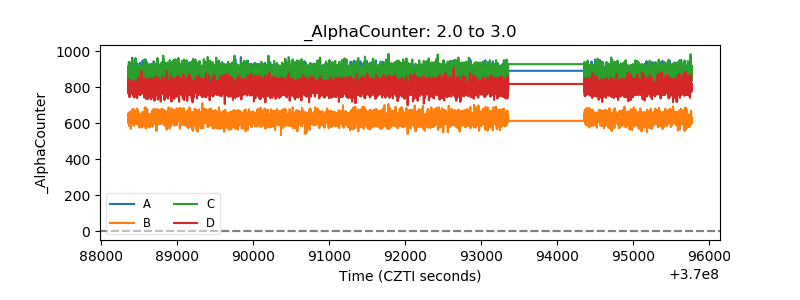

| Alpha Counter |  |
| _CPM_Rate |  |

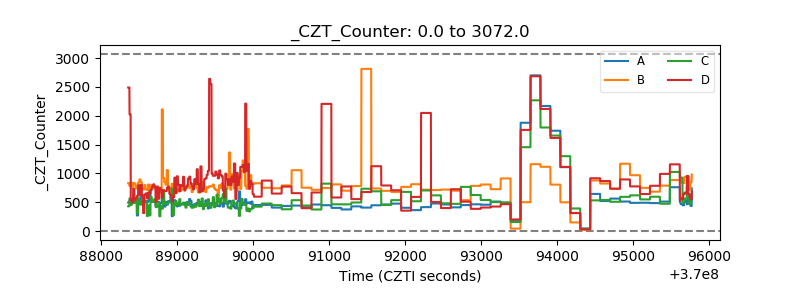

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

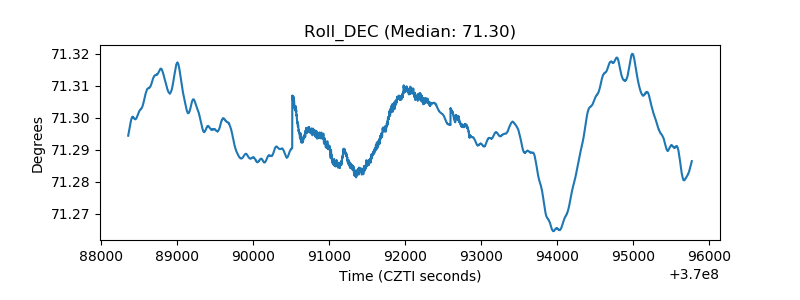

| _Roll_DEC |  |

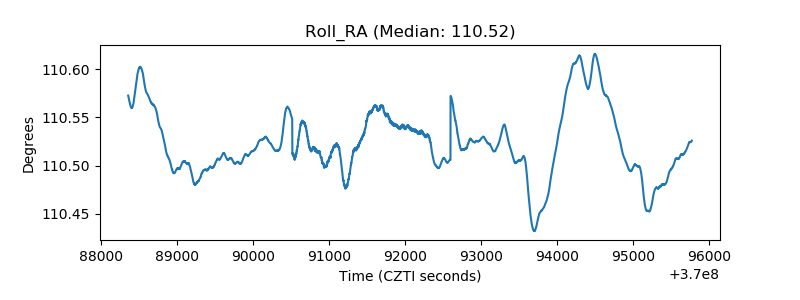

| _Roll_RA |  |

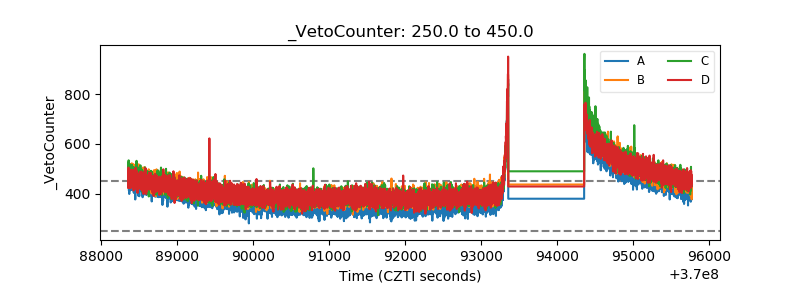

| Veto Counter |  |
