| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32383cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32383cztM0_level2_quad_clean.evt |
| Size (bytes) | 669,695,040 | 81,699,840 |
| Size | 638.7 MB | 77.9 MB |
| Events in quadrant A | 3,192,300 | 529,780 |
| Events in quadrant B | 6,842,150 | 495,900 |
| Events in quadrant C | 4,708,173 | 500,929 |
| Events in quadrant D | 5,098,355 | 491,458 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13512 | 2 |
| B | 0 | 24938 | 1 |
| C | 0 | 17996 | 1 |
| D | 0 | 19468 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6531 | 16 | 0.244985% |
| B | 6531 | 628 | 9.615679% |
| C | 6531 | 618 | 9.462563% |
| D | 6531 | 197 | 3.016383% |

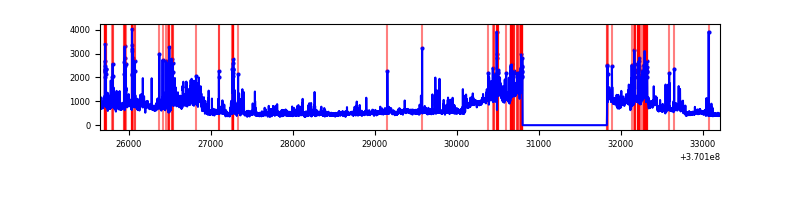

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7561 | 6532 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7561 | 6532 | 262 | 262 | 3.47% | 4.01% |  |
| C | 7561 | 6532 | 398 | 398 | 5.26% | 6.09% |  |
| D | 7561 | 6532 | 143 | 143 | 1.89% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 35132 | 210.96 | 815 | 799 | 162.7 |
| A | 13 | 6 | 12624 | 72.66 | 815 | 799 | 162.7 |
| A | 13 | 254 | 11873 | 68.04 | 815 | 799 | 162.7 |
| B | 6 | 159 | 1791142 | 12072.89 | 783 | 766 | 148.3 |
| B | 4 | 80 | 1316869 | 8874.77 | 783 | 766 | 148.3 |
| B | 5 | 172 | 458840 | 3088.89 | 783 | 766 | 148.3 |
| C | 3 | 233 | 1509253 | 8527.78 | 755 | 759 | 176.9 |
| C | 14 | 238 | 144568 | 812.98 | 755 | 759 | 176.9 |
| C | 14 | 254 | 32805 | 181.16 | 755 | 759 | 176.9 |
| D | 8 | 195 | 1239755 | 6675.81 | 778 | 758 | 185.6 |
| D | 12 | 233 | 202256 | 1085.68 | 778 | 758 | 185.6 |
| D | 15 | 0 | 200557 | 1076.53 | 778 | 758 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

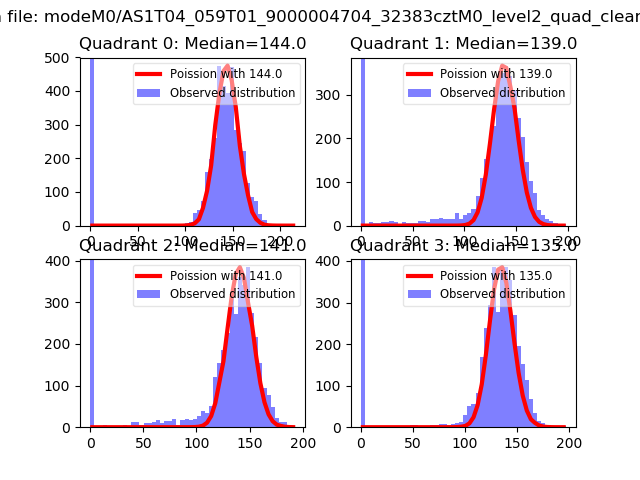

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

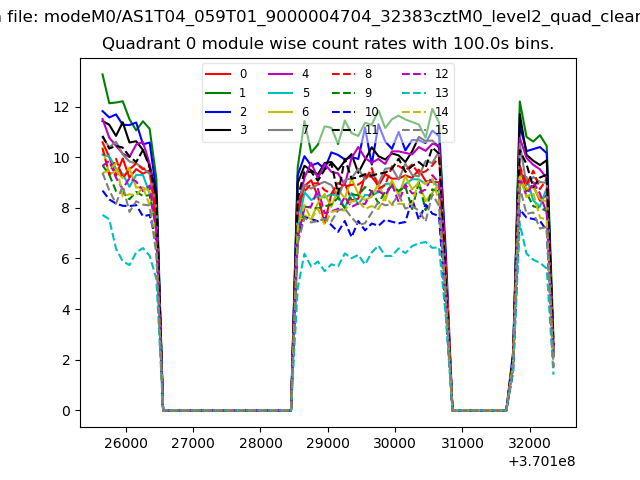

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

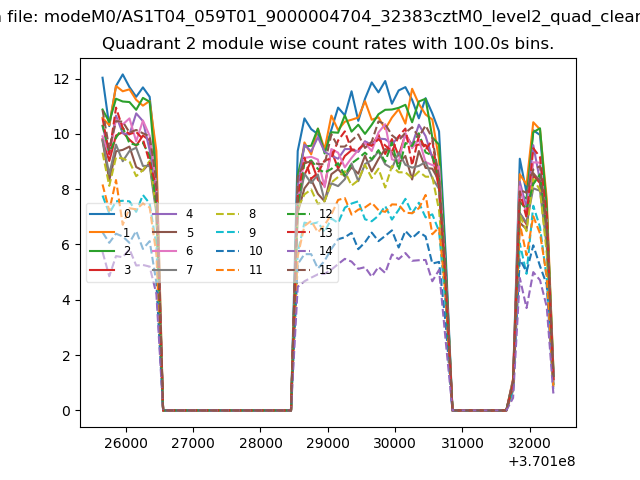

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

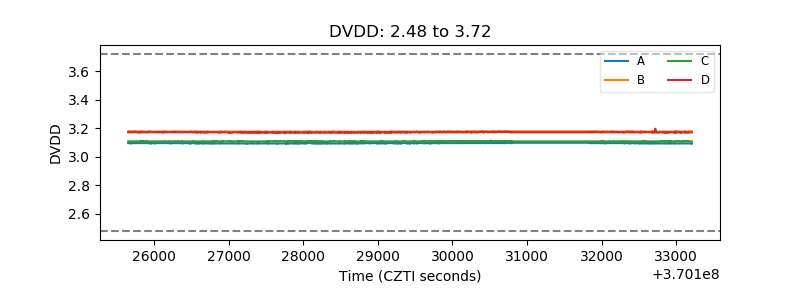

| D_VDD |  |

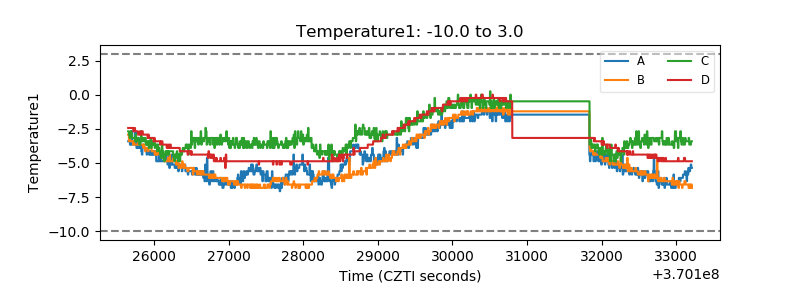

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

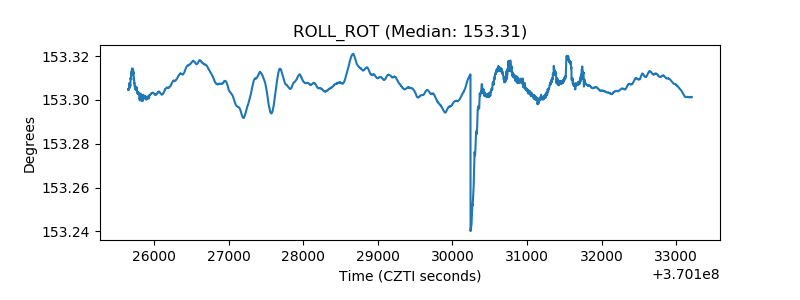

| _ROLL_ROT |  |
| _Roll_DEC |  |

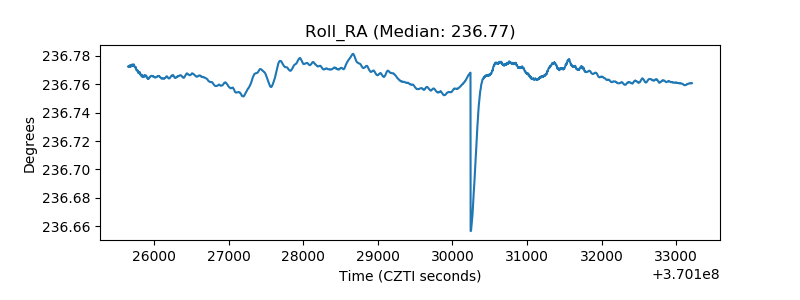

| _Roll_RA |  |
| Veto Counter |  |
