| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32385cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32385cztM0_level2_quad_clean.evt |
| Size (bytes) | 954,624,960 | 72,849,600 |
| Size | 910.4 MB | 69.5 MB |
| Events in quadrant A | 3,458,869 | 494,125 |
| Events in quadrant B | 9,754,597 | 420,407 |
| Events in quadrant C | 8,564,902 | 362,950 |
| Events in quadrant D | 6,643,357 | 421,298 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15133 | 2 |
| B | 0 | 33984 | 1 |
| C | 0 | 30256 | 1 |
| D | 0 | 24816 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7261 | 185 | 2.547858% |
| B | 7261 | 1953 | 26.897122% |
| C | 7261 | 2420 | 33.328743% |
| D | 7261 | 1140 | 15.700317% |

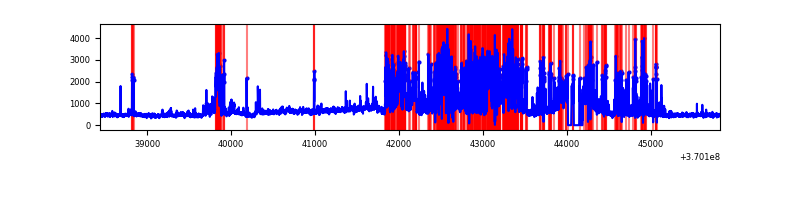

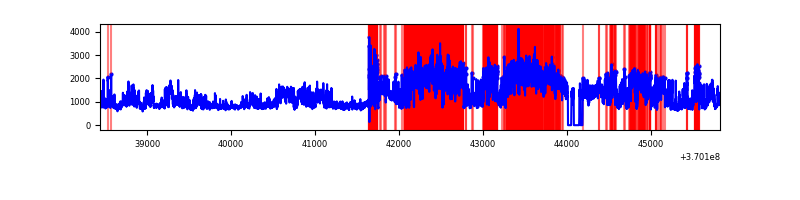

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7391 | 7264 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7391 | 7264 | 1119 | 1119 | 15.14% | 15.40% |  |
| C | 7391 | 7264 | 1405 | 1405 | 19.01% | 19.34% |  |
| D | 7391 | 7264 | 707 | 707 | 9.57% | 9.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12722 | 64.69 | 895 | 875 | 183.1 |
| A | 3 | 137 | 9318 | 46.1 | 895 | 875 | 183.1 |
| A | 0 | 226 | 7668 | 37.09 | 895 | 875 | 183.1 |
| B | 4 | 80 | 4249676 | 27096.12 | 811 | 791 | 156.8 |
| B | 6 | 159 | 1922355 | 12254.26 | 811 | 791 | 156.8 |
| B | 10 | 245 | 232802 | 1479.59 | 811 | 791 | 156.8 |
| C | 3 | 233 | 5308280 | 31428.02 | 718 | 721 | 168.9 |
| C | 14 | 238 | 226646 | 1337.79 | 718 | 721 | 168.9 |
| C | 14 | 254 | 143769 | 847.04 | 718 | 721 | 168.9 |
| D | 12 | 218 | 1616650 | 8277.71 | 807 | 784 | 195.2 |
| D | 8 | 195 | 711516 | 3640.92 | 807 | 784 | 195.2 |
| D | 12 | 233 | 669768 | 3427.05 | 807 | 784 | 195.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

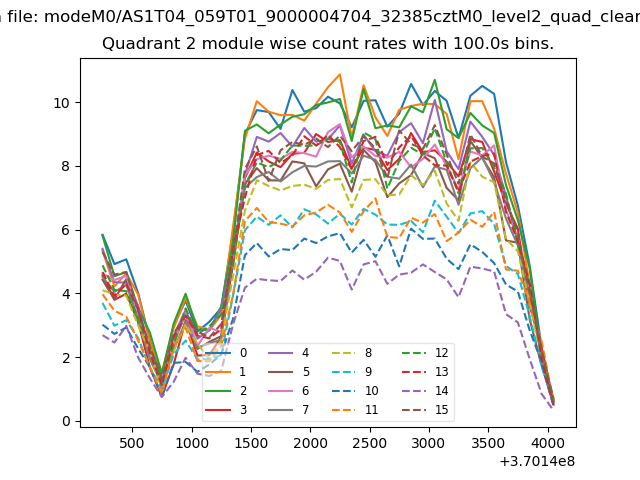

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

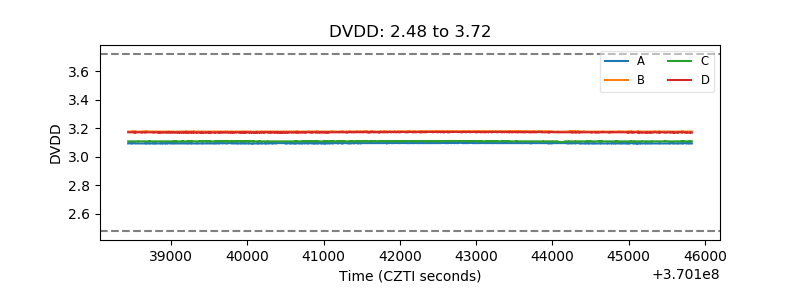

| D_VDD |  |

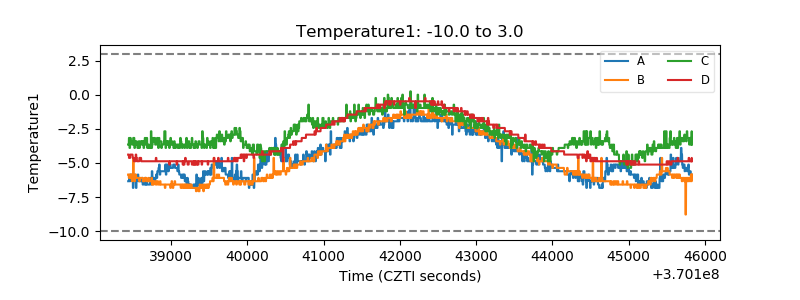

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

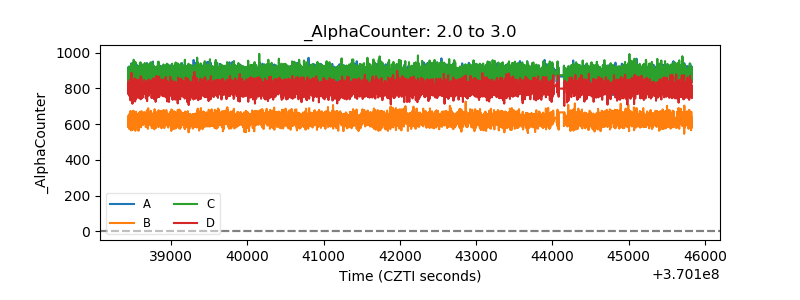

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

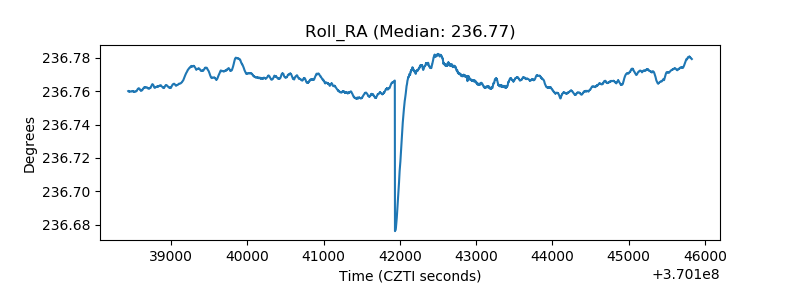

| _Roll_RA |  |
| Veto Counter |  |
