| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32397cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32397cztM0_level2_quad_clean.evt |
| Size (bytes) | 770,783,040 | 82,068,480 |
| Size | 735.1 MB | 78.3 MB |
| Events in quadrant A | 3,136,780 | 562,291 |
| Events in quadrant B | 11,215,769 | 438,487 |
| Events in quadrant C | 4,304,350 | 513,841 |
| Events in quadrant D | 4,253,268 | 522,203 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13319 | 2 |
| B | 0 | 37777 | 1 |
| C | 0 | 16948 | 1 |
| D | 0 | 16788 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6410 | 19 | 0.296412% |
| B | 6410 | 2987 | 46.599064% |
| C | 6410 | 509 | 7.940718% |
| D | 6410 | 148 | 2.308892% |

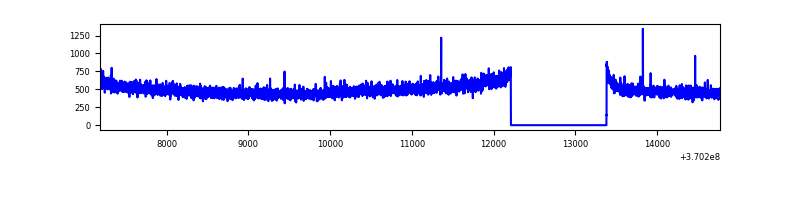

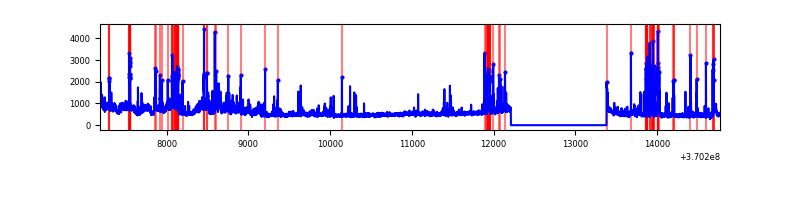

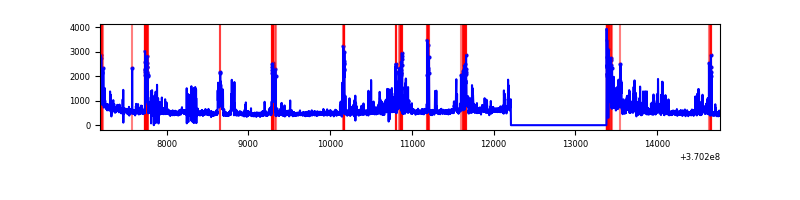

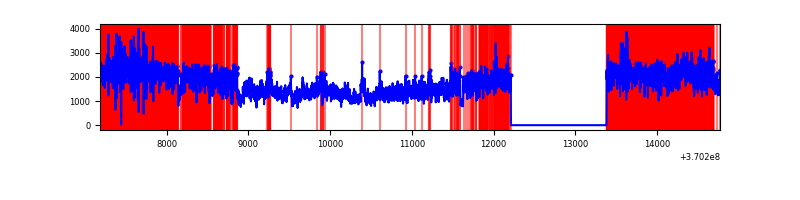

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 6411 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7580 | 6411 | 2195 | 2195 | 28.96% | 34.24% |  |
| C | 7580 | 6410 | 130 | 130 | 1.72% | 2.03% |  |
| D | 7580 | 6411 | 119 | 119 | 1.57% | 1.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 17119 | 101.65 | 804 | 788 | 160.7 |
| A | 15 | 174 | 12649 | 73.83 | 804 | 788 | 160.7 |
| A | 13 | 254 | 11939 | 69.41 | 804 | 788 | 160.7 |
| B | 4 | 80 | 5730064 | 44137.51 | 691 | 674 | 129.8 |
| B | 6 | 159 | 1573375 | 12115.62 | 691 | 674 | 129.8 |
| B | 5 | 172 | 487432 | 3749.84 | 691 | 674 | 129.8 |
| C | 3 | 233 | 695935 | 4023.41 | 738 | 744 | 172.8 |
| C | 0 | 10 | 325808 | 1881.3 | 738 | 744 | 172.8 |
| C | 14 | 238 | 193296 | 1114.39 | 738 | 744 | 172.8 |
| D | 8 | 195 | 610359 | 3374.51 | 760 | 739 | 180.7 |
| D | 1 | 47 | 265277 | 1464.33 | 760 | 739 | 180.7 |
| D | 2 | 250 | 88345 | 484.94 | 760 | 739 | 180.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

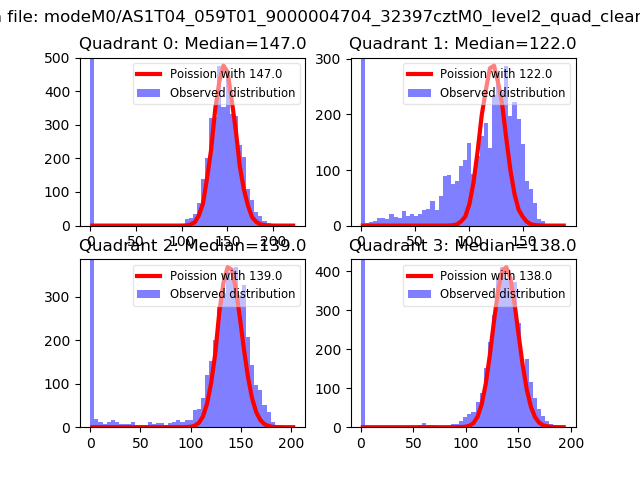

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

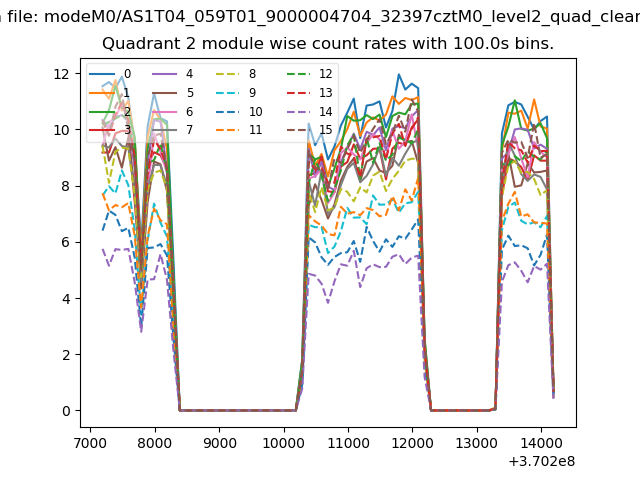

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

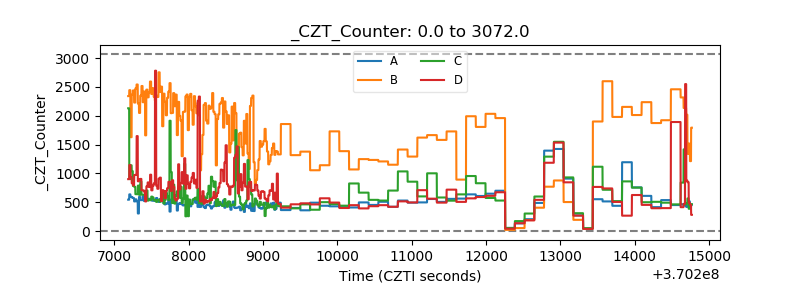

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

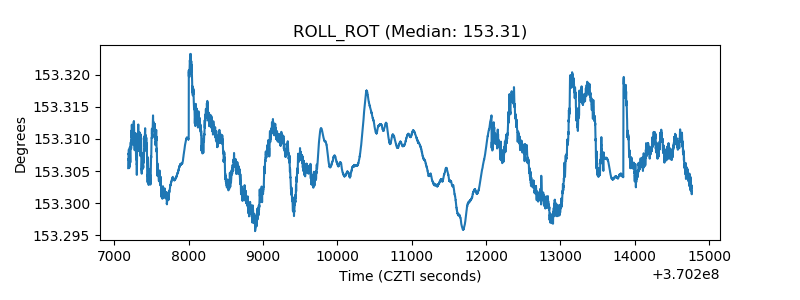

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
