| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32409cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32409cztM0_level2_quad_clean.evt |
| Size (bytes) | 687,723,840 | 76,112,640 |
| Size | 655.9 MB | 72.6 MB |
| Events in quadrant A | 2,850,890 | 552,388 |
| Events in quadrant B | 6,244,010 | 499,237 |
| Events in quadrant C | 6,242,539 | 404,776 |
| Events in quadrant D | 5,120,924 | 464,035 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11823 | 2 |
| B | 0 | 22403 | 1 |
| C | 0 | 22260 | 1 |
| D | 0 | 18799 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5472 | 49 | 0.895468% |
| B | 5472 | 862 | 15.752924% |
| C | 5472 | 1277 | 23.336988% |
| D | 5472 | 648 | 11.842105% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

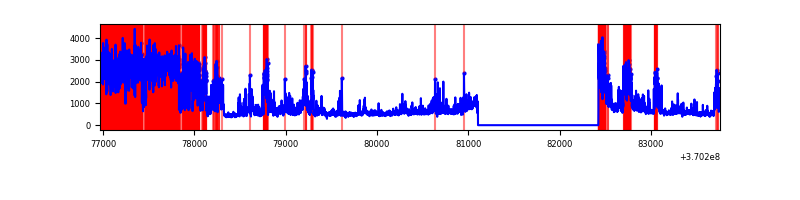

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6792 | 5473 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6792 | 5473 | 552 | 552 | 8.13% | 10.09% |  |
| C | 6792 | 5473 | 1076 | 1076 | 15.84% | 19.66% |  |
| D | 6792 | 5473 | 596 | 596 | 8.78% | 10.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 32247 | 217.77 | 723 | 709 | 144.8 |
| A | 15 | 174 | 12484 | 81.31 | 723 | 709 | 144.8 |
| A | 13 | 254 | 11436 | 74.07 | 723 | 709 | 144.8 |
| B | 6 | 159 | 1577470 | 12332.51 | 678 | 662 | 127.9 |
| B | 5 | 172 | 1008526 | 7882.69 | 678 | 662 | 127.9 |
| B | 4 | 80 | 885424 | 6919.89 | 678 | 662 | 127.9 |
| C | 3 | 233 | 3637271 | 26629.38 | 592 | 596 | 136.6 |
| C | 14 | 238 | 102729 | 747.86 | 592 | 596 | 136.6 |
| C | 0 | 10 | 94160 | 685.12 | 592 | 596 | 136.6 |
| D | 1 | 47 | 1143281 | 7434.01 | 651 | 634 | 153.7 |
| D | 8 | 195 | 482421 | 3134.48 | 651 | 634 | 153.7 |
| D | 1 | 52 | 482310 | 3133.76 | 651 | 634 | 153.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

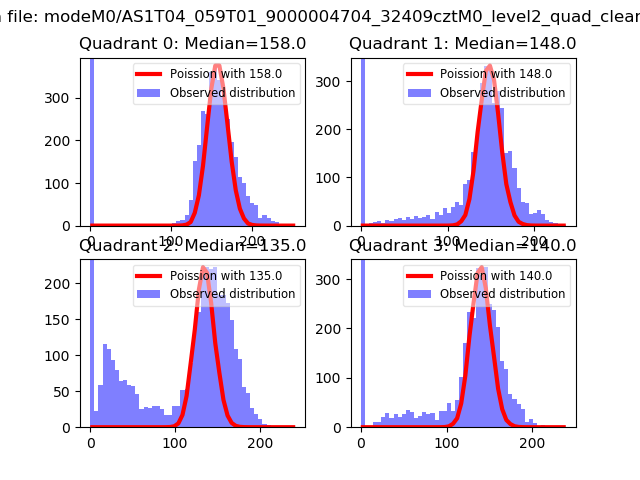

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

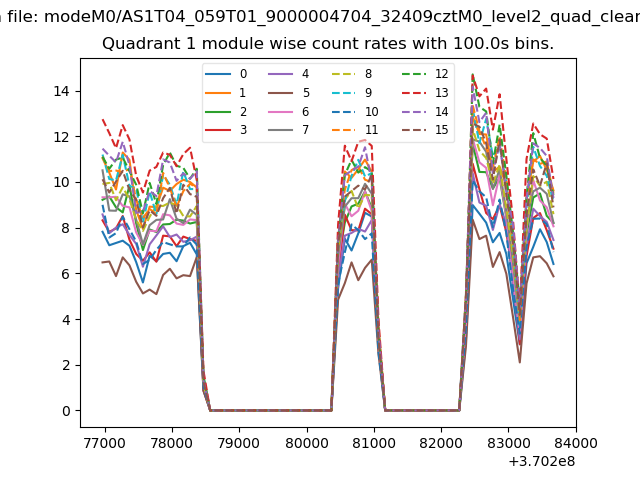

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

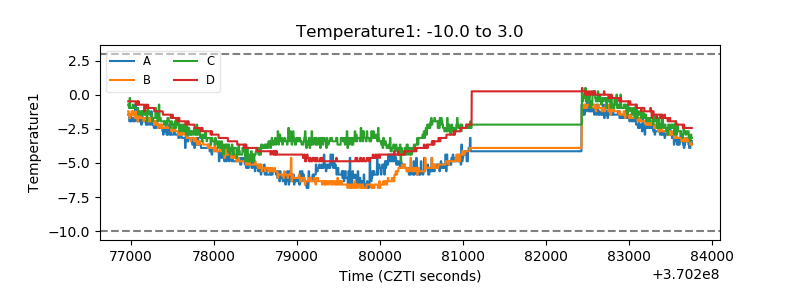

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

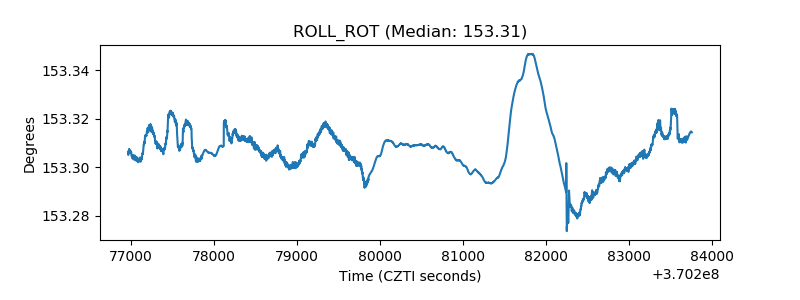

| _ROLL_ROT |  |

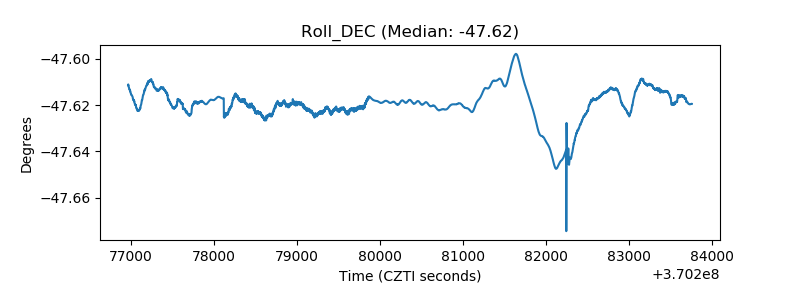

| _Roll_DEC |  |

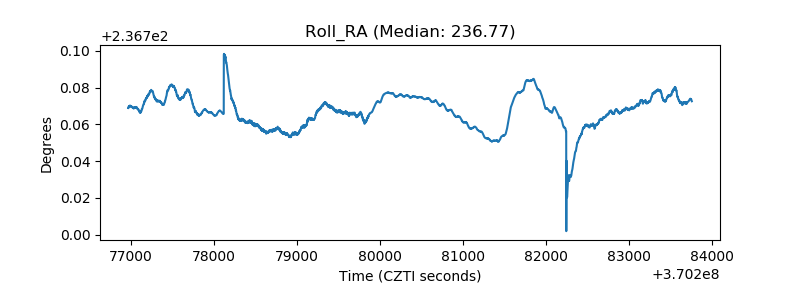

| _Roll_RA |  |

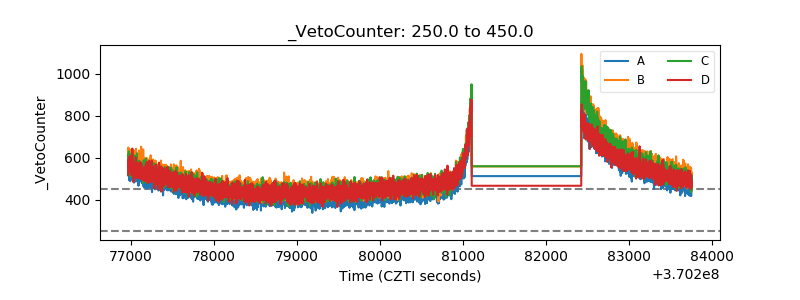

| Veto Counter |  |
