| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32413cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32413cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,003,273,920 | 63,993,600 |
| Size | 956.8 MB | 61.0 MB |
| Events in quadrant A | 3,049,194 | 464,133 |
| Events in quadrant B | 6,639,069 | 441,269 |
| Events in quadrant C | 15,652,375 | 144,761 |
| Events in quadrant D | 4,606,689 | 433,081 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13275 | 2 |
| B | 0 | 24188 | 1 |
| C | 0 | 50968 | 1 |
| D | 0 | 17976 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6488 | 24 | 0.369914% |
| B | 6488 | 486 | 7.490752% |
| C | 6488 | 5730 | 88.316893% |
| D | 6488 | 385 | 5.934032% |

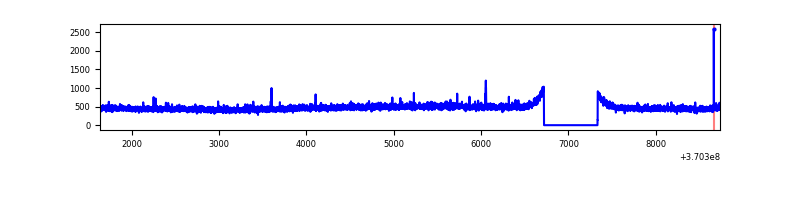

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7103 | 6489 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7103 | 6489 | 233 | 233 | 3.28% | 3.59% |  |
| C | 7103 | 6489 | 5349 | 5349 | 75.31% | 82.43% |  |
| D | 7103 | 6489 | 338 | 338 | 4.76% | 5.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 12751 | 75.21 | 783 | 765 | 159.4 |
| A | 13 | 254 | 12371 | 72.83 | 783 | 765 | 159.4 |
| A | 3 | 137 | 8017 | 45.5 | 783 | 765 | 159.4 |
| B | 6 | 159 | 1787883 | 12444.12 | 754 | 736 | 143.6 |
| B | 4 | 80 | 1337578 | 9308.59 | 754 | 736 | 143.6 |
| B | 5 | 172 | 438103 | 3045.44 | 754 | 736 | 143.6 |
| C | 3 | 233 | 14503017 | 225284.67 | 270 | 270 | 64.4 |
| C | 14 | 238 | 40312 | 622.01 | 270 | 270 | 64.4 |
| C | 0 | 10 | 16401 | 250.58 | 270 | 270 | 64.4 |
| D | 2 | 250 | 421597 | 2435.37 | 732 | 711 | 172.8 |
| D | 8 | 195 | 406824 | 2349.89 | 732 | 711 | 172.8 |
| D | 12 | 218 | 400690 | 2314.4 | 732 | 711 | 172.8 |

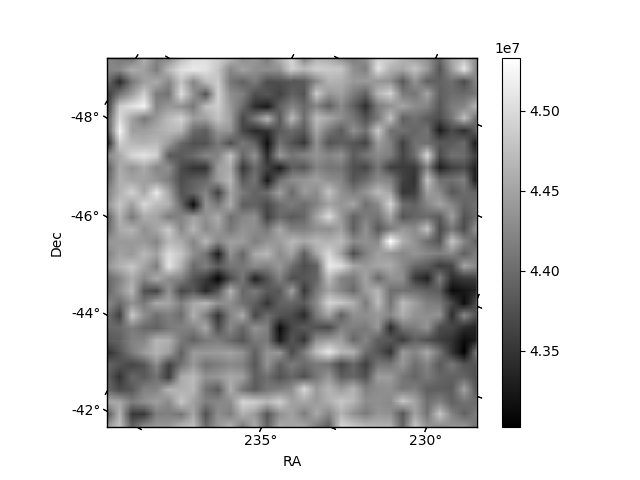

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

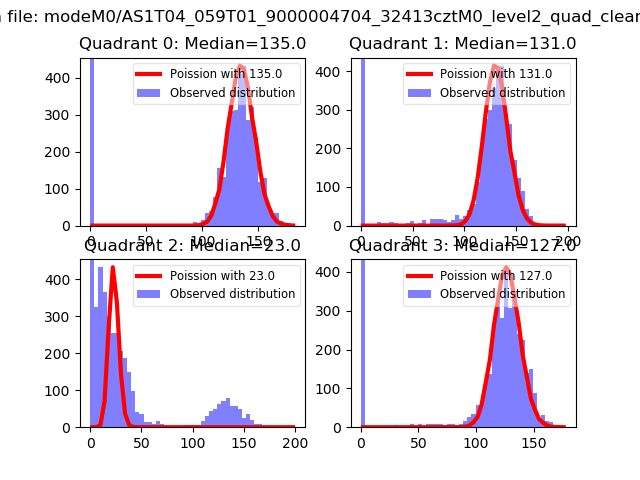

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

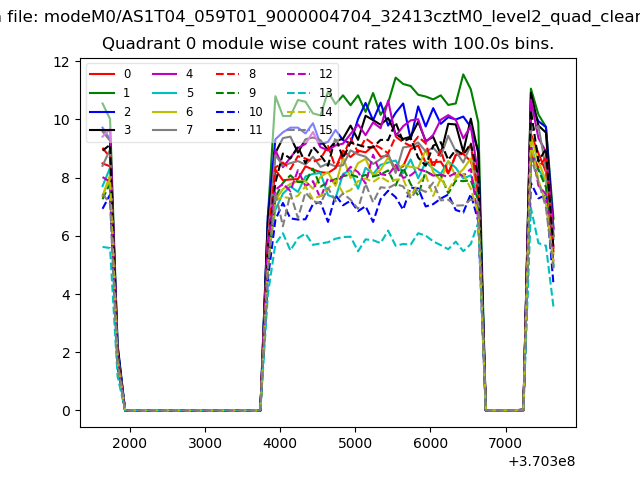

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

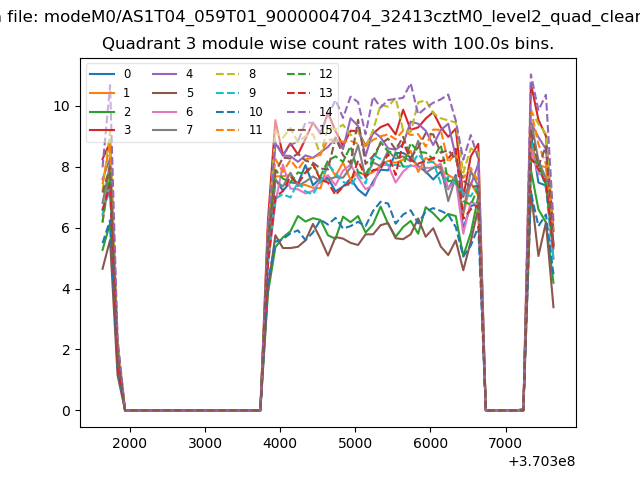

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

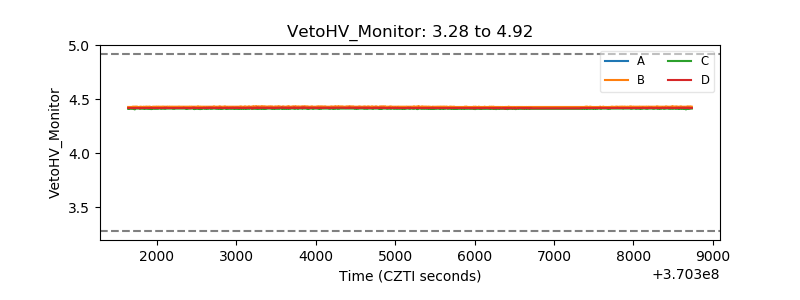

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

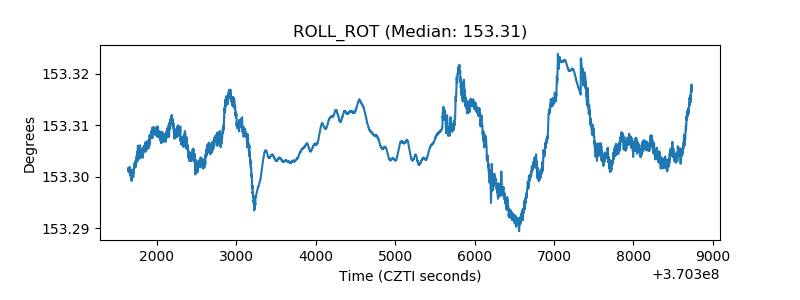

| _ROLL_ROT |  |

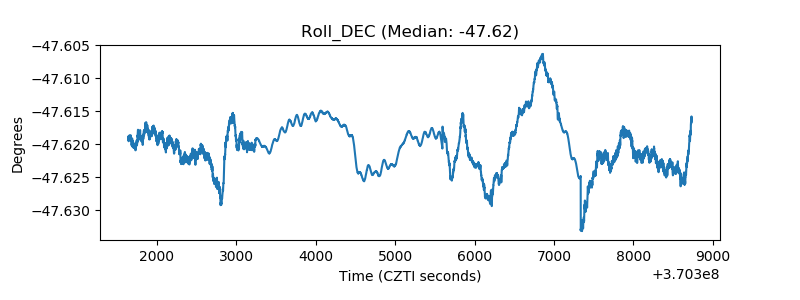

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
