| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32418cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32418cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,157,252,480 | 229,829,760 |
| Size | 2.0 GB | 219.2 MB |
| Events in quadrant A | 8,258,887 | 1,604,553 |
| Events in quadrant B | 14,075,383 | 1,583,583 |
| Events in quadrant C | 31,024,838 | 1,035,200 |
| Events in quadrant D | 10,786,458 | 1,516,842 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35969 | 4 |
| B | 0 | 55729 | 3 |
| C | 0 | 104306 | 3 |
| D | 0 | 43101 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 360 | 0 |
| B | 0 | 360 | 0 |
| C | 0 | 360 | 0 |
| D | 0 | 360 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17661 | 201 | 1.138101% |
| B | 17661 | 558 | 3.159504% |
| C | 17661 | 9859 | 55.823566% |
| D | 17661 | 454 | 2.570636% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19452 | 17665 | 1 | 1 | 0.01% | 0.01% |  |
| B | 19452 | 17665 | 89 | 89 | 0.46% | 0.50% |  |
| C | 19452 | 17664 | 8169 | 8169 | 42.00% | 46.25% |  |
| D | 19452 | 17665 | 262 | 262 | 1.35% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 34182 | 75.49 | 2124 | 2083 | 425.2 |
| A | 15 | 174 | 31095 | 68.23 | 2124 | 2083 | 425.2 |
| A | 13 | 6 | 26110 | 56.5 | 2124 | 2083 | 425.2 |
| B | 6 | 159 | 4759359 | 11930.53 | 2086 | 2034 | 398.8 |
| B | 4 | 80 | 638539 | 1596.24 | 2086 | 2034 | 398.8 |
| B | 0 | 190 | 219120 | 544.41 | 2086 | 2034 | 398.8 |
| C | 3 | 233 | 24868258 | 73928.55 | 1435 | 1443 | 336.4 |
| C | 14 | 238 | 319758 | 946.34 | 1435 | 1443 | 336.4 |
| C | 14 | 254 | 143544 | 422.46 | 1435 | 1443 | 336.4 |
| D | 8 | 195 | 902081 | 1825.17 | 2053 | 1996 | 493.2 |
| D | 12 | 233 | 771993 | 1561.38 | 2053 | 1996 | 493.2 |
| D | 12 | 218 | 395870 | 798.69 | 2053 | 1996 | 493.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

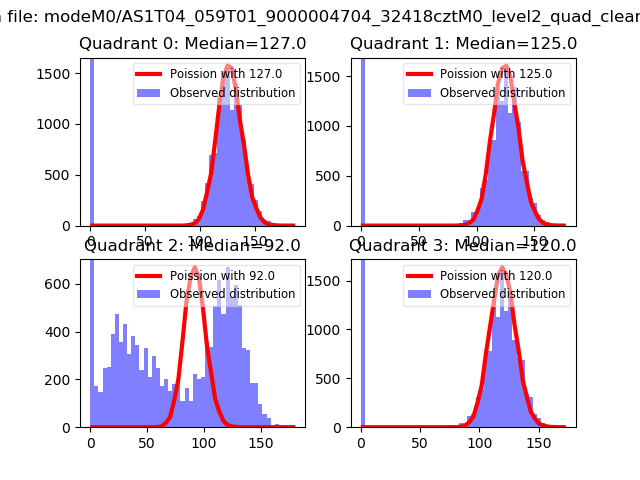

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

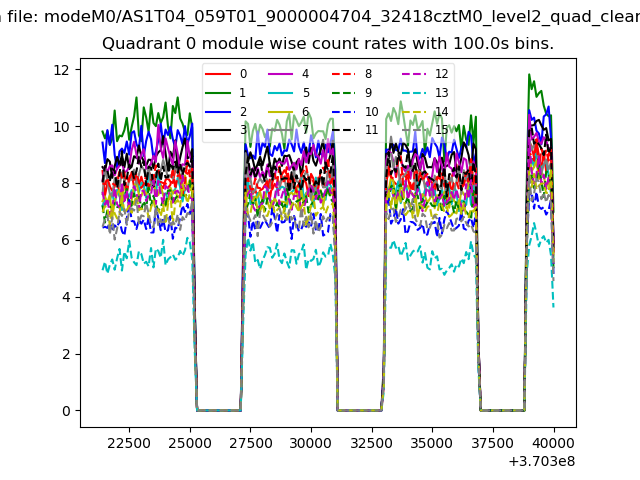

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

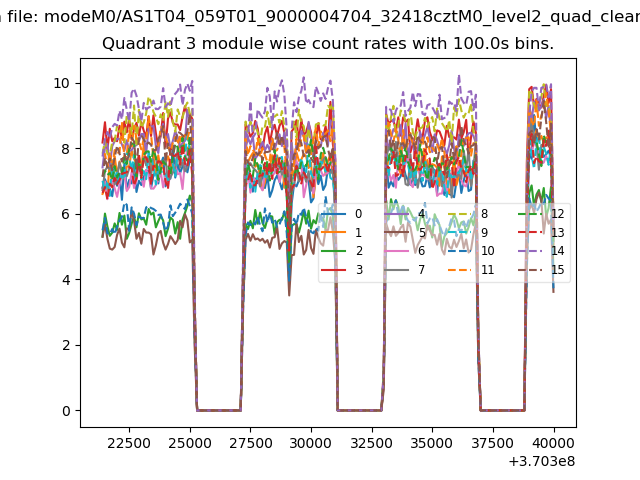

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

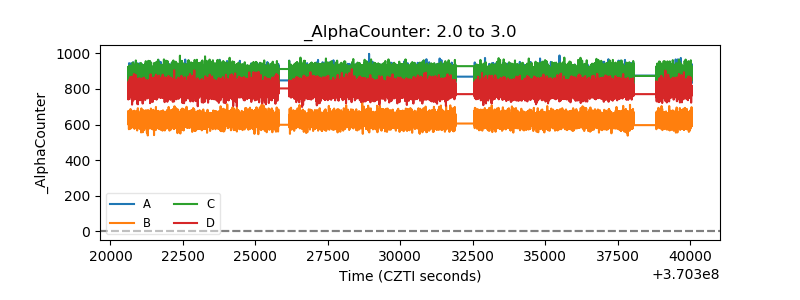

| Alpha Counter |  |

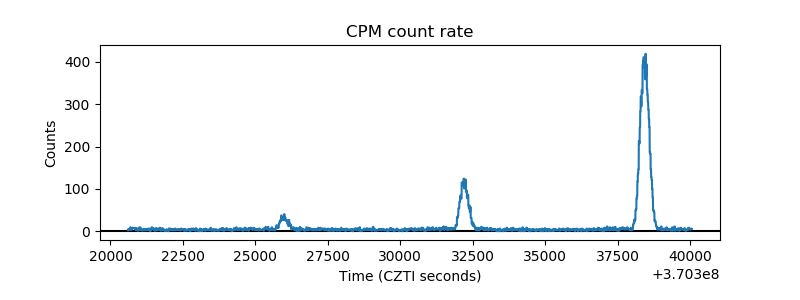

| _CPM_Rate |  |

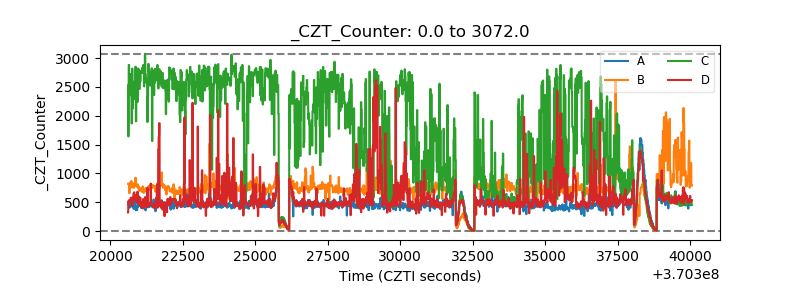

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

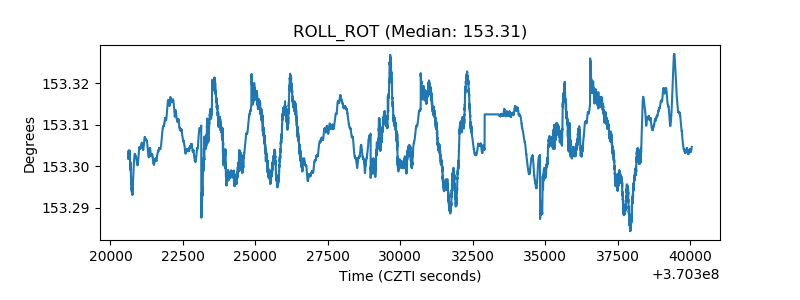

| _ROLL_ROT |  |
| _Roll_DEC |  |

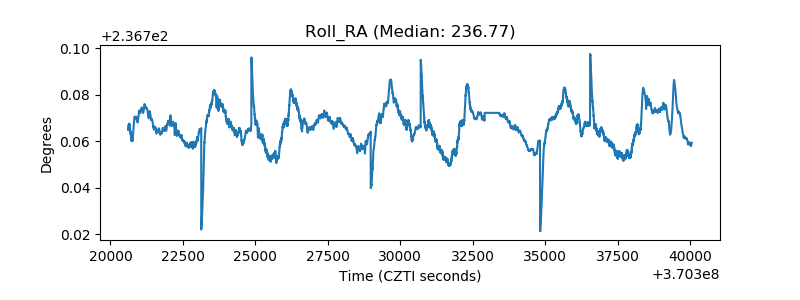

| _Roll_RA |  |
| Veto Counter |  |
