| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32421cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32421cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,643,520 | 83,505,600 |
| Size | 548.0 MB | 79.6 MB |
| Events in quadrant A | 2,837,612 | 587,383 |
| Events in quadrant B | 5,147,701 | 561,700 |
| Events in quadrant C | 4,595,847 | 437,010 |
| Events in quadrant D | 4,428,107 | 535,823 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12268 | 2 |
| B | 0 | 19459 | 1 |
| C | 0 | 17642 | 1 |
| D | 0 | 17057 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5809 | 43 | 0.740231% |
| B | 5809 | 353 | 6.076777% |
| C | 5809 | 1420 | 24.444827% |
| D | 5809 | 298 | 5.129971% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6899 | 5810 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6899 | 5810 | 128 | 128 | 1.86% | 2.20% |  |
| C | 6899 | 5810 | 59 | 59 | 0.86% | 1.02% |  |
| D | 6899 | 5810 | 233 | 233 | 3.38% | 4.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11201 | 70.83 | 732 | 717 | 148.0 |
| A | 13 | 6 | 9121 | 56.78 | 732 | 717 | 148.0 |
| A | 3 | 137 | 7072 | 42.94 | 732 | 717 | 148.0 |
| B | 6 | 159 | 1562900 | 11615.57 | 705 | 688 | 134.5 |
| B | 4 | 80 | 624526 | 4638.45 | 705 | 688 | 134.5 |
| B | 0 | 190 | 80233 | 591.44 | 705 | 688 | 134.5 |
| C | 3 | 233 | 1397805 | 10224.56 | 581 | 587 | 136.7 |
| C | 14 | 254 | 381991 | 2791.04 | 581 | 587 | 136.7 |
| C | 14 | 238 | 349937 | 2556.47 | 581 | 587 | 136.7 |
| D | 1 | 47 | 841294 | 5065.58 | 691 | 673 | 165.9 |
| D | 8 | 195 | 422742 | 2543.39 | 691 | 673 | 165.9 |
| D | 6 | 239 | 204192 | 1226.41 | 691 | 673 | 165.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

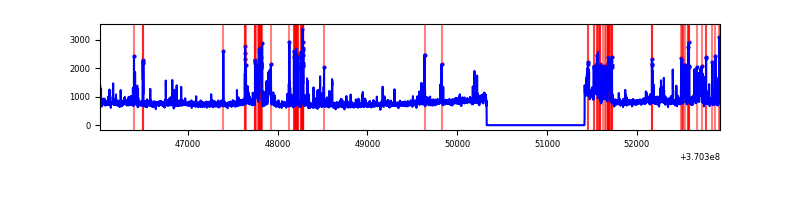

| Quadrant A |  |
 |

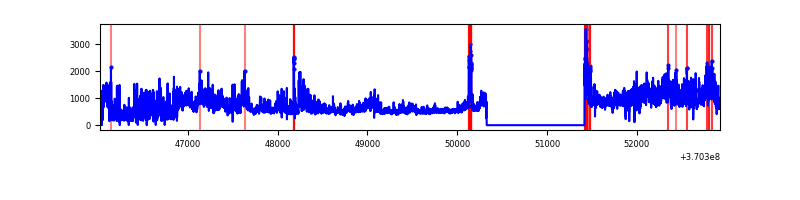

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

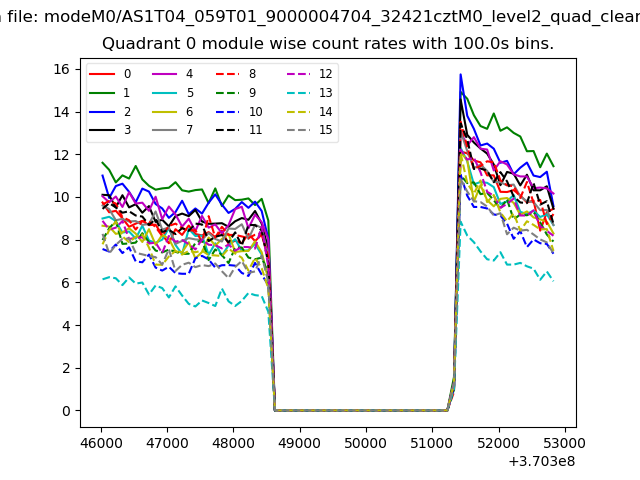

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

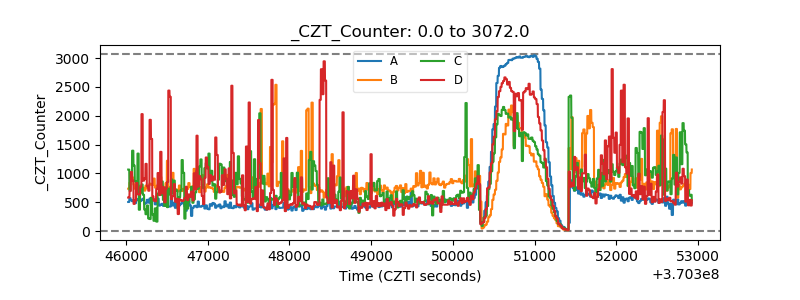

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

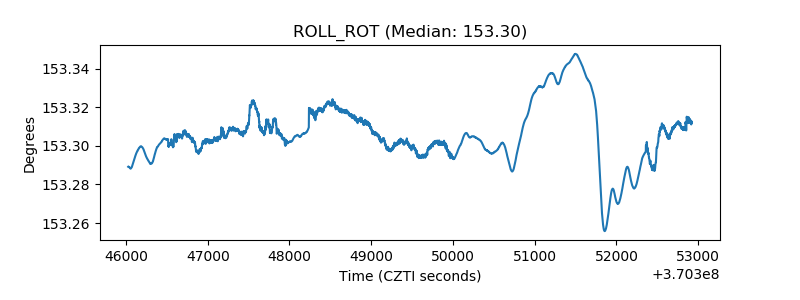

| _ROLL_ROT |  |
| _Roll_DEC |  |

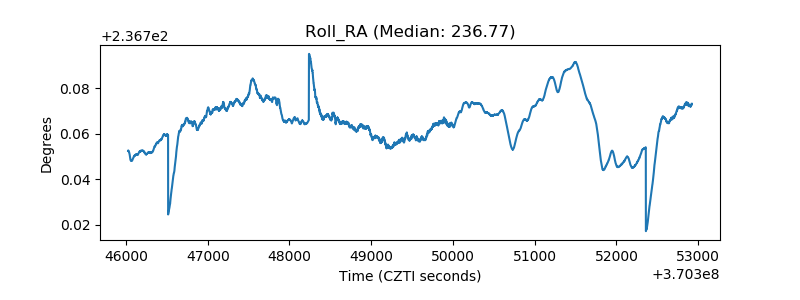

| _Roll_RA |  |

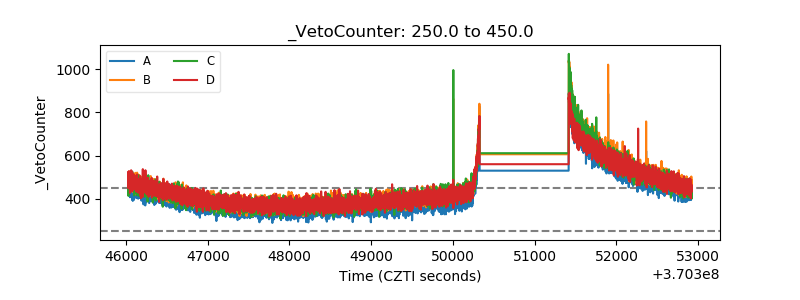

| Veto Counter |  |
