| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32423cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32423cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,686,400 | 92,269,440 |
| Size | 604.3 MB | 88.0 MB |
| Events in quadrant A | 3,224,167 | 632,121 |
| Events in quadrant B | 5,480,725 | 611,170 |
| Events in quadrant C | 3,963,438 | 582,883 |
| Events in quadrant D | 6,124,402 | 554,916 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13295 | 2 |
| B | 0 | 20341 | 1 |
| C | 0 | 15776 | 1 |
| D | 0 | 22444 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5903 | 63 | 1.067254% |
| B | 5903 | 274 | 4.641708% |
| C | 5903 | 262 | 4.438421% |
| D | 5903 | 472 | 7.995934% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7178 | 5904 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7178 | 5904 | 134 | 134 | 1.87% | 2.27% |  |
| C | 7178 | 5904 | 42 | 42 | 0.59% | 0.71% |  |
| D | 7178 | 5904 | 434 | 434 | 6.05% | 7.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 170186 | 1087.29 | 788 | 775 | 155.8 |
| A | 13 | 254 | 14738 | 89.61 | 788 | 775 | 155.8 |
| A | 13 | 6 | 7382 | 42.4 | 788 | 775 | 155.8 |
| B | 6 | 159 | 1716584 | 11967.08 | 766 | 750 | 143.4 |
| B | 4 | 80 | 366981 | 2554.28 | 766 | 750 | 143.4 |
| B | 5 | 172 | 214521 | 1490.95 | 766 | 750 | 143.4 |
| C | 3 | 233 | 832968 | 4975.94 | 722 | 727 | 167.3 |
| C | 14 | 238 | 133215 | 792.14 | 722 | 727 | 167.3 |
| C | 0 | 10 | 84182 | 498.97 | 722 | 727 | 167.3 |
| D | 8 | 195 | 857547 | 5025.2 | 727 | 711 | 170.5 |
| D | 11 | 164 | 771389 | 4519.9 | 727 | 711 | 170.5 |
| D | 14 | 52 | 501217 | 2935.39 | 727 | 711 | 170.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

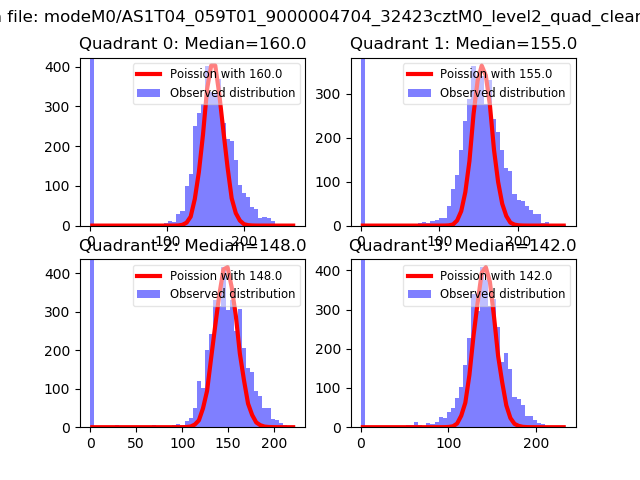

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

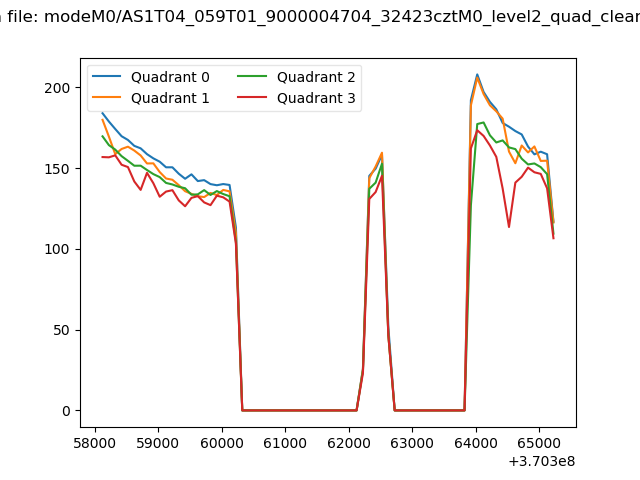

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

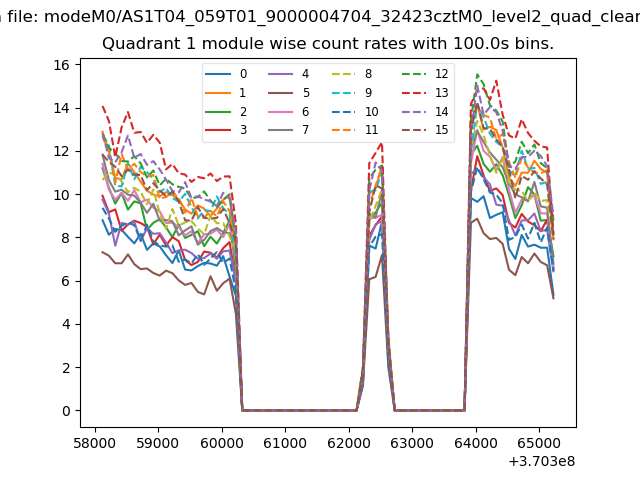

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

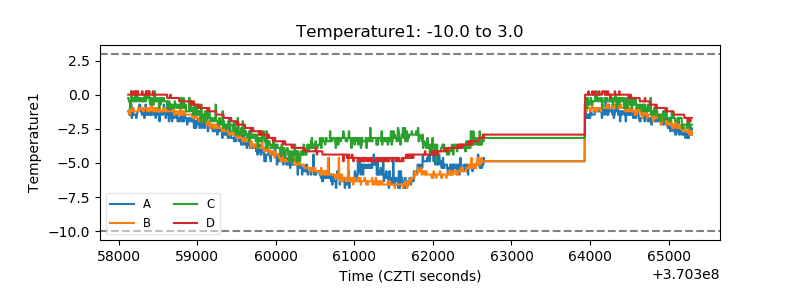

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

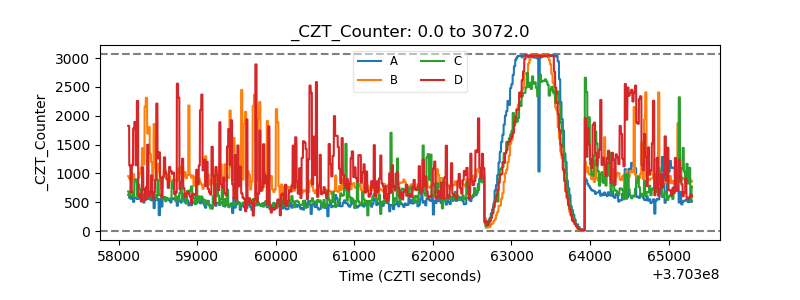

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

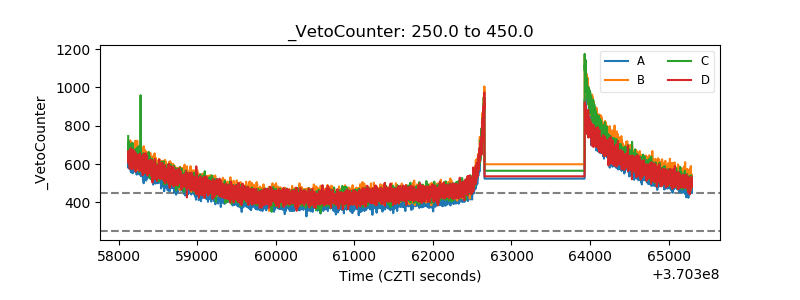

| Veto Counter |  |
