| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_059T01_9000004704_32424cztM0_level2.evt | modeM0/AS1T04_059T01_9000004704_32424cztM0_level2_quad_clean.evt |
| Size (bytes) | 679,233,600 | 91,586,880 |
| Size | 647.8 MB | 87.3 MB |
| Events in quadrant A | 3,234,531 | 631,343 |
| Events in quadrant B | 5,354,017 | 621,323 |
| Events in quadrant C | 4,535,282 | 577,861 |
| Events in quadrant D | 7,049,699 | 530,566 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13257 | 2 |
| B | 0 | 20147 | 1 |
| C | 0 | 17613 | 1 |
| D | 0 | 25081 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5889 | 50 | 0.849041% |
| B | 5889 | 244 | 4.143318% |
| C | 5889 | 295 | 5.009339% |
| D | 5889 | 802 | 13.618611% |

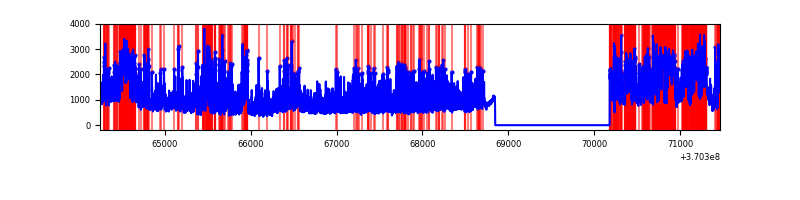

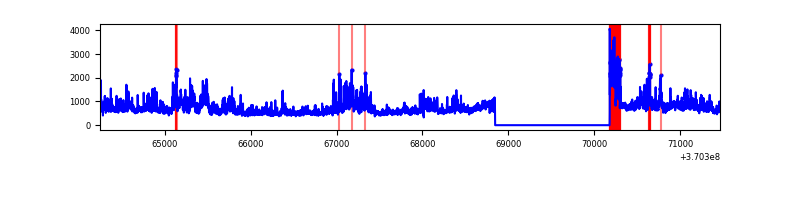

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

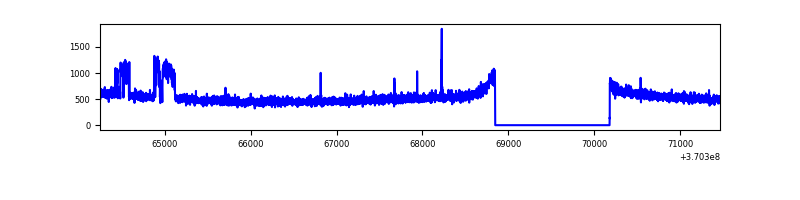

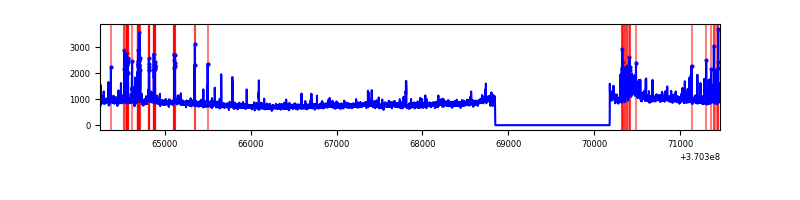

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7224 | 5890 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7224 | 5890 | 84 | 84 | 1.16% | 1.43% |  |
| C | 7224 | 5890 | 86 | 86 | 1.19% | 1.46% |  |
| D | 7224 | 5890 | 851 | 851 | 11.78% | 14.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 170718 | 1076.68 | 788 | 776 | 157.8 |
| A | 13 | 254 | 12618 | 75.03 | 788 | 776 | 157.8 |
| A | 13 | 6 | 10749 | 63.18 | 788 | 776 | 157.8 |
| B | 6 | 159 | 1728678 | 11960.85 | 774 | 758 | 144.5 |
| B | 5 | 172 | 288214 | 1989.8 | 774 | 758 | 144.5 |
| B | 0 | 190 | 124783 | 858.51 | 774 | 758 | 144.5 |
| C | 3 | 233 | 1175509 | 7065.02 | 722 | 727 | 166.3 |
| C | 0 | 10 | 245639 | 1472.88 | 722 | 727 | 166.3 |
| C | 14 | 238 | 139492 | 834.52 | 722 | 727 | 166.3 |
| D | 11 | 164 | 1109201 | 6596.68 | 714 | 696 | 168.0 |
| D | 12 | 227 | 942551 | 5604.95 | 714 | 696 | 168.0 |
| D | 8 | 195 | 816076 | 4852.3 | 714 | 696 | 168.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

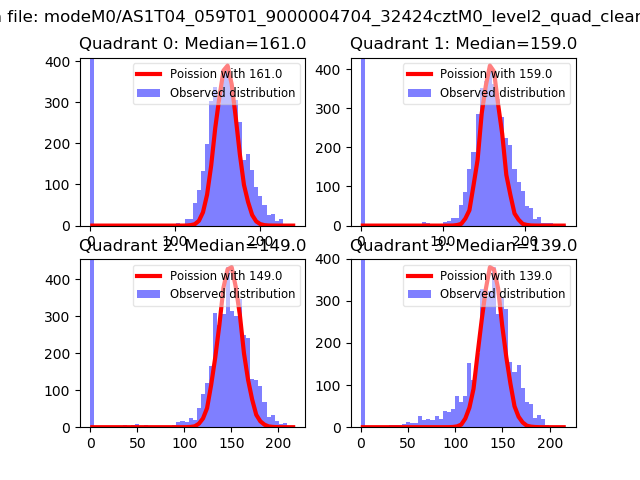

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

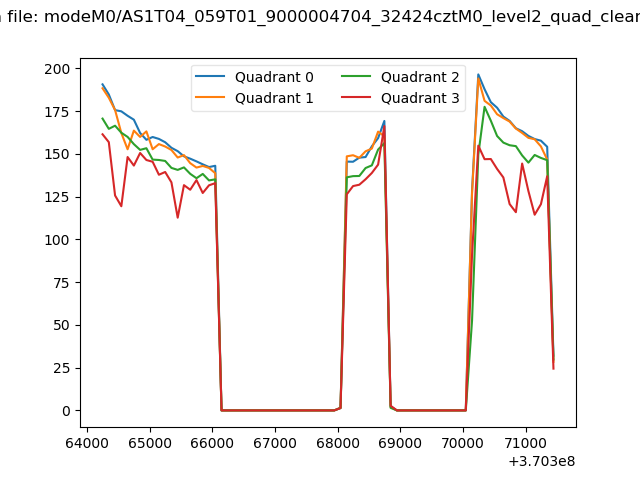

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

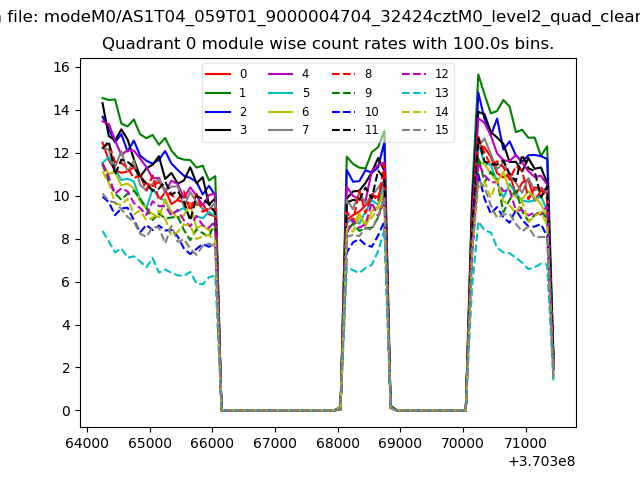

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

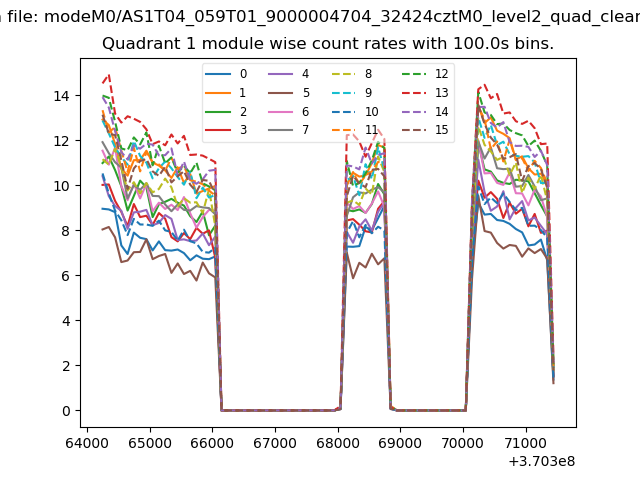

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

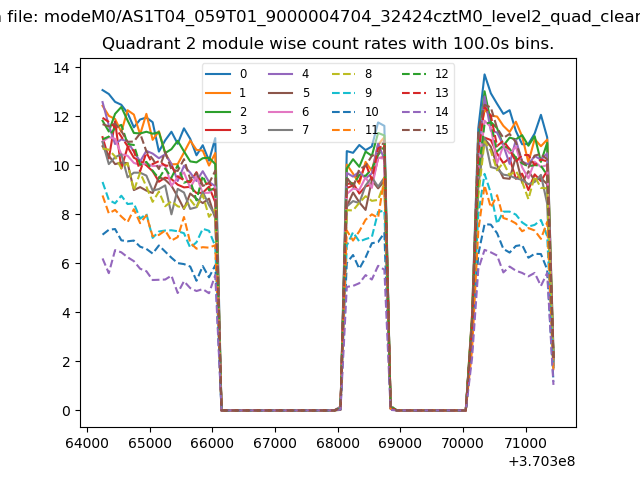

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

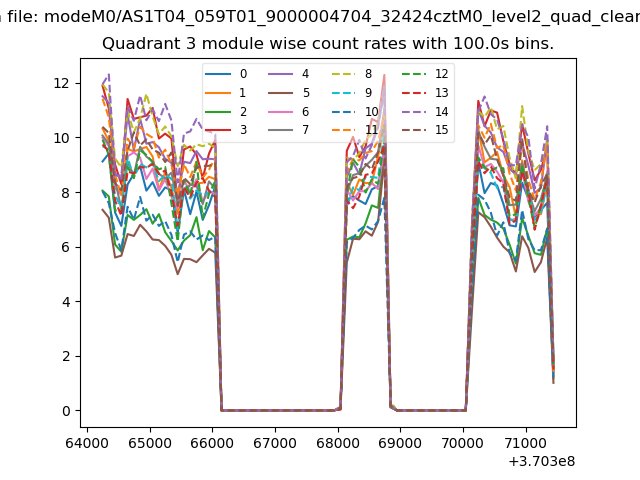

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

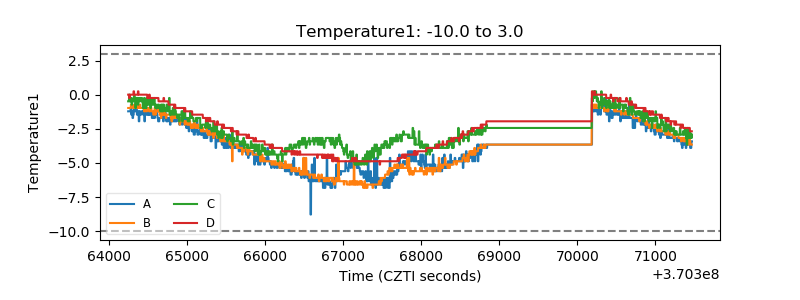

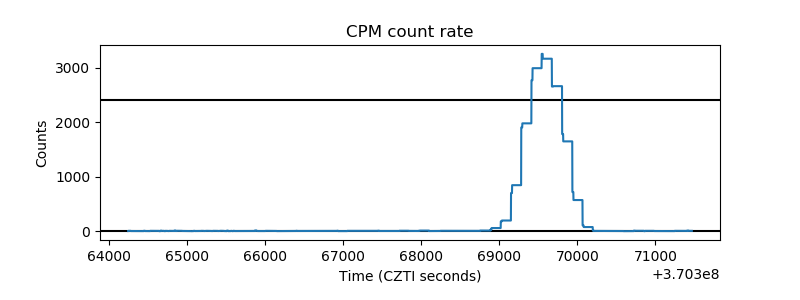

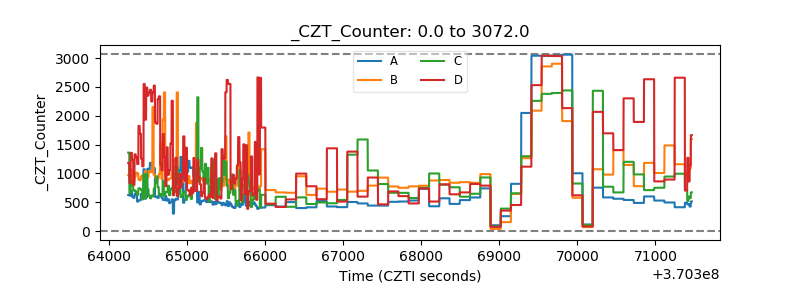

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

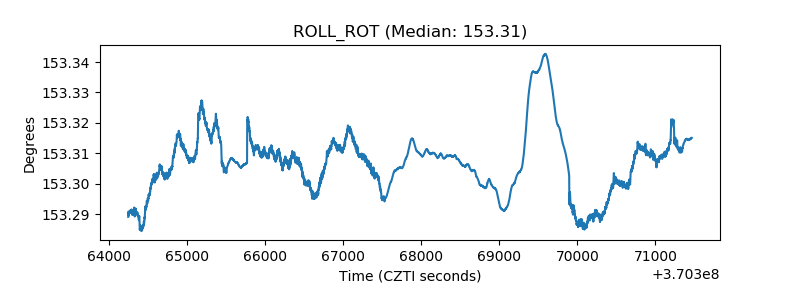

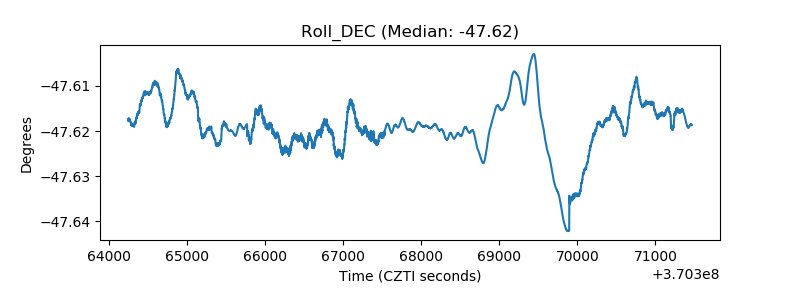

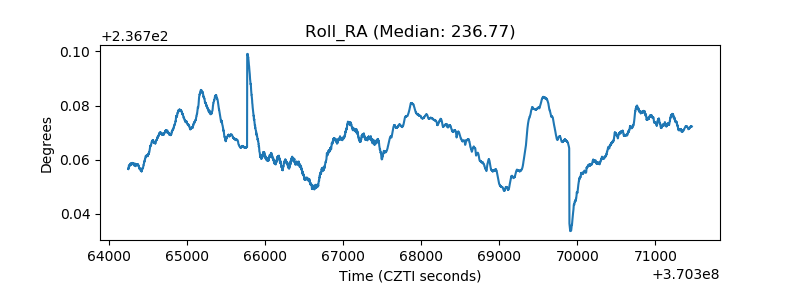

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

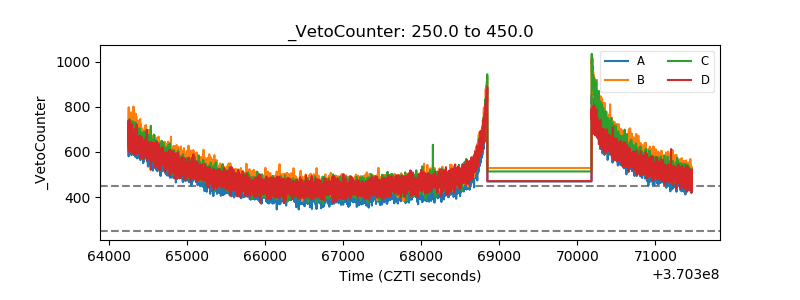

| Veto Counter |  |
