| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T03_9000004722_32671cztM0_level2.evt | modeM0/AS1A10_057T03_9000004722_32671cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,335,360 | 65,923,200 |
| Size | 530.6 MB | 62.9 MB |
| Events in quadrant A | 2,704,689 | 427,219 |
| Events in quadrant B | 3,128,896 | 429,373 |
| Events in quadrant C | 3,259,874 | 408,887 |
| Events in quadrant D | 7,420,381 | 383,621 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10823 | 3 |
| B | 0 | 12449 | 2 |
| C | 0 | 12697 | 2 |
| D | 0 | 25534 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4940 | 45 | 0.910931% |
| B | 4940 | 51 | 1.032389% |
| C | 4940 | 218 | 4.412955% |
| D | 4940 | 1739 | 35.202429% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7093 | 4941 | 33 | 33 | 0.47% | 0.67% |  |
| B | 7093 | 4941 | 29 | 29 | 0.41% | 0.59% |  |
| C | 7093 | 4941 | 175 | 175 | 2.47% | 3.54% |  |
| D | 7093 | 4941 | 1477 | 1477 | 20.82% | 29.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 168520 | 1362.83 | 625 | 615 | 123.2 |
| A | 12 | 189 | 48685 | 390.17 | 625 | 615 | 123.2 |
| A | 14 | 239 | 18717 | 146.93 | 625 | 615 | 123.2 |
| B | 0 | 219 | 206512 | 1765.55 | 622 | 610 | 116.6 |
| B | 3 | 26 | 129354 | 1103.94 | 622 | 610 | 116.6 |
| B | 0 | 199 | 78284 | 666.03 | 622 | 610 | 116.6 |
| C | 0 | 10 | 320347 | 2362.67 | 588 | 593 | 135.3 |
| C | 8 | 35 | 262707 | 1936.77 | 588 | 593 | 135.3 |
| C | 9 | 236 | 109302 | 803.25 | 588 | 593 | 135.3 |
| D | 12 | 2 | 1538359 | 13550.85 | 483 | 473 | 113.5 |
| D | 8 | 195 | 738338 | 6501.59 | 483 | 473 | 113.5 |
| D | 12 | 33 | 736686 | 6487.03 | 483 | 473 | 113.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

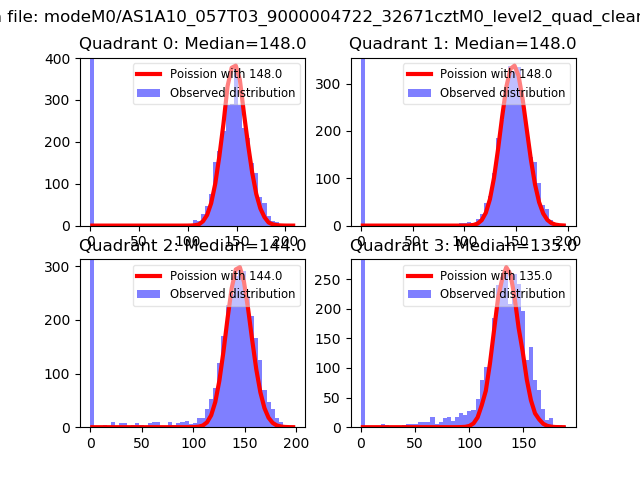

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

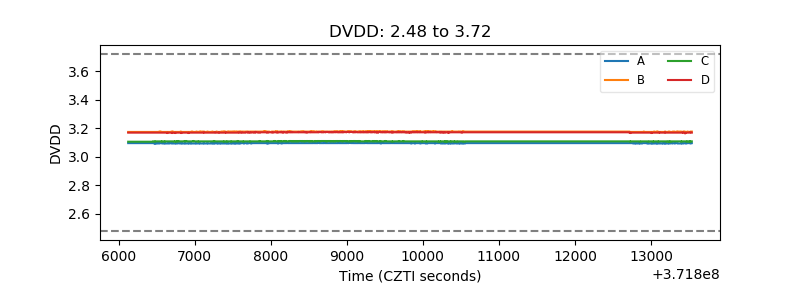

| D_VDD |  |

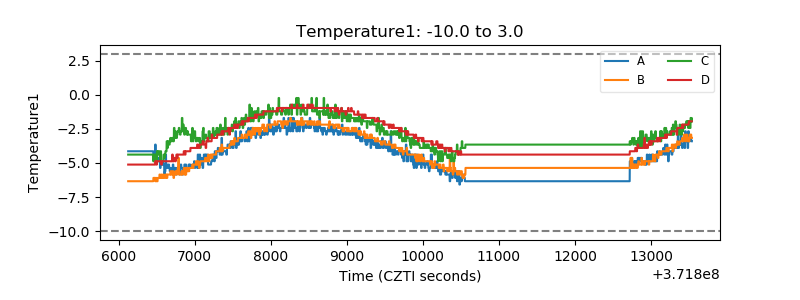

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

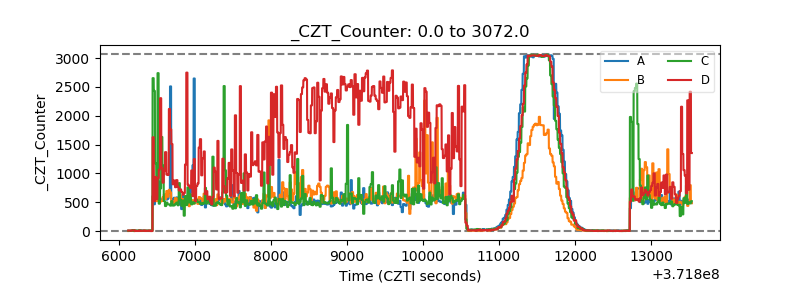

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

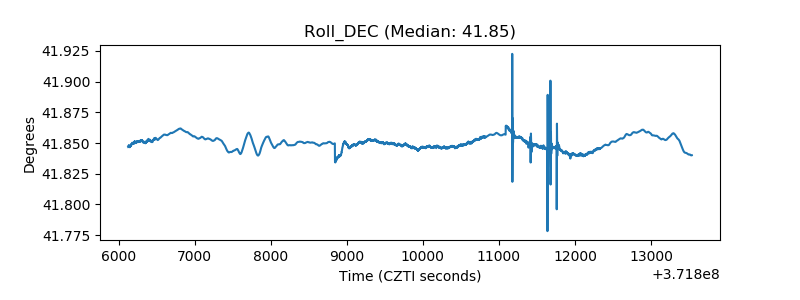

| _Roll_DEC |  |

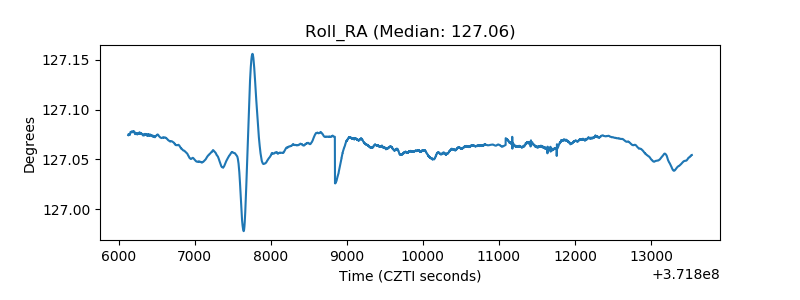

| _Roll_RA |  |
| Veto Counter |  |
