| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T03_9000004722_32674cztM0_level2.evt | modeM0/AS1A10_057T03_9000004722_32674cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,736,320 | 56,260,800 |
| Size | 572.9 MB | 53.7 MB |
| Events in quadrant A | 3,218,363 | 340,189 |
| Events in quadrant B | 3,848,495 | 334,235 |
| Events in quadrant C | 3,205,536 | 335,740 |
| Events in quadrant D | 7,551,194 | 310,537 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13047 | 3 |
| B | 0 | 15100 | 2 |
| C | 0 | 12930 | 2 |
| D | 0 | 26198 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5461 | 369 | 6.757004% |
| B | 5461 | 56 | 1.025453% |
| C | 5461 | 119 | 2.179088% |
| D | 5461 | 1414 | 25.892694% |

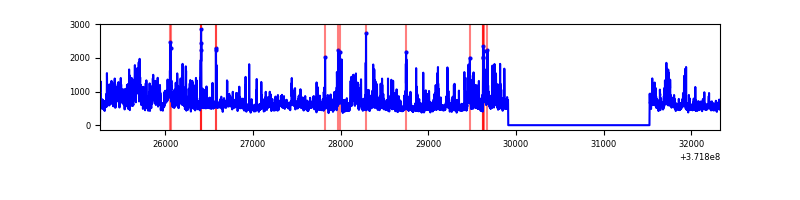

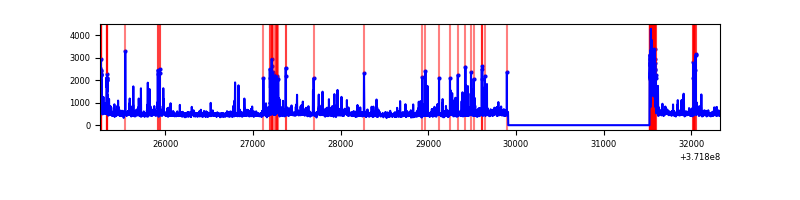

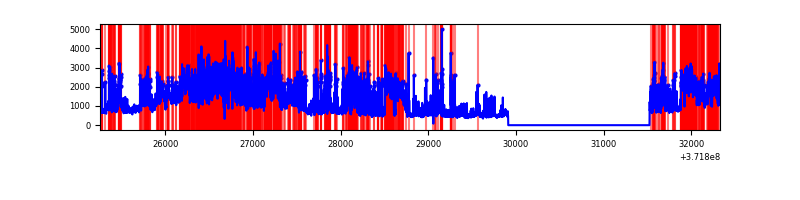

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7074 | 5459 | 127 | 127 | 1.80% | 2.33% |  |
| B | 7074 | 5461 | 18 | 18 | 0.25% | 0.33% |  |
| C | 7074 | 5461 | 110 | 110 | 1.55% | 2.01% |  |
| D | 7074 | 5461 | 1280 | 1280 | 18.09% | 23.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 744620 | 5942.5 | 614 | 602 | 125.2 |
| A | 7 | 16 | 27593 | 215.58 | 614 | 602 | 125.2 |
| A | 15 | 47 | 17184 | 132.44 | 614 | 602 | 125.2 |
| B | 0 | 219 | 582445 | 4716.35 | 646 | 636 | 123.4 |
| B | 3 | 26 | 357192 | 2890.37 | 646 | 636 | 123.4 |
| B | 12 | 1 | 129416 | 1043.94 | 646 | 636 | 123.4 |
| C | 9 | 236 | 284265 | 1969.21 | 618 | 623 | 144.0 |
| C | 0 | 10 | 271097 | 1877.79 | 618 | 623 | 144.0 |
| C | 8 | 35 | 53037 | 363.89 | 618 | 623 | 144.0 |
| D | 7 | 38 | 1224480 | 9080.78 | 563 | 551 | 134.8 |
| D | 12 | 2 | 1111730 | 8244.25 | 563 | 551 | 134.8 |
| D | 8 | 195 | 1028171 | 7624.29 | 563 | 551 | 134.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

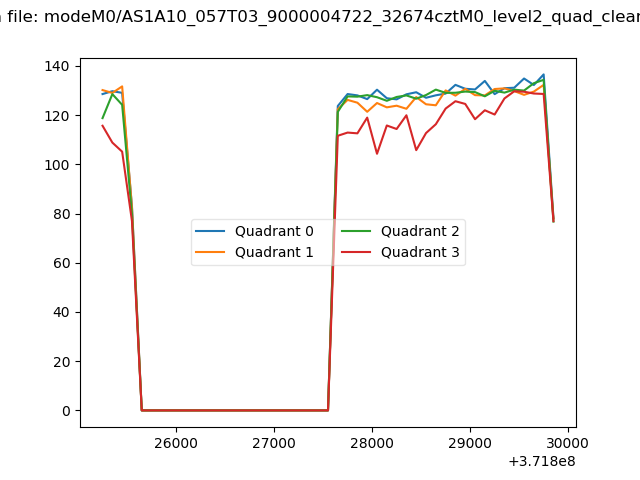

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

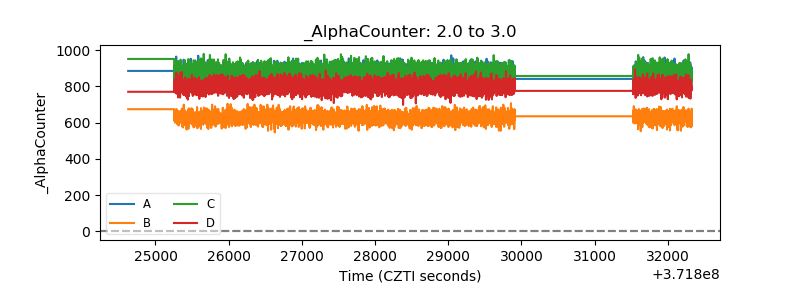

| Alpha Counter |  |

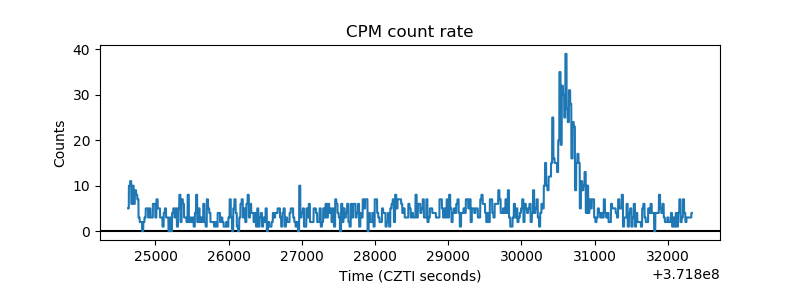

| _CPM_Rate |  |

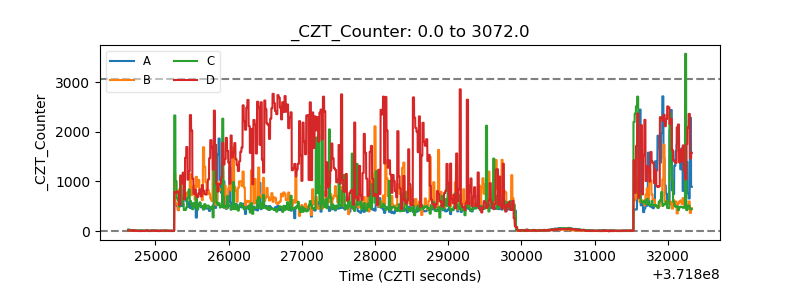

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
