| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_063T01_9000004724_32697cztM0_level2.evt | modeM0/AS1T04_063T01_9000004724_32697cztM0_level2_quad_clean.evt |
| Size (bytes) | 637,502,400 | 50,112,000 |
| Size | 608.0 MB | 47.8 MB |
| Events in quadrant A | 7,947,239 | 226,202 |
| Events in quadrant B | 3,097,157 | 323,373 |
| Events in quadrant C | 3,182,594 | 309,509 |
| Events in quadrant D | 4,719,196 | 283,530 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27306 | 3 |
| B | 0 | 12574 | 2 |
| C | 0 | 12590 | 2 |
| D | 0 | 17782 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5341 | 1738 | 32.540723% |
| B | 5341 | 43 | 0.805093% |
| C | 5341 | 124 | 2.321663% |
| D | 5341 | 352 | 6.590526% |

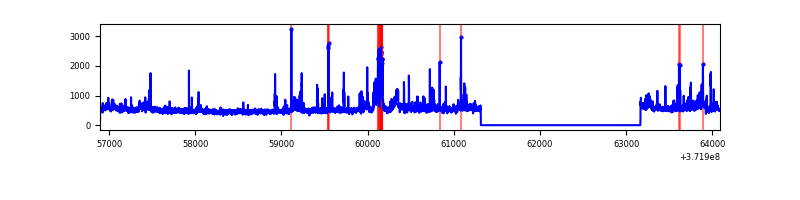

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7193 | 5342 | 1405 | 1405 | 19.53% | 26.30% |  |
| B | 7193 | 5342 | 25 | 25 | 0.35% | 0.47% |  |
| C | 7193 | 5342 | 86 | 86 | 1.20% | 1.61% |  |
| D | 7193 | 5341 | 283 | 283 | 3.93% | 5.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 5762997 | 51699.39 | 557 | 547 | 111.5 |
| A | 12 | 247 | 11187 | 95.46 | 557 | 547 | 111.5 |
| A | 13 | 254 | 8046 | 67.28 | 557 | 547 | 111.5 |
| B | 3 | 26 | 126607 | 998.34 | 676 | 665 | 126.2 |
| B | 0 | 219 | 109642 | 863.86 | 676 | 665 | 126.2 |
| B | 0 | 230 | 86168 | 677.78 | 676 | 665 | 126.2 |
| C | 0 | 10 | 409161 | 2795.93 | 635 | 640 | 146.1 |
| C | 9 | 236 | 123306 | 839.53 | 635 | 640 | 146.1 |
| C | 3 | 233 | 57378 | 388.32 | 635 | 640 | 146.1 |
| D | 2 | 249 | 534665 | 3657.62 | 622 | 612 | 146.0 |
| D | 2 | 250 | 336946 | 2303.48 | 622 | 612 | 146.0 |
| D | 8 | 195 | 283514 | 1937.54 | 622 | 612 | 146.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

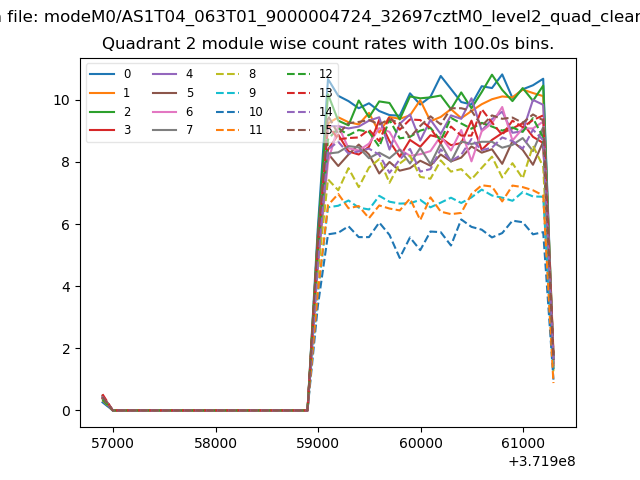

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

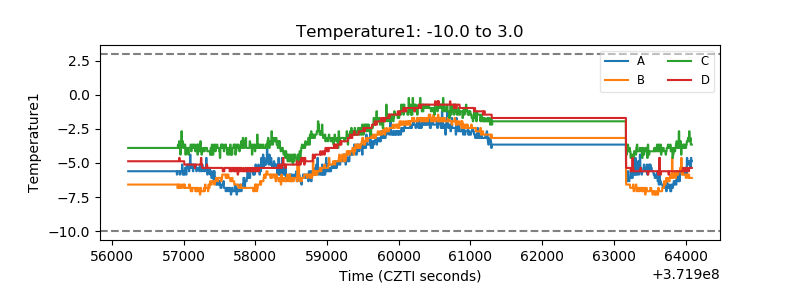

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

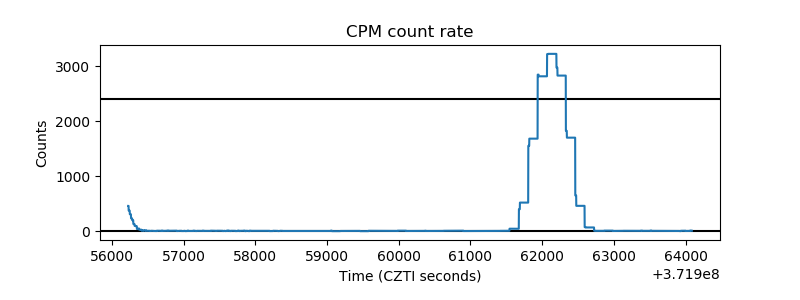

| _CPM_Rate |  |

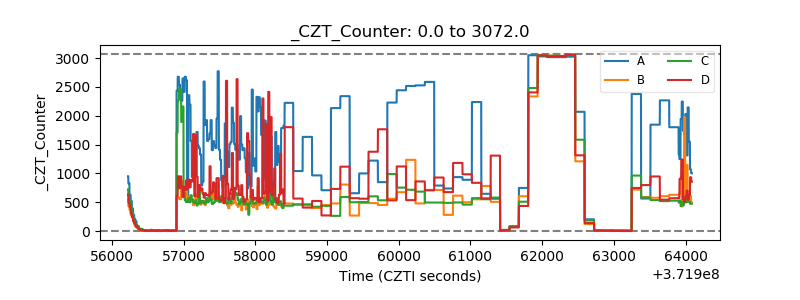

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

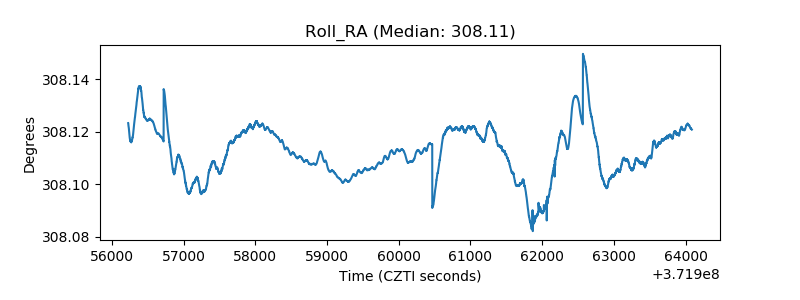

| _ROLL_ROT |  |

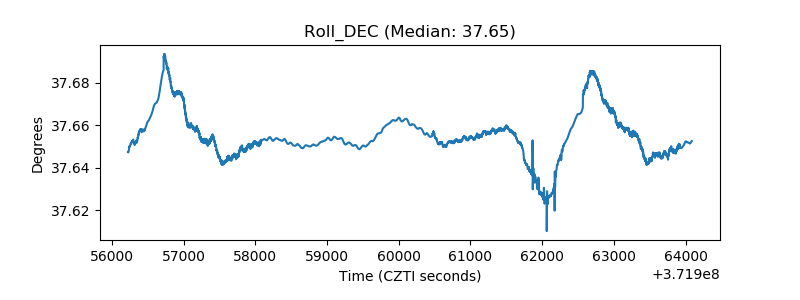

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
