| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_063T01_9000004724_32699cztM0_level2.evt | modeM0/AS1T04_063T01_9000004724_32699cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,316,480 | 66,833,280 |
| Size | 528.6 MB | 63.7 MB |
| Events in quadrant A | 3,615,229 | 427,991 |
| Events in quadrant B | 2,916,011 | 451,623 |
| Events in quadrant C | 3,130,147 | 427,071 |
| Events in quadrant D | 6,788,537 | 366,627 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13730 | 3 |
| B | 0 | 11638 | 2 |
| C | 0 | 12251 | 2 |
| D | 0 | 23731 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4991 | 300 | 6.010819% |
| B | 4991 | 31 | 0.621118% |
| C | 4991 | 114 | 2.284111% |
| D | 4991 | 1122 | 22.480465% |

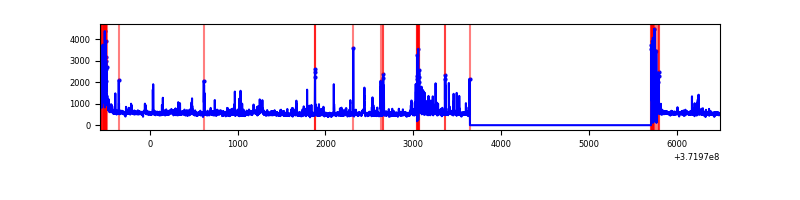

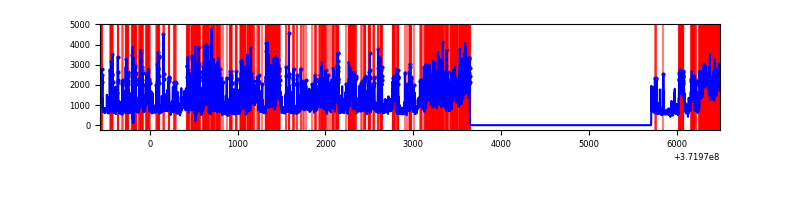

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7054 | 4992 | 211 | 211 | 2.99% | 4.23% |  |
| B | 7054 | 4992 | 17 | 17 | 0.24% | 0.34% |  |
| C | 7054 | 4992 | 75 | 75 | 1.06% | 1.50% |  |
| D | 7054 | 4992 | 1012 | 1012 | 14.35% | 20.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 929914 | 7091.9 | 661 | 653 | 131.0 |
| A | 12 | 247 | 55479 | 418.42 | 661 | 653 | 131.0 |
| A | 0 | 159 | 29593 | 220.86 | 661 | 653 | 131.0 |
| B | 0 | 219 | 89195 | 693.07 | 681 | 670 | 127.7 |
| B | 0 | 230 | 56932 | 440.48 | 681 | 670 | 127.7 |
| B | 5 | 172 | 23419 | 178.1 | 681 | 670 | 127.7 |
| C | 0 | 10 | 442326 | 3070.2 | 635 | 643 | 143.9 |
| C | 6 | 96 | 46392 | 318.01 | 635 | 643 | 143.9 |
| C | 6 | 247 | 32335 | 220.3 | 635 | 643 | 143.9 |
| D | 7 | 80 | 1681915 | 12057.23 | 588 | 578 | 139.4 |
| D | 2 | 249 | 607185 | 4350.11 | 588 | 578 | 139.4 |
| D | 12 | 227 | 547838 | 3924.52 | 588 | 578 | 139.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

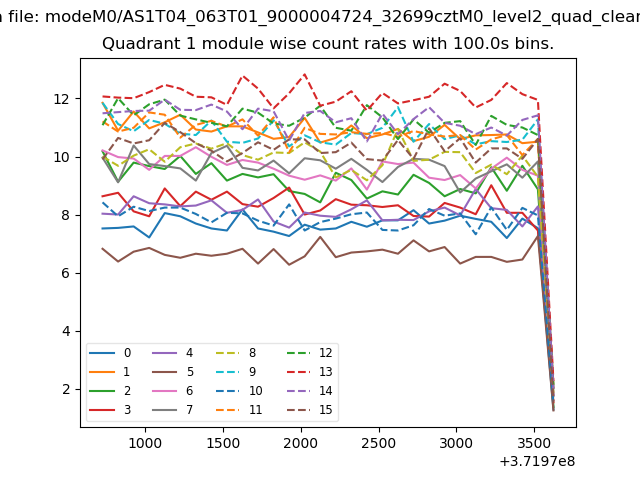

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

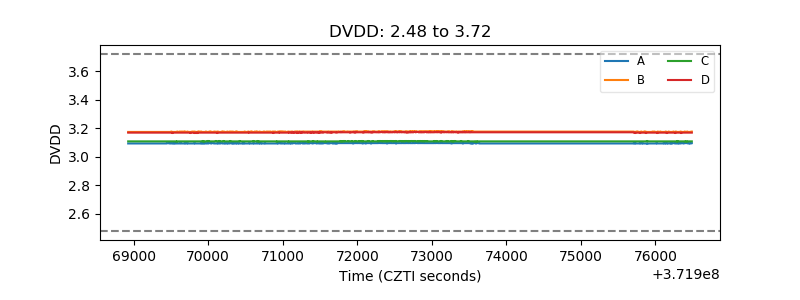

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

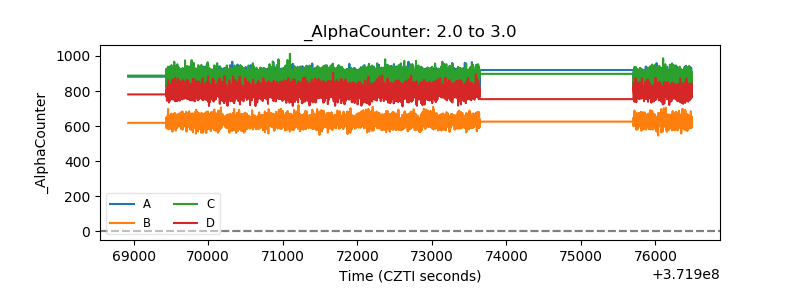

| Alpha Counter |  |
| _CPM_Rate |  |

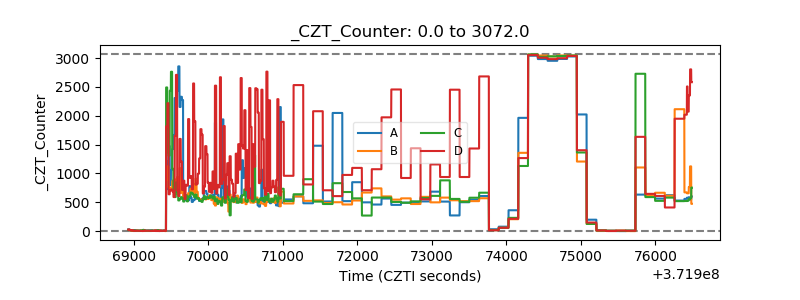

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

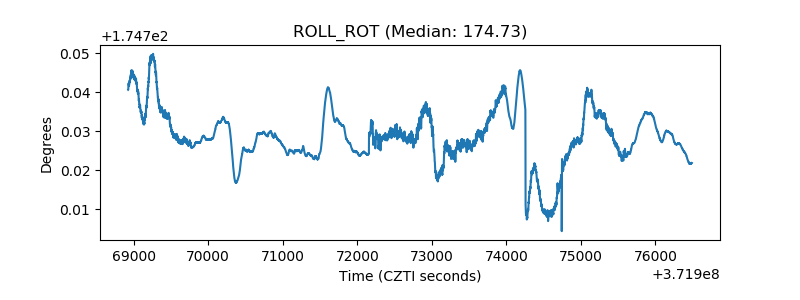

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

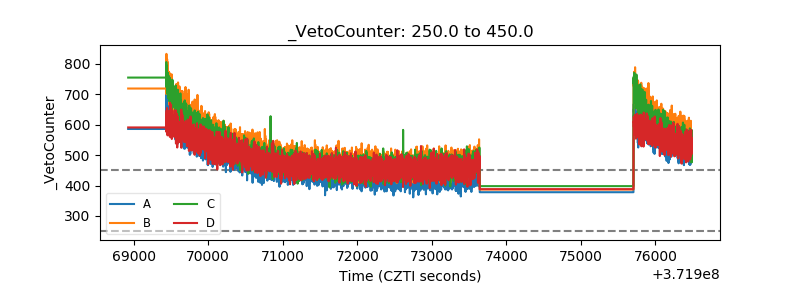

| Veto Counter |  |
