| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_063T01_9000004724_32705cztM0_level2.evt | modeM0/AS1T04_063T01_9000004724_32705cztM0_level2_quad_clean.evt |
| Size (bytes) | 615,801,600 | 75,931,200 |
| Size | 587.3 MB | 72.4 MB |
| Events in quadrant A | 5,218,653 | 476,308 |
| Events in quadrant B | 3,336,832 | 497,380 |
| Events in quadrant C | 3,436,504 | 489,016 |
| Events in quadrant D | 6,256,354 | 421,352 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19518 | 3 |
| B | 0 | 13628 | 2 |
| C | 0 | 14062 | 2 |
| D | 0 | 22759 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5934 | 446 | 7.516009% |
| B | 5934 | 69 | 1.162791% |
| C | 5934 | 93 | 1.567240% |
| D | 5934 | 729 | 12.285137% |

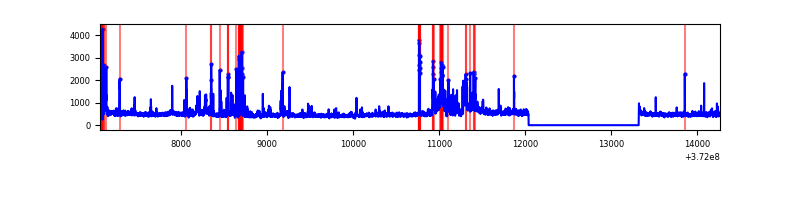

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7216 | 5934 | 333 | 333 | 4.61% | 5.61% |  |
| B | 7216 | 5934 | 43 | 43 | 0.60% | 0.72% |  |
| C | 7216 | 5934 | 73 | 73 | 1.01% | 1.23% |  |
| D | 7216 | 5934 | 618 | 618 | 8.56% | 10.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 2478943 | 18161.54 | 678 | 664 | 136.5 |
| A | 15 | 174 | 31442 | 225.55 | 678 | 664 | 136.5 |
| A | 10 | 228 | 23833 | 169.79 | 678 | 664 | 136.5 |
| B | 5 | 172 | 224556 | 1664.88 | 699 | 683 | 134.5 |
| B | 0 | 219 | 111112 | 821.23 | 699 | 683 | 134.5 |
| B | 4 | 251 | 96896 | 715.51 | 699 | 683 | 134.5 |
| C | 0 | 10 | 449021 | 2853.44 | 675 | 682 | 157.1 |
| C | 9 | 236 | 184685 | 1171.08 | 675 | 682 | 157.1 |
| C | 3 | 233 | 50464 | 316.84 | 675 | 682 | 157.1 |
| D | 8 | 195 | 774106 | 5049.84 | 639 | 625 | 153.2 |
| D | 12 | 2 | 657711 | 4289.93 | 639 | 625 | 153.2 |
| D | 2 | 250 | 634850 | 4140.68 | 639 | 625 | 153.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

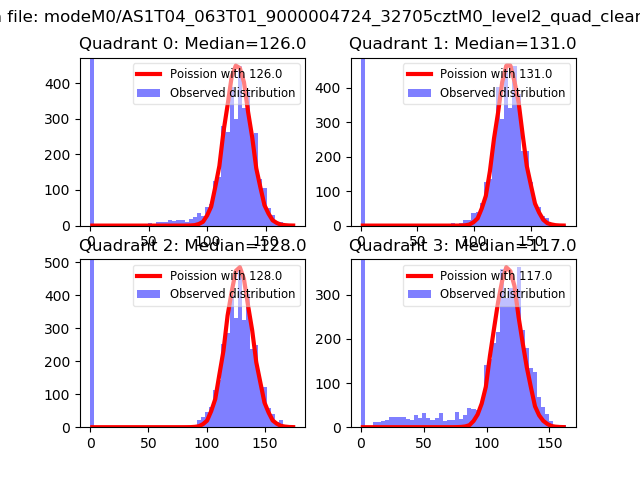

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

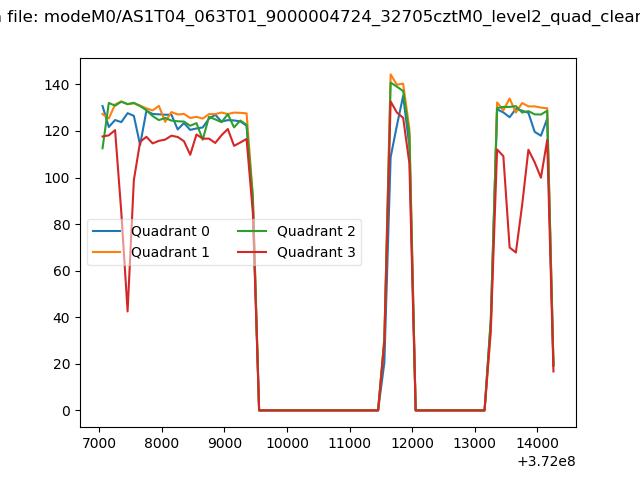

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

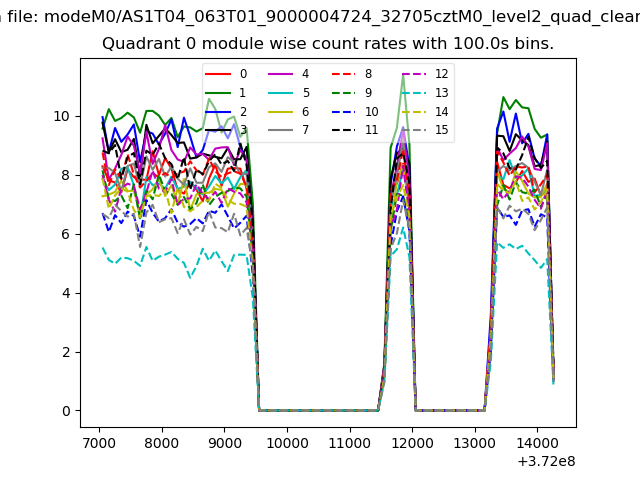

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

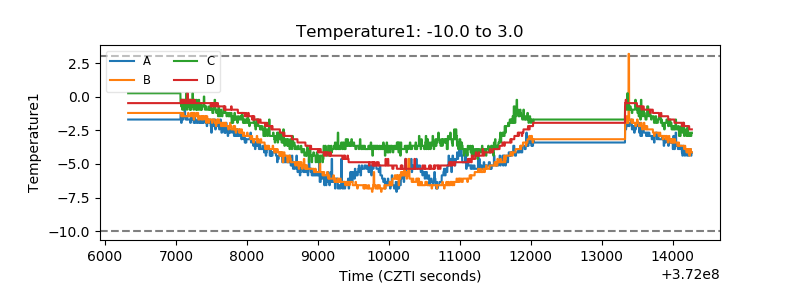

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

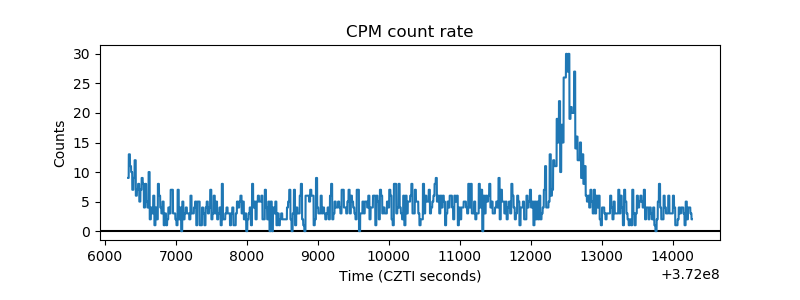

| _CPM_Rate |  |

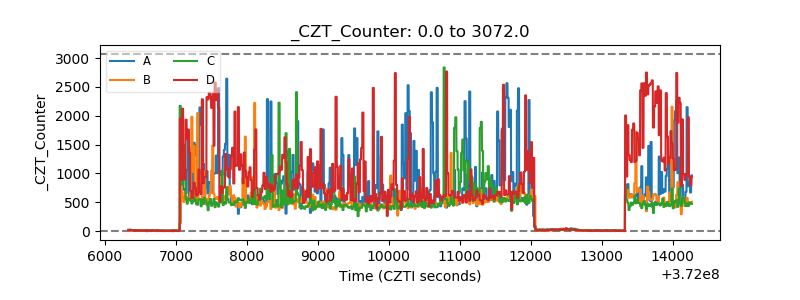

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
