| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T04_9000004726_32713cztM0_level2.evt | modeM0/AS1A10_123T04_9000004726_32713cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,175,360 | 84,219,840 |
| Size | 528.5 MB | 80.3 MB |
| Events in quadrant A | 6,183,740 | 530,335 |
| Events in quadrant B | 3,000,757 | 577,362 |
| Events in quadrant C | 2,909,179 | 553,623 |
| Events in quadrant D | 4,330,350 | 517,234 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21969 | 3 |
| B | 0 | 12246 | 2 |
| C | 0 | 11908 | 2 |
| D | 0 | 16370 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5307 | 1003 | 18.899567% |
| B | 5307 | 44 | 0.829094% |
| C | 5307 | 77 | 1.450914% |
| D | 5307 | 422 | 7.951762% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7340 | 5308 | 758 | 758 | 10.33% | 14.28% |  |
| B | 7340 | 5308 | 20 | 20 | 0.27% | 0.38% |  |
| C | 7340 | 5308 | 72 | 72 | 0.98% | 1.36% |  |
| D | 7340 | 5308 | 357 | 357 | 4.86% | 6.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 3698604 | 29679.23 | 627 | 618 | 124.6 |
| A | 15 | 237 | 31191 | 245.37 | 627 | 618 | 124.6 |
| A | 13 | 6 | 10853 | 82.14 | 627 | 618 | 124.6 |
| B | 4 | 251 | 110980 | 898.72 | 661 | 649 | 122.8 |
| B | 5 | 172 | 67730 | 546.42 | 661 | 649 | 122.8 |
| B | 0 | 219 | 46146 | 370.6 | 661 | 649 | 122.8 |
| C | 9 | 236 | 377233 | 2640.88 | 629 | 636 | 142.6 |
| C | 3 | 233 | 20257 | 137.59 | 629 | 636 | 142.6 |
| C | 0 | 10 | 12532 | 83.42 | 629 | 636 | 142.6 |
| D | 7 | 80 | 682357 | 4681.81 | 608 | 592 | 145.6 |
| D | 2 | 250 | 415516 | 2849.36 | 608 | 592 | 145.6 |
| D | 12 | 218 | 256767 | 1759.2 | 608 | 592 | 145.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

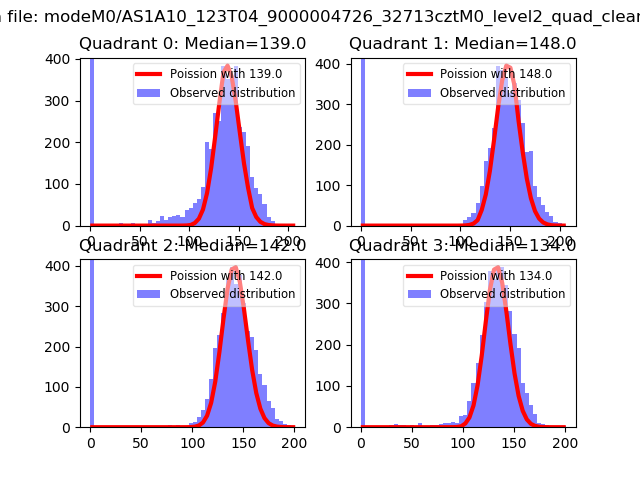

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

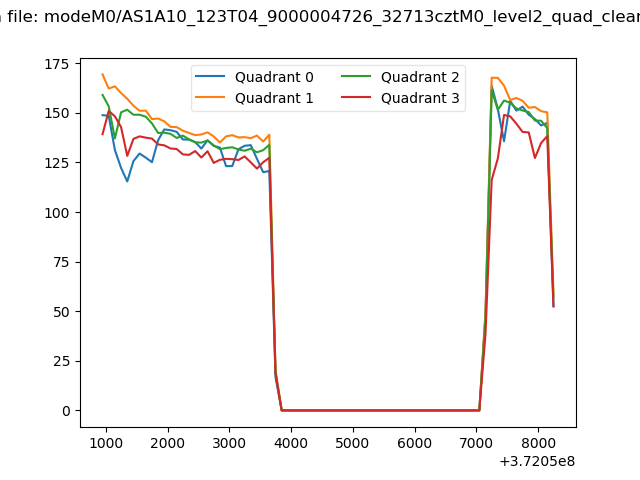

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

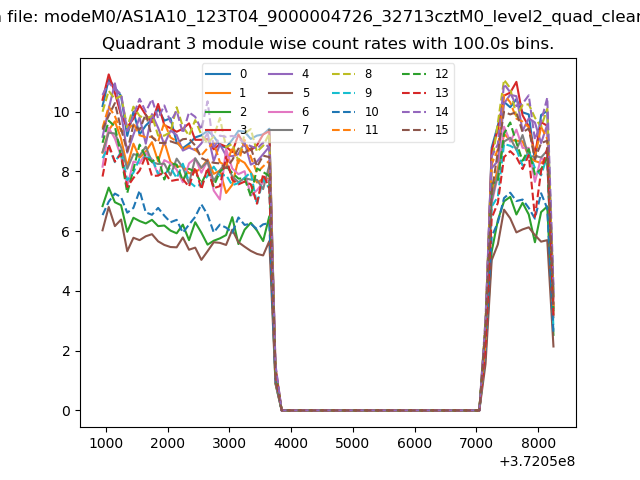

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
