| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T04_9000004726_32725cztM0_level2.evt | modeM0/AS1A10_123T04_9000004726_32725cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,395,520 | 87,984,000 |
| Size | 604.1 MB | 83.9 MB |
| Events in quadrant A | 2,755,668 | 605,968 |
| Events in quadrant B | 8,241,948 | 498,486 |
| Events in quadrant C | 3,572,248 | 604,668 |
| Events in quadrant D | 4,243,856 | 573,004 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11862 | 3 |
| B | 0 | 28184 | 2 |
| C | 0 | 14259 | 2 |
| D | 0 | 16464 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5449 | 74 | 1.358047% |
| B | 5449 | 2009 | 36.869150% |
| C | 5449 | 210 | 3.853918% |
| D | 5449 | 179 | 3.285006% |

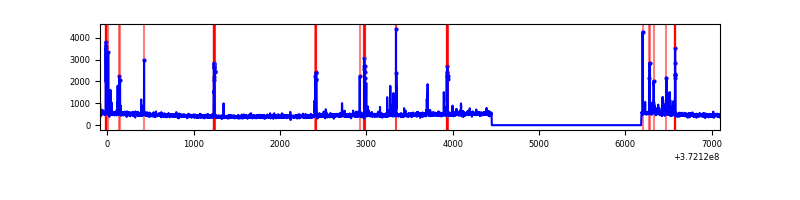

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7181 | 5450 | 53 | 53 | 0.74% | 0.97% |  |
| B | 7181 | 5449 | 1915 | 1915 | 26.67% | 35.14% |  |
| C | 7181 | 5450 | 198 | 198 | 2.76% | 3.63% |  |
| D | 7181 | 5450 | 160 | 160 | 2.23% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 237017 | 1869.85 | 630 | 619 | 126.4 |
| A | 15 | 237 | 62861 | 492.32 | 630 | 619 | 126.4 |
| A | 13 | 254 | 10307 | 76.63 | 630 | 619 | 126.4 |
| B | 12 | 1 | 6015743 | 62706.85 | 504 | 493 | 95.9 |
| B | 3 | 26 | 42972 | 442.83 | 504 | 493 | 95.9 |
| B | 0 | 197 | 41749 | 430.08 | 504 | 493 | 95.9 |
| C | 9 | 236 | 367330 | 2593.62 | 609 | 615 | 141.4 |
| C | 8 | 35 | 300661 | 2122.1 | 609 | 615 | 141.4 |
| C | 15 | 208 | 255647 | 1803.73 | 609 | 615 | 141.4 |
| D | 2 | 250 | 653213 | 4514.92 | 602 | 588 | 144.5 |
| D | 8 | 195 | 578385 | 3997.26 | 602 | 588 | 144.5 |
| D | 7 | 80 | 121298 | 835.08 | 602 | 588 | 144.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

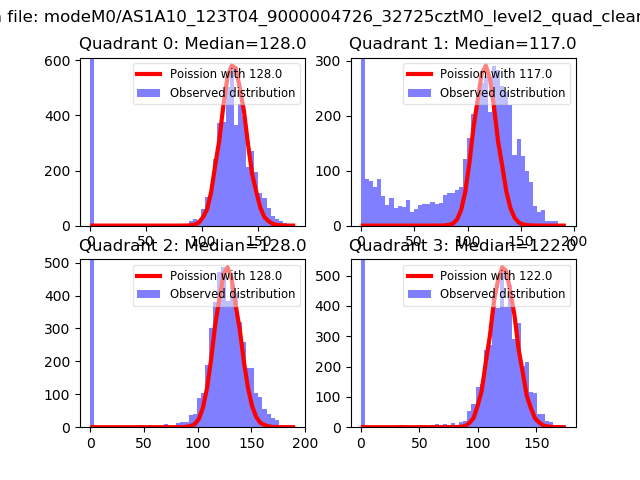

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

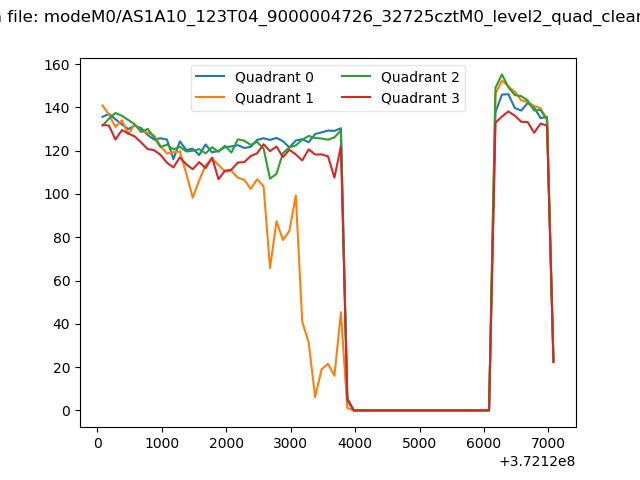

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

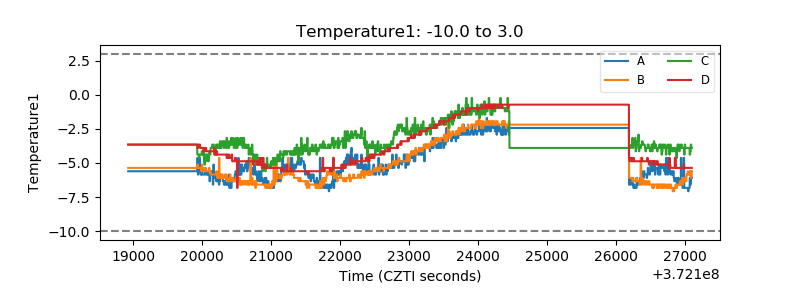

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

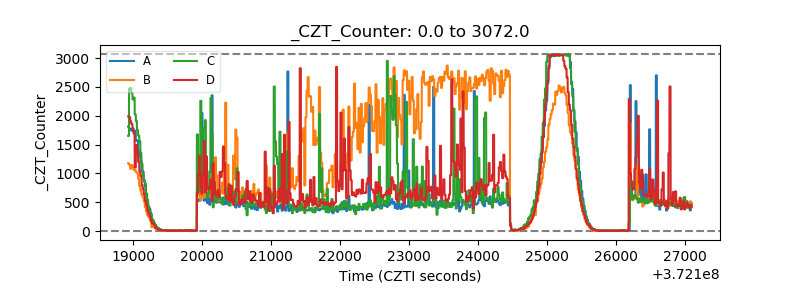

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

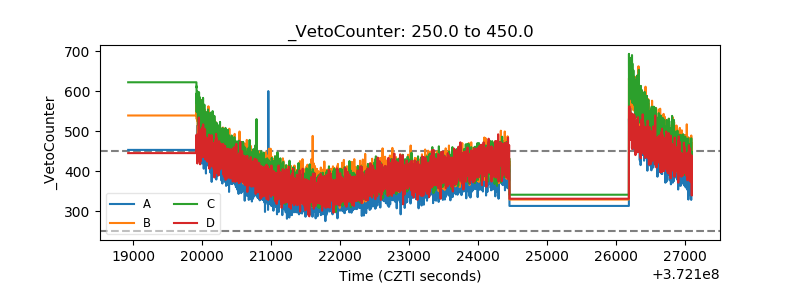

| Veto Counter |  |
