| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T04_9000004726_32731cztM0_level2.evt | modeM0/AS1A10_123T04_9000004726_32731cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,824,960 | 62,130,240 |
| Size | 531.0 MB | 59.3 MB |
| Events in quadrant A | 2,539,358 | 404,144 |
| Events in quadrant B | 2,995,182 | 399,887 |
| Events in quadrant C | 2,978,691 | 397,440 |
| Events in quadrant D | 8,002,920 | 319,581 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10739 | 3 |
| B | 0 | 12135 | 2 |
| C | 0 | 12175 | 2 |
| D | 0 | 27383 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5134 | 11 | 0.214258% |
| B | 5134 | 102 | 1.986755% |
| C | 5134 | 96 | 1.869887% |
| D | 5134 | 1510 | 29.411765% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7077 | 5135 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7077 | 5135 | 62 | 62 | 0.88% | 1.21% |  |
| C | 7077 | 5135 | 72 | 72 | 1.02% | 1.40% |  |
| D | 7077 | 5135 | 1446 | 1446 | 20.43% | 28.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 49988 | 405.12 | 610 | 598 | 121.9 |
| A | 15 | 237 | 45078 | 364.85 | 610 | 598 | 121.9 |
| A | 15 | 174 | 41615 | 336.44 | 610 | 598 | 121.9 |
| B | 12 | 1 | 176006 | 1525.84 | 604 | 592 | 115.0 |
| B | 0 | 199 | 99704 | 862.12 | 604 | 592 | 115.0 |
| B | 4 | 251 | 59631 | 513.55 | 604 | 592 | 115.0 |
| C | 8 | 79 | 230064 | 1695.34 | 586 | 590 | 135.4 |
| C | 3 | 233 | 202430 | 1491.18 | 586 | 590 | 135.4 |
| C | 8 | 35 | 84262 | 618.16 | 586 | 590 | 135.4 |
| D | 1 | 20 | 2798737 | 22191.68 | 530 | 518 | 126.1 |
| D | 12 | 218 | 887948 | 7037.89 | 530 | 518 | 126.1 |
| D | 8 | 195 | 520896 | 4126.93 | 530 | 518 | 126.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

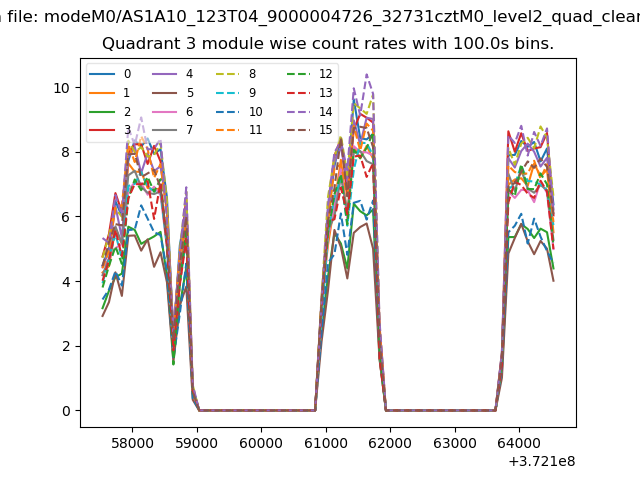

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

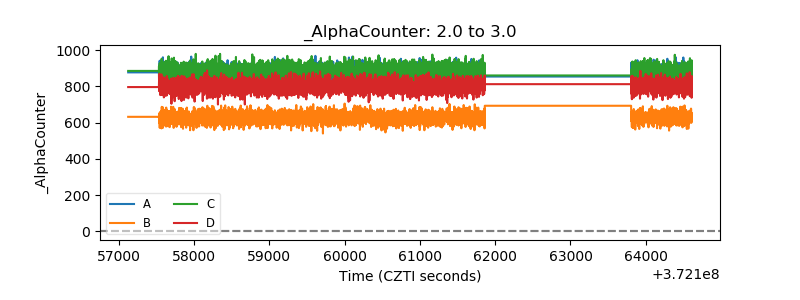

| Alpha Counter |  |
| _CPM_Rate |  |

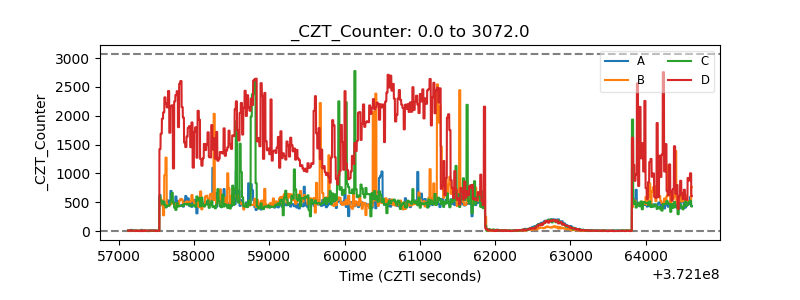

| CZT Counter |  |

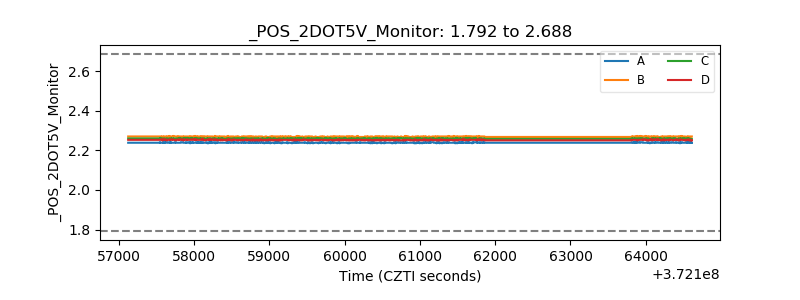

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

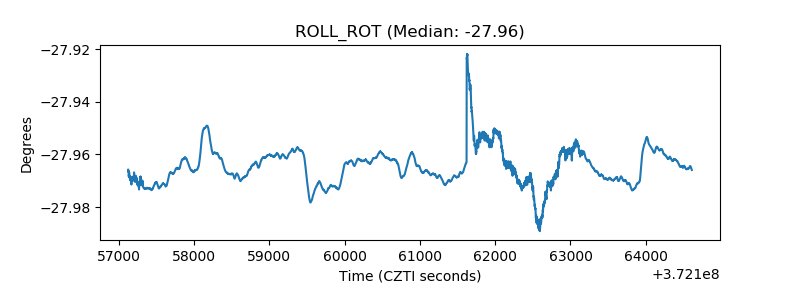

| _ROLL_ROT |  |

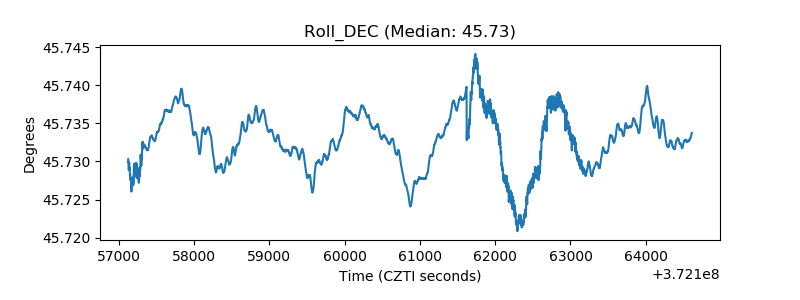

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
