| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T04_9000004726_32733cztM0_level2.evt | modeM0/AS1A10_123T04_9000004726_32733cztM0_level2_quad_clean.evt |
| Size (bytes) | 685,661,760 | 60,958,080 |
| Size | 653.9 MB | 58.1 MB |
| Events in quadrant A | 6,590,038 | 352,106 |
| Events in quadrant B | 5,325,565 | 362,753 |
| Events in quadrant C | 2,969,530 | 375,367 |
| Events in quadrant D | 5,487,857 | 348,279 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23427 | 3 |
| B | 0 | 19668 | 2 |
| C | 0 | 12587 | 2 |
| D | 0 | 20295 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5819 | 922 | 15.844647% |
| B | 5819 | 597 | 10.259495% |
| C | 5819 | 17 | 0.292146% |
| D | 5819 | 438 | 7.527067% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7193 | 5820 | 786 | 786 | 10.93% | 13.51% |  |
| B | 7193 | 5820 | 456 | 456 | 6.34% | 7.84% |  |
| C | 7193 | 5820 | 10 | 10 | 0.14% | 0.17% |  |
| D | 7193 | 5820 | 373 | 373 | 5.19% | 6.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 4011940 | 30669.7 | 647 | 635 | 130.8 |
| A | 15 | 237 | 59739 | 451.9 | 647 | 635 | 130.8 |
| A | 13 | 254 | 10645 | 76.53 | 647 | 635 | 130.8 |
| B | 12 | 1 | 2276034 | 18192.86 | 660 | 646 | 125.1 |
| B | 8 | 128 | 98847 | 785.17 | 660 | 646 | 125.1 |
| B | 0 | 199 | 85088 | 675.16 | 660 | 646 | 125.1 |
| C | 3 | 233 | 238122 | 1552.04 | 659 | 663 | 153.0 |
| C | 0 | 10 | 62657 | 405.19 | 659 | 663 | 153.0 |
| C | 0 | 239 | 56929 | 367.76 | 659 | 663 | 153.0 |
| D | 2 | 250 | 550466 | 3654.17 | 638 | 625 | 150.5 |
| D | 8 | 195 | 533582 | 3541.96 | 638 | 625 | 150.5 |
| D | 2 | 249 | 352957 | 2341.55 | 638 | 625 | 150.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

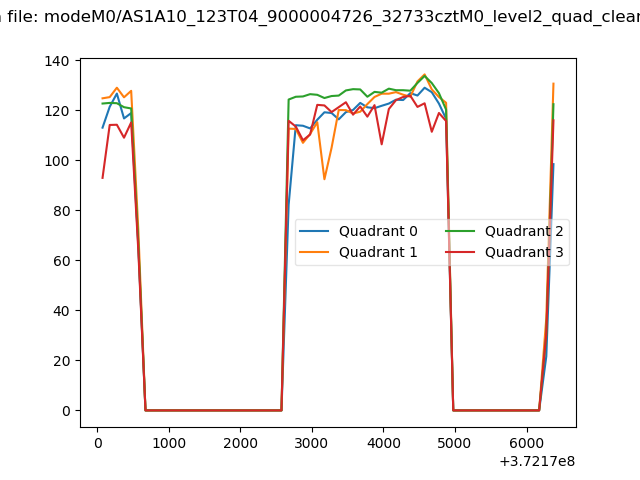

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

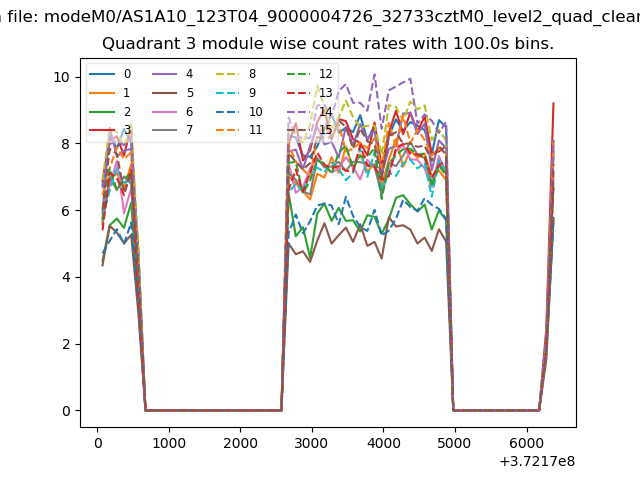

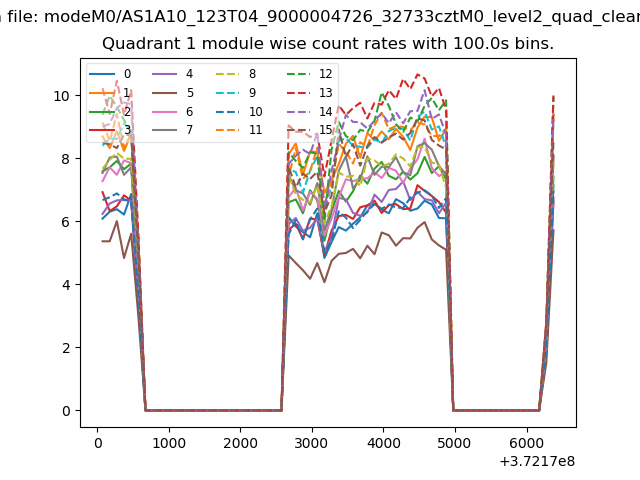

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

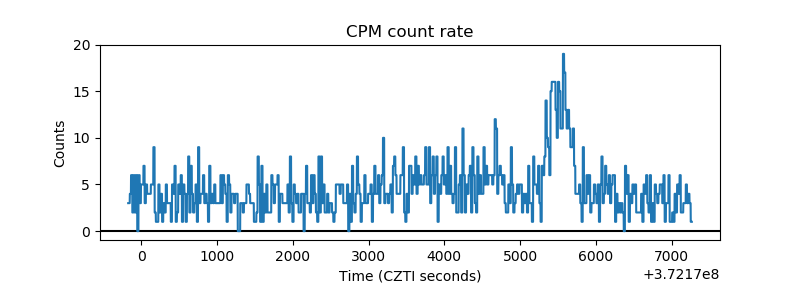

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

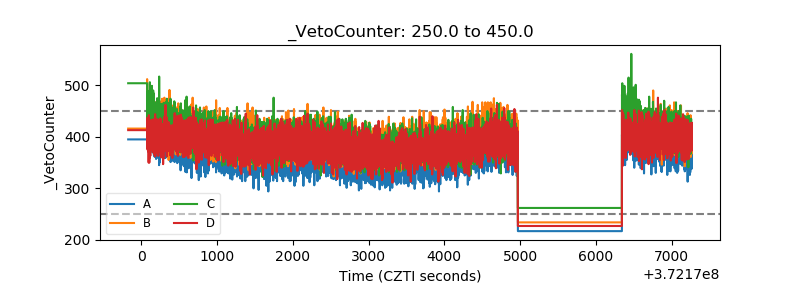

| Veto Counter |  |
