| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T04_9000004726_32740cztM0_level2.evt | modeM0/AS1A10_123T04_9000004726_32740cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,846,080 | 87,246,720 |
| Size | 465.2 MB | 83.2 MB |
| Events in quadrant A | 3,379,547 | 551,544 |
| Events in quadrant B | 2,870,843 | 582,268 |
| Events in quadrant C | 2,645,589 | 586,889 |
| Events in quadrant D | 5,509,013 | 540,346 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13673 | 1 |
| B | 0 | 12028 | 1 |
| C | 0 | 11533 | 1 |
| D | 0 | 20162 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5446 | 335 | 6.151304% |
| B | 5446 | 32 | 0.587587% |
| C | 5446 | 68 | 1.248623% |
| D | 5446 | 584 | 10.723467% |

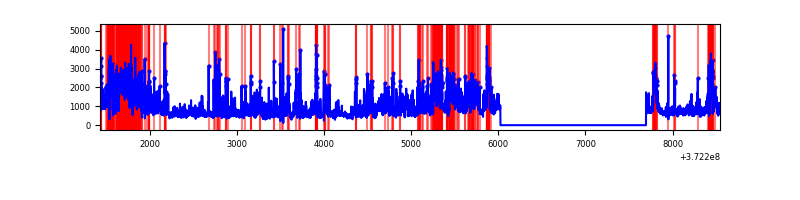

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

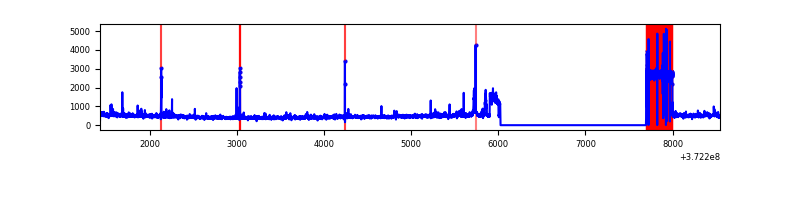

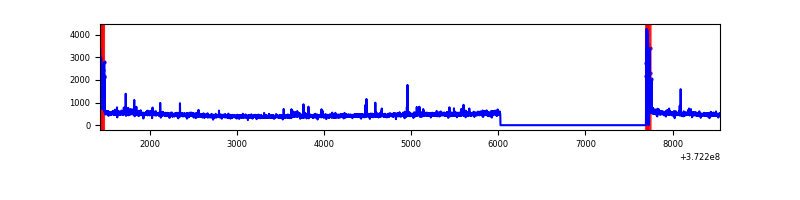

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7119 | 5447 | 292 | 292 | 4.10% | 5.36% |  |
| B | 7119 | 5447 | 10 | 10 | 0.14% | 0.18% |  |
| C | 7119 | 5446 | 45 | 45 | 0.63% | 0.83% |  |
| D | 7119 | 5447 | 479 | 479 | 6.73% | 8.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 953306 | 7745.33 | 605 | 593 | 123.0 |
| A | 15 | 237 | 48585 | 390.16 | 605 | 593 | 123.0 |
| A | 0 | 254 | 36002 | 287.87 | 605 | 593 | 123.0 |
| B | 3 | 26 | 133704 | 1093.58 | 639 | 625 | 121.7 |
| B | 4 | 251 | 69385 | 565.03 | 639 | 625 | 121.7 |
| B | 0 | 219 | 49713 | 403.38 | 639 | 625 | 121.7 |
| C | 0 | 10 | 164143 | 1130.51 | 617 | 623 | 144.6 |
| C | 8 | 79 | 16369 | 108.86 | 617 | 623 | 144.6 |
| C | 3 | 233 | 15067 | 99.86 | 617 | 623 | 144.6 |
| D | 7 | 80 | 934146 | 6664.78 | 588 | 576 | 140.1 |
| D | 8 | 195 | 927843 | 6619.78 | 588 | 576 | 140.1 |
| D | 2 | 250 | 372710 | 2656.67 | 588 | 576 | 140.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

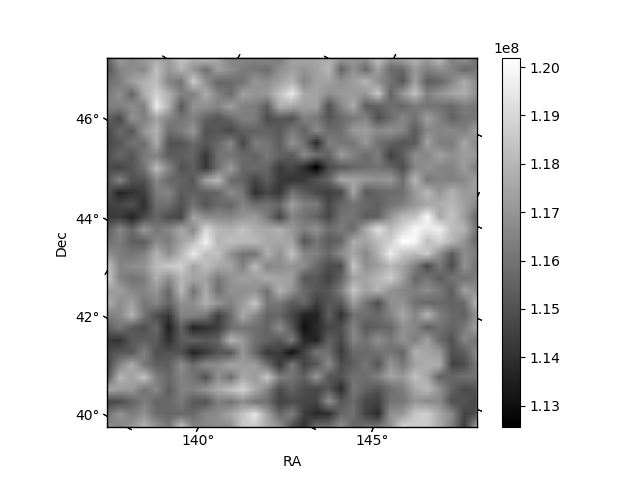

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

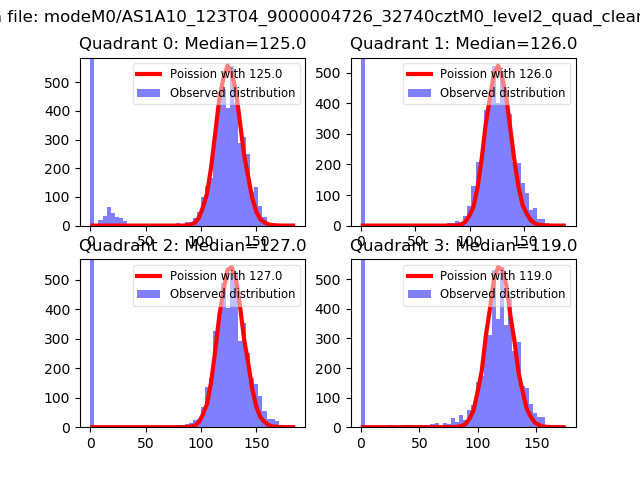

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

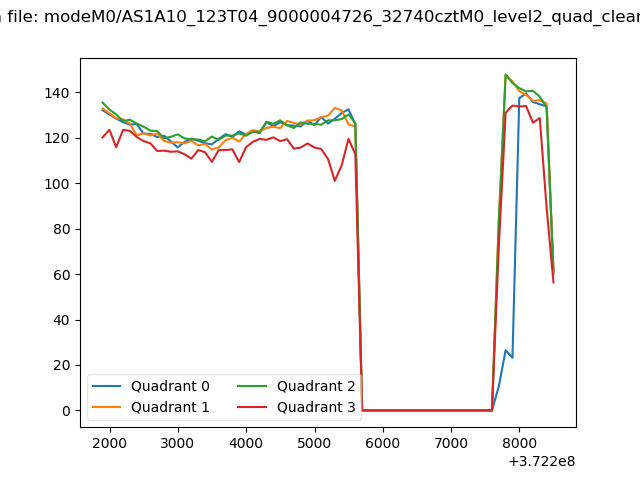

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

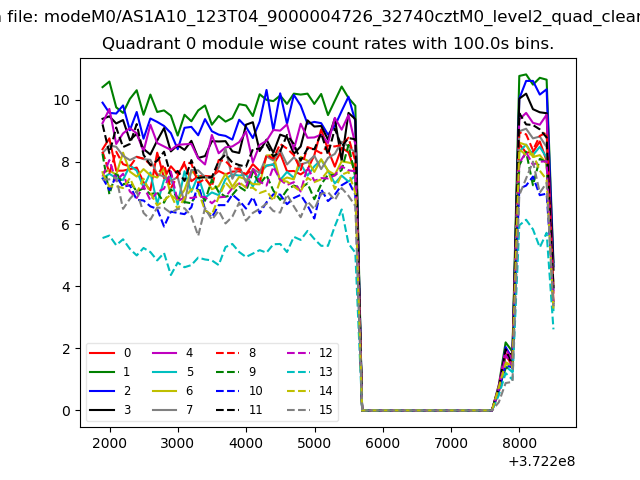

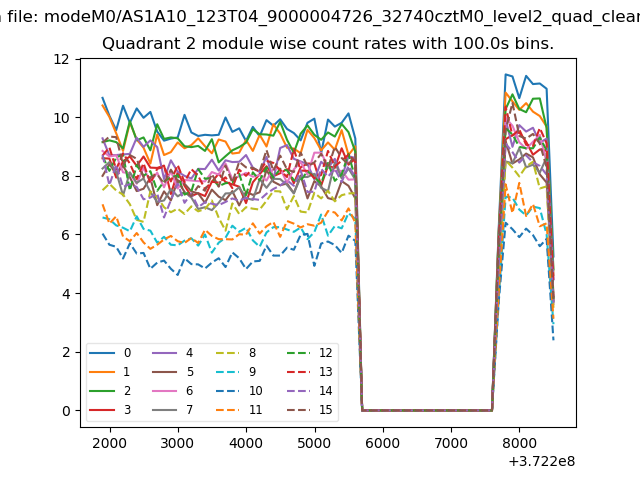

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

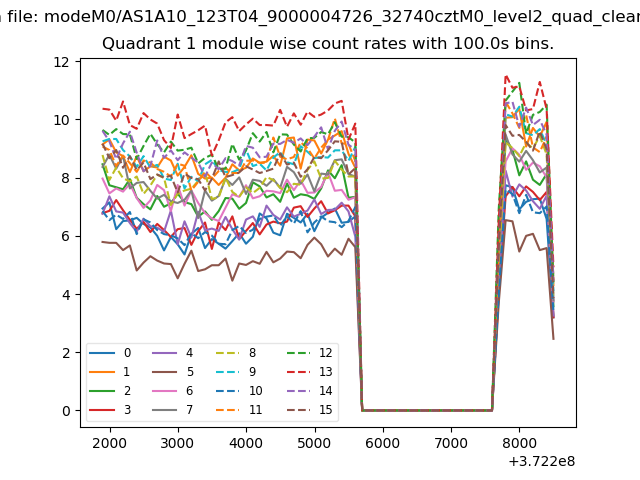

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

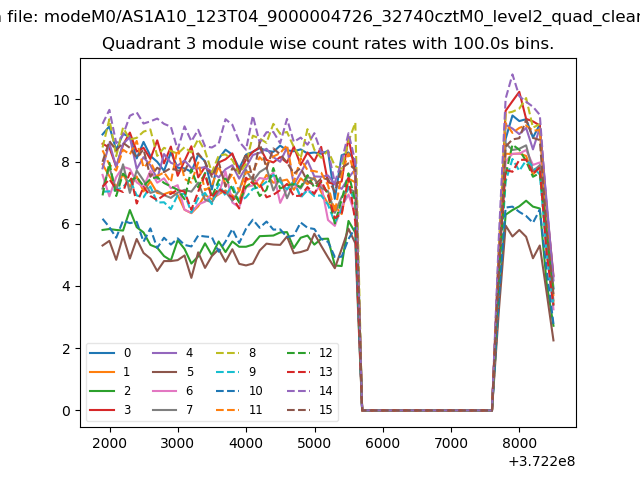

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

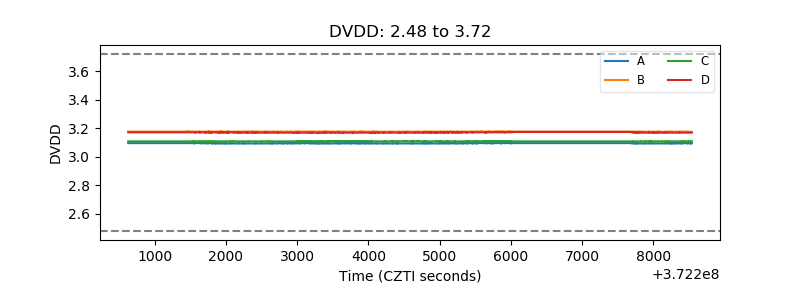

| D_VDD |  |

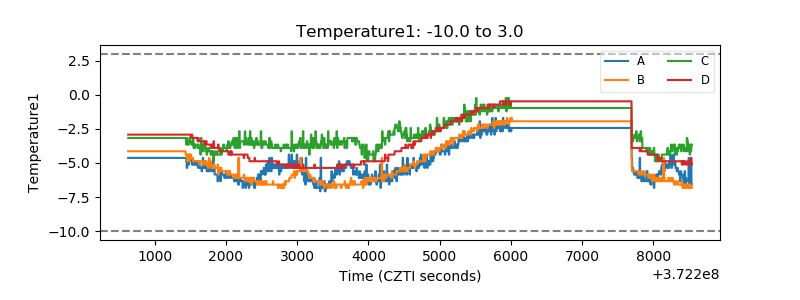

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

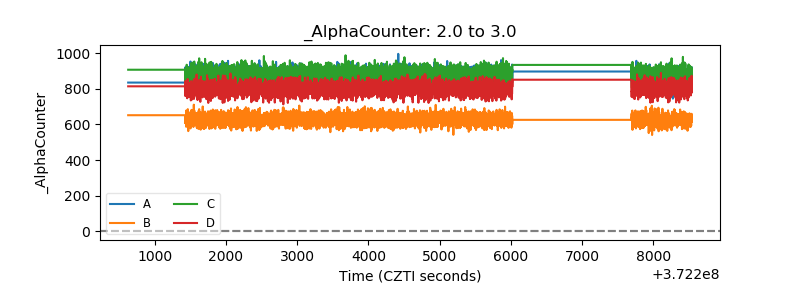

| Alpha Counter |  |

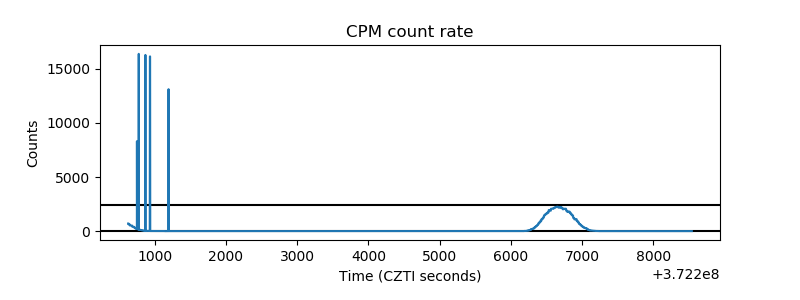

| _CPM_Rate |  |

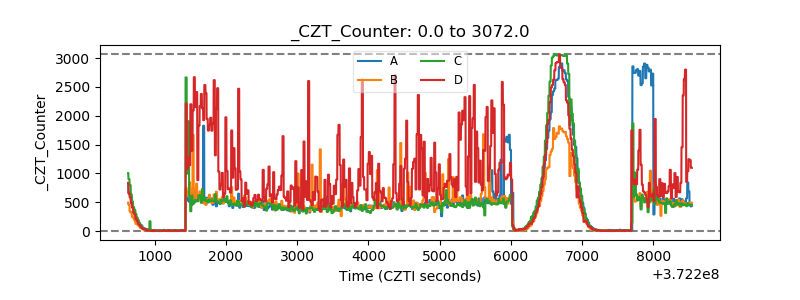

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

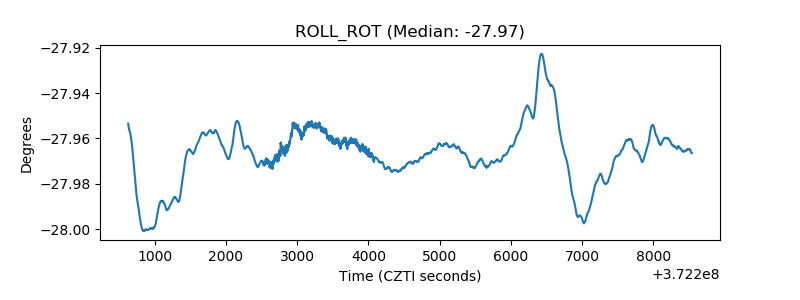

| _ROLL_ROT |  |

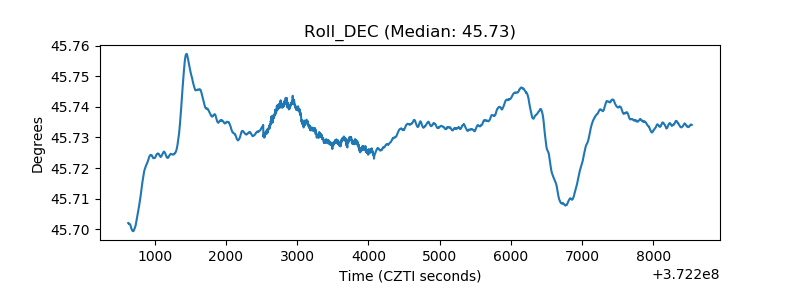

| _Roll_DEC |  |

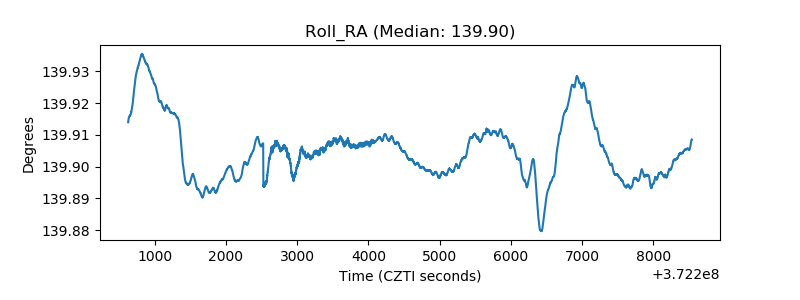

| _Roll_RA |  |

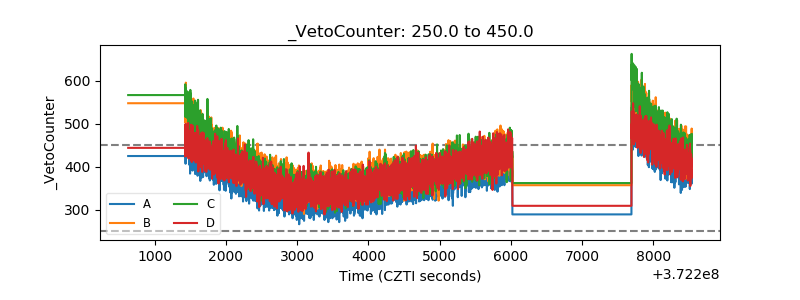

| Veto Counter |  |
