| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T04_9000004728_32744cztM0_level2.evt | modeM0/AS1A10_057T04_9000004728_32744cztM0_level2_quad_clean.evt |
| Size (bytes) | 409,754,880 | 57,988,800 |
| Size | 390.8 MB | 55.3 MB |
| Events in quadrant A | 2,271,371 | 366,312 |
| Events in quadrant B | 2,861,045 | 368,903 |
| Events in quadrant C | 2,764,638 | 355,697 |
| Events in quadrant D | 4,193,225 | 334,555 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9491 | 2 |
| B | 0 | 11363 | 1 |
| C | 0 | 11092 | 1 |
| D | 0 | 15770 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 96 | 0 |
| B | 0 | 96 | 0 |
| C | 0 | 96 | 0 |
| D | 0 | 96 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4699 | 5 | 0.106406% |
| B | 4699 | 79 | 1.681209% |
| C | 4699 | 62 | 1.319430% |
| D | 4699 | 293 | 6.235369% |

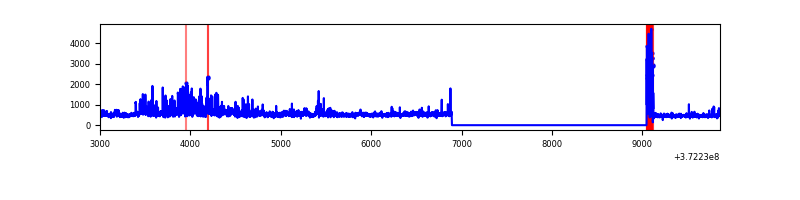

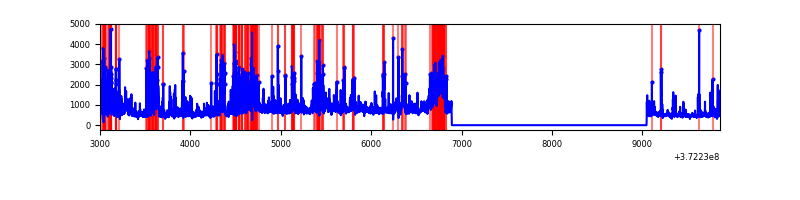

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6853 | 4700 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6853 | 4700 | 41 | 41 | 0.60% | 0.87% |  |
| C | 6853 | 4700 | 33 | 33 | 0.48% | 0.70% |  |
| D | 6853 | 4700 | 255 | 255 | 3.72% | 5.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 13046 | 107.68 | 580 | 569 | 115.9 |
| A | 13 | 254 | 8173 | 65.62 | 580 | 569 | 115.9 |
| A | 12 | 194 | 6170 | 48.34 | 580 | 569 | 115.9 |
| B | 4 | 251 | 209059 | 1943.21 | 571 | 560 | 107.3 |
| B | 0 | 219 | 93291 | 864.25 | 571 | 560 | 107.3 |
| B | 0 | 197 | 57157 | 527.48 | 571 | 560 | 107.3 |
| C | 8 | 229 | 434112 | 3415.47 | 550 | 555 | 126.9 |
| C | 0 | 10 | 123266 | 966.69 | 550 | 555 | 126.9 |
| C | 8 | 79 | 17399 | 132.69 | 550 | 555 | 126.9 |
| D | 2 | 250 | 472044 | 3451.27 | 545 | 532 | 136.6 |
| D | 8 | 195 | 387575 | 2832.99 | 545 | 532 | 136.6 |
| D | 2 | 249 | 356034 | 2602.12 | 545 | 532 | 136.6 |

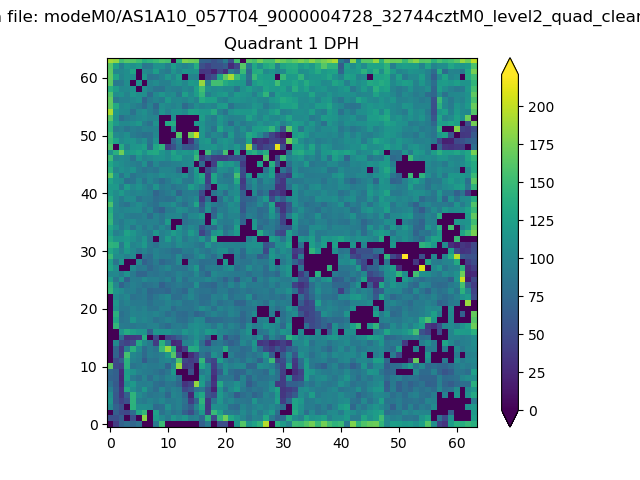

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

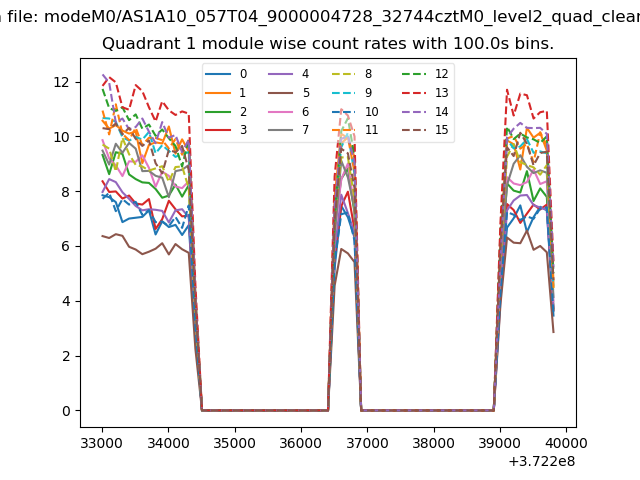

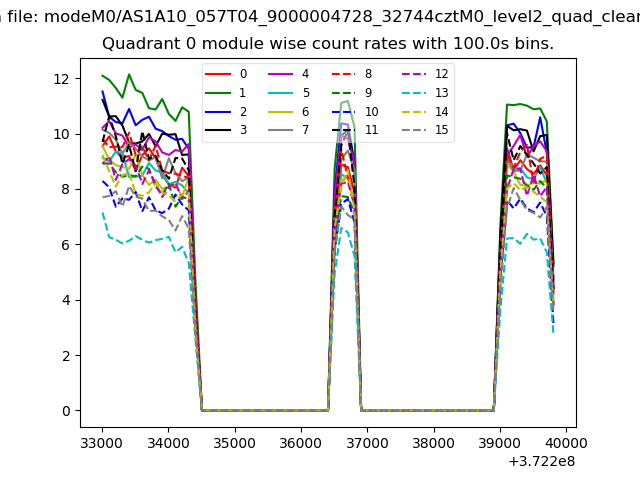

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

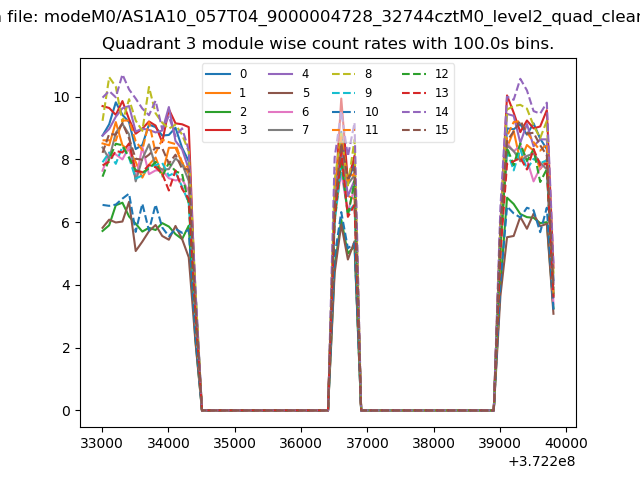

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
