| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T04_9000004728_32745cztM0_level2.evt | modeM0/AS1A10_057T04_9000004728_32745cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,486,720 | 63,339,840 |
| Size | 403.9 MB | 60.4 MB |
| Events in quadrant A | 3,271,268 | 396,622 |
| Events in quadrant B | 2,920,436 | 402,073 |
| Events in quadrant C | 2,508,218 | 390,558 |
| Events in quadrant D | 3,780,979 | 373,132 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12872 | 3 |
| B | 0 | 11750 | 2 |
| C | 0 | 10655 | 2 |
| D | 0 | 14769 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5066 | 356 | 7.027240% |
| B | 5066 | 79 | 1.559416% |
| C | 5066 | 55 | 1.085669% |
| D | 5066 | 144 | 2.842479% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

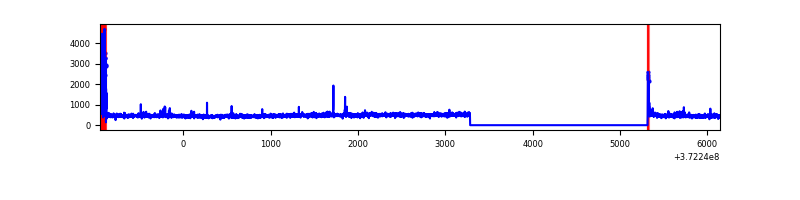

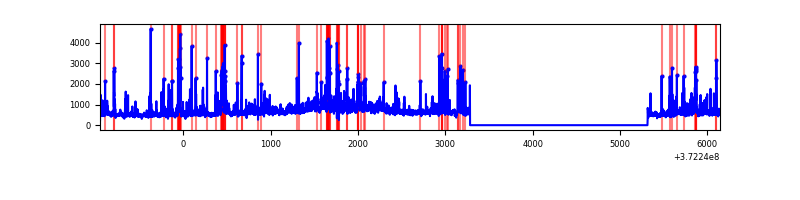

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7099 | 5067 | 290 | 290 | 4.09% | 5.72% |  |
| B | 7099 | 5067 | 41 | 41 | 0.58% | 0.81% |  |
| C | 7099 | 5067 | 35 | 35 | 0.49% | 0.69% |  |
| D | 7099 | 5067 | 113 | 113 | 1.59% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 957925 | 8138.97 | 588 | 577 | 117.6 |
| A | 15 | 237 | 17972 | 147.88 | 588 | 577 | 117.6 |
| A | 12 | 16 | 10926 | 87.98 | 588 | 577 | 117.6 |
| B | 4 | 251 | 188182 | 1644.13 | 604 | 592 | 114.1 |
| B | 0 | 219 | 108308 | 944.08 | 604 | 592 | 114.1 |
| B | 0 | 199 | 47125 | 407.84 | 604 | 592 | 114.1 |
| C | 0 | 10 | 147565 | 1090.5 | 584 | 588 | 134.8 |
| C | 8 | 229 | 36878 | 269.25 | 584 | 588 | 134.8 |
| C | 3 | 233 | 12631 | 89.35 | 584 | 588 | 134.8 |
| D | 8 | 195 | 397248 | 2734.98 | 583 | 570 | 145.0 |
| D | 2 | 250 | 318995 | 2195.45 | 583 | 570 | 145.0 |
| D | 10 | 203 | 234219 | 1610.94 | 583 | 570 | 145.0 |

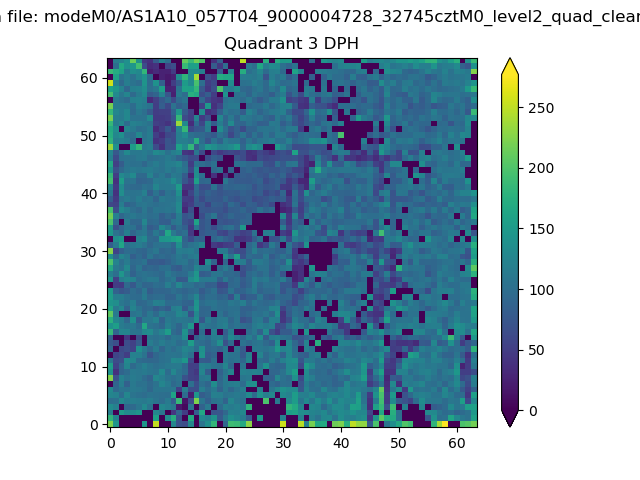

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

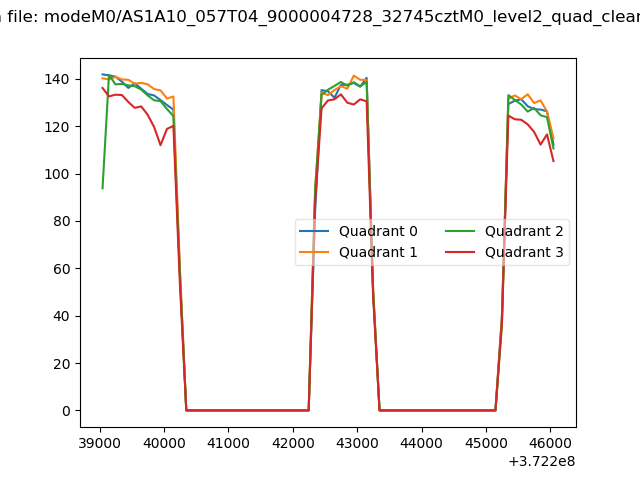

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

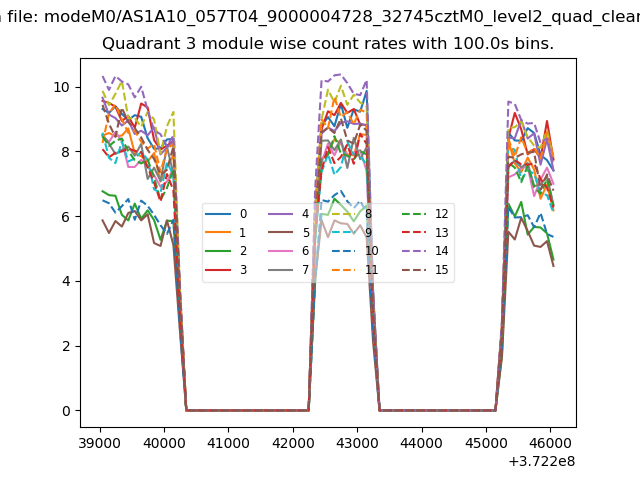

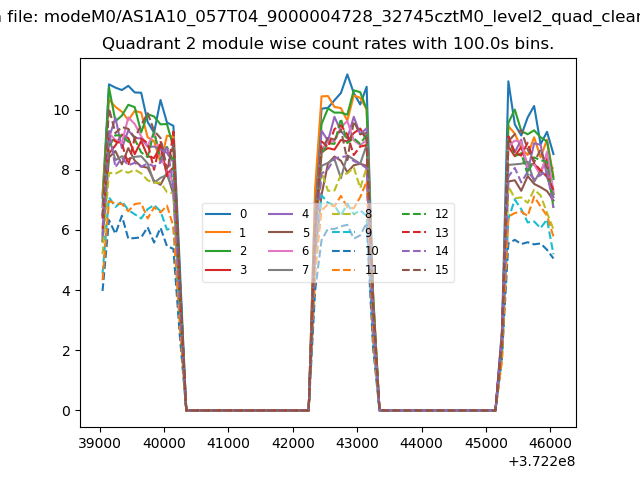

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

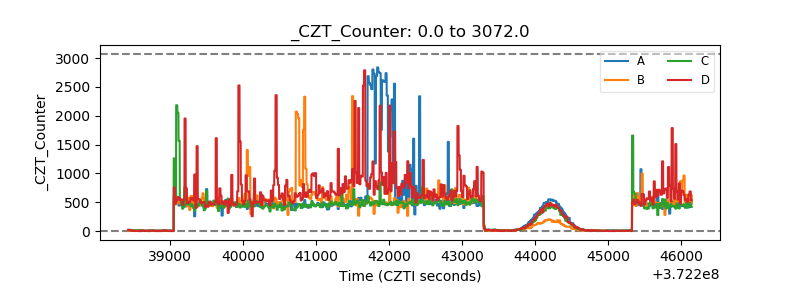

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

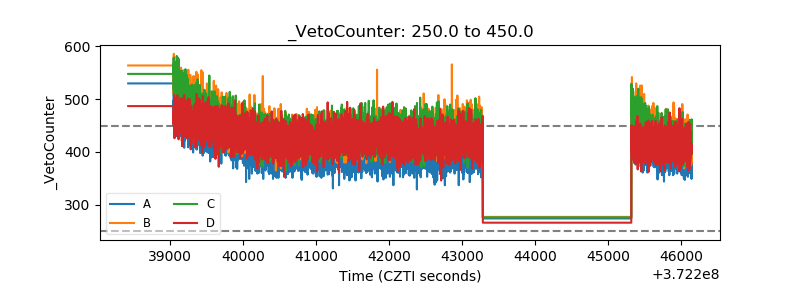

| Veto Counter |  |
