| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T04_9000004728_32751cztM0_level2.evt | modeM0/AS1A10_057T04_9000004728_32751cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,263,006,720 | 220,412,160 |
| Size | 1.2 GB | 210.2 MB |
| Events in quadrant A | 9,640,004 | 1,411,505 |
| Events in quadrant B | 8,283,390 | 1,418,648 |
| Events in quadrant C | 7,470,679 | 1,426,113 |
| Events in quadrant D | 11,796,380 | 1,336,319 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39093 | 4 |
| B | 0 | 34936 | 3 |
| C | 0 | 32775 | 3 |
| D | 0 | 45529 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47 | 0 |
| B | 0 | 47 | 0 |
| C | 0 | 47 | 0 |
| D | 0 | 48 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15709 | 656 | 4.175950% |
| B | 15709 | 89 | 0.566554% |
| C | 15709 | 129 | 0.821185% |
| D | 15709 | 777 | 4.946209% |

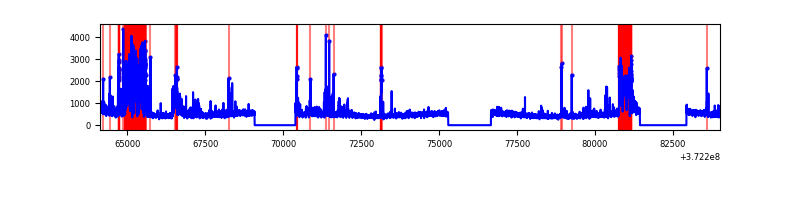

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19887 | 15712 | 451 | 451 | 2.27% | 2.87% |  |
| B | 19887 | 15712 | 42 | 42 | 0.21% | 0.27% |  |
| C | 19887 | 15712 | 77 | 77 | 0.39% | 0.49% |  |
| D | 19887 | 15712 | 659 | 659 | 3.31% | 4.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 2560171 | 7171.13 | 1796 | 1759 | 356.8 |
| A | 9 | 143 | 83906 | 230.25 | 1796 | 1759 | 356.8 |
| A | 13 | 254 | 30032 | 79.25 | 1796 | 1759 | 356.8 |
| B | 0 | 219 | 358793 | 1034.58 | 1819 | 1777 | 345.1 |
| B | 12 | 1 | 183273 | 525.95 | 1819 | 1777 | 345.1 |
| B | 3 | 26 | 146430 | 419.18 | 1819 | 1777 | 345.1 |
| C | 0 | 10 | 274937 | 671.29 | 1765 | 1783 | 406.9 |
| C | 8 | 79 | 99293 | 239.64 | 1765 | 1783 | 406.9 |
| C | 8 | 229 | 87624 | 210.96 | 1765 | 1783 | 406.9 |
| D | 2 | 250 | 1610780 | 3716.3 | 1727 | 1687 | 433.0 |
| D | 3 | 13 | 611479 | 1408.35 | 1727 | 1687 | 433.0 |
| D | 12 | 6 | 561184 | 1292.19 | 1727 | 1687 | 433.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

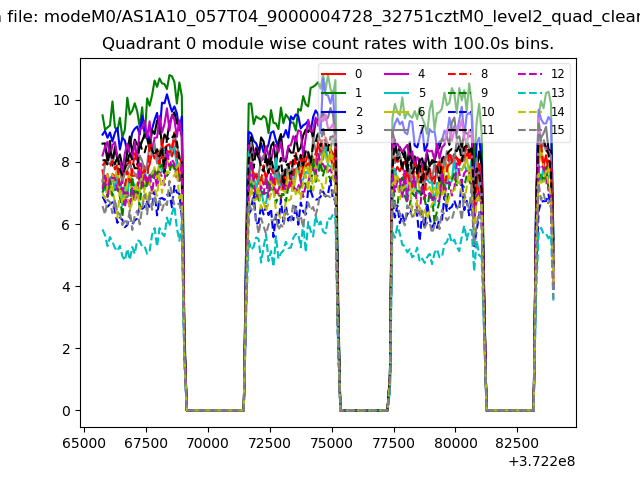

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

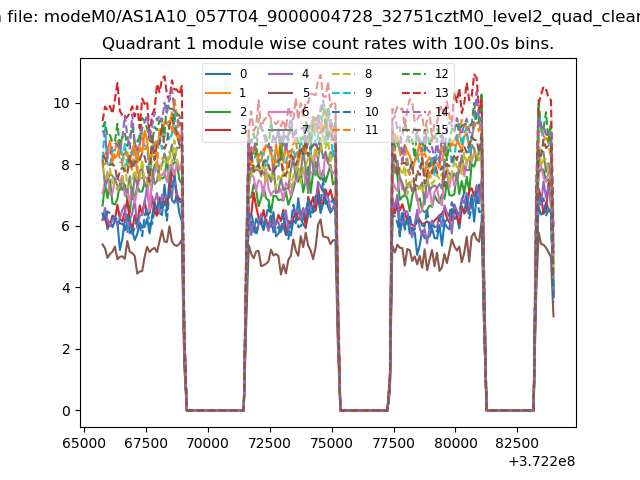

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

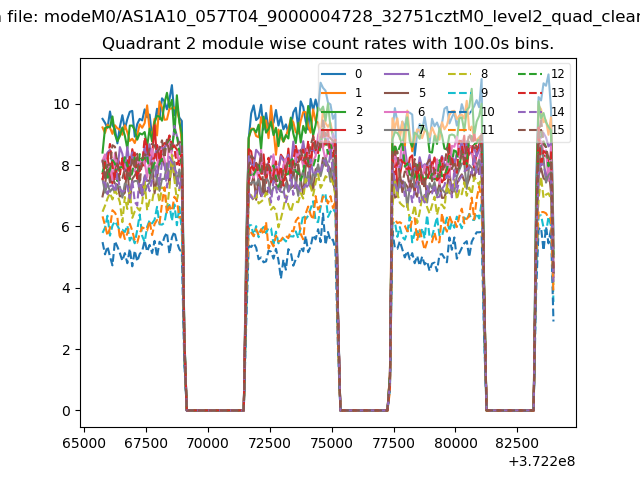

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

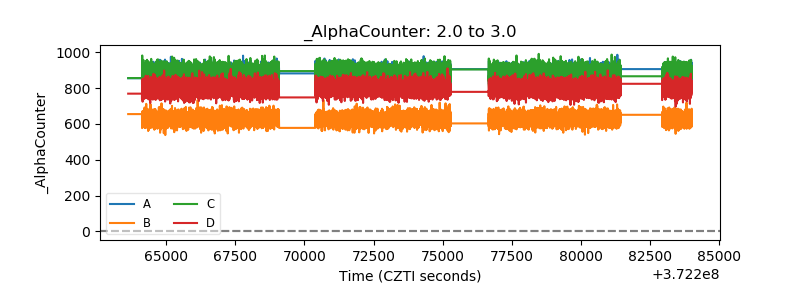

| Alpha Counter |  |
| _CPM_Rate |  |

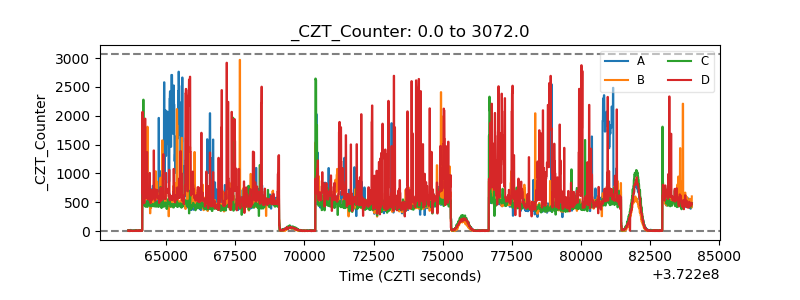

| CZT Counter |  |

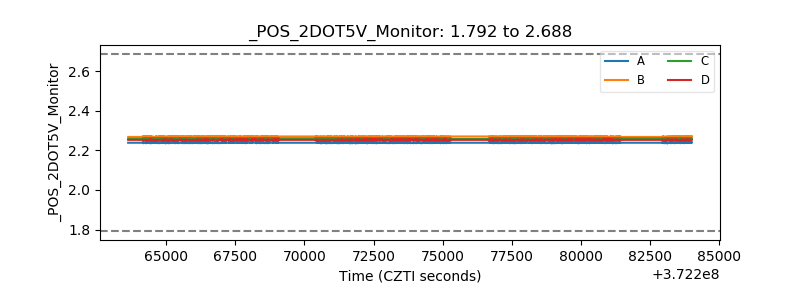

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

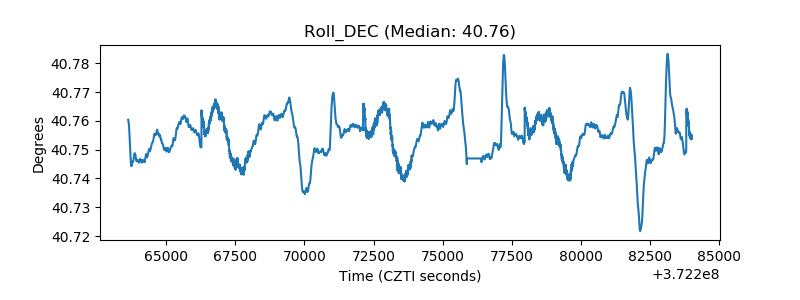

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
