| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T04_9000004728_32755cztM0_level2.evt | modeM0/AS1A10_057T04_9000004728_32755cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,723,520 | 83,508,480 |
| Size | 386.0 MB | 79.6 MB |
| Events in quadrant A | 2,446,561 | 545,941 |
| Events in quadrant B | 2,671,494 | 561,636 |
| Events in quadrant C | 2,588,515 | 550,506 |
| Events in quadrant D | 4,199,767 | 509,484 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10573 | 3 |
| B | 0 | 11210 | 2 |
| C | 0 | 11078 | 2 |
| D | 0 | 16090 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5161 | 15 | 0.290641% |
| B | 5161 | 29 | 0.561907% |
| C | 5161 | 41 | 0.794420% |
| D | 5161 | 490 | 9.494284% |

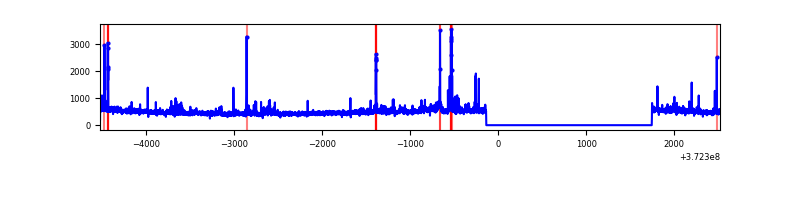

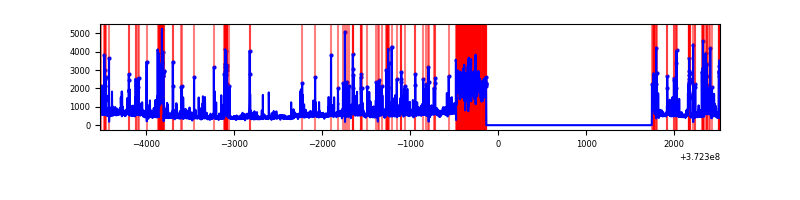

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7043 | 5162 | 9 | 9 | 0.13% | 0.17% |  |
| B | 7043 | 5162 | 20 | 20 | 0.28% | 0.39% |  |
| C | 7043 | 5162 | 28 | 28 | 0.40% | 0.54% |  |
| D | 7043 | 5162 | 394 | 394 | 5.59% | 7.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 52542 | 422.68 | 614 | 603 | 122.9 |
| A | 15 | 237 | 11229 | 86.48 | 614 | 603 | 122.9 |
| A | 13 | 254 | 8570 | 64.84 | 614 | 603 | 122.9 |
| B | 5 | 172 | 82709 | 697.51 | 620 | 605 | 117.7 |
| B | 0 | 219 | 39435 | 329.88 | 620 | 605 | 117.7 |
| B | 3 | 26 | 34435 | 287.4 | 620 | 605 | 117.7 |
| C | 0 | 10 | 111494 | 805.6 | 596 | 601 | 137.7 |
| C | 8 | 79 | 49006 | 351.65 | 596 | 601 | 137.7 |
| C | 9 | 187 | 31796 | 226.62 | 596 | 601 | 137.7 |
| D | 2 | 250 | 526169 | 3642.87 | 565 | 554 | 144.3 |
| D | 12 | 33 | 497961 | 3447.37 | 565 | 554 | 144.3 |
| D | 7 | 80 | 296109 | 2048.4 | 565 | 554 | 144.3 |

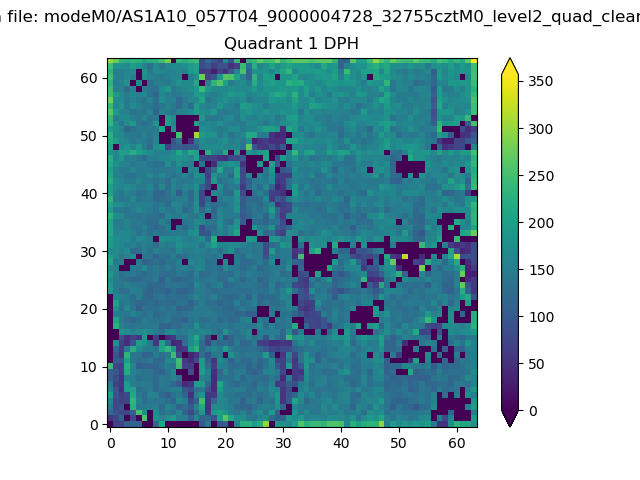

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

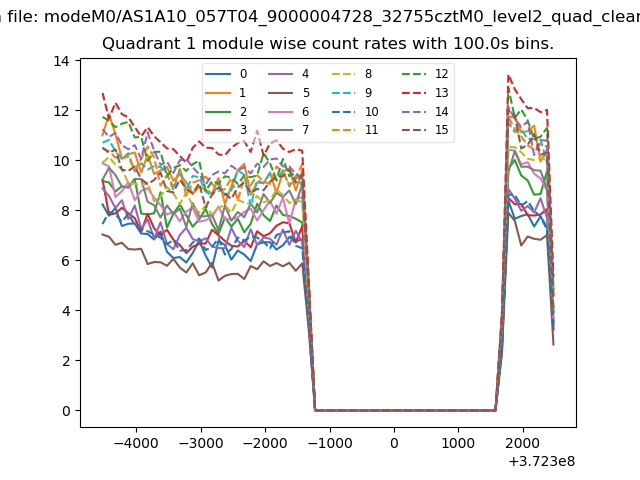

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

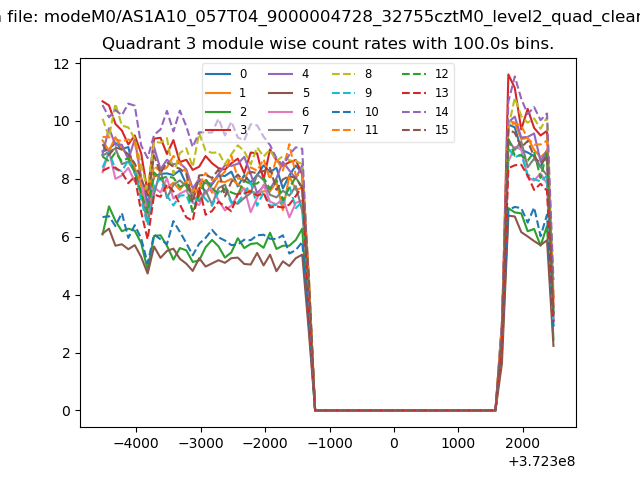

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

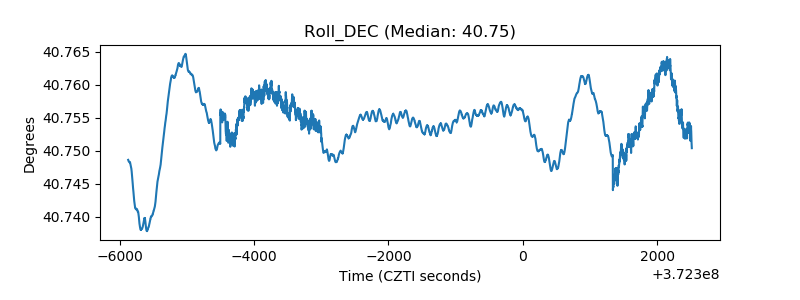

| _Roll_DEC |  |

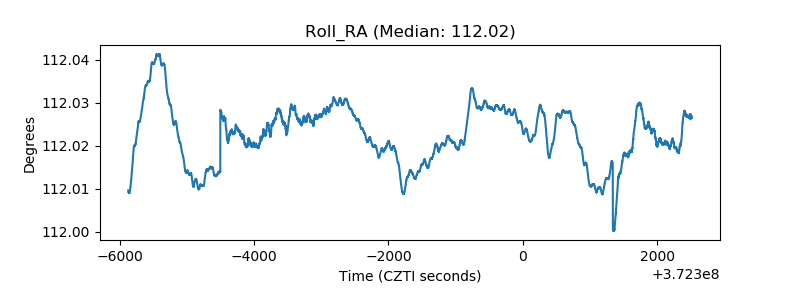

| _Roll_RA |  |

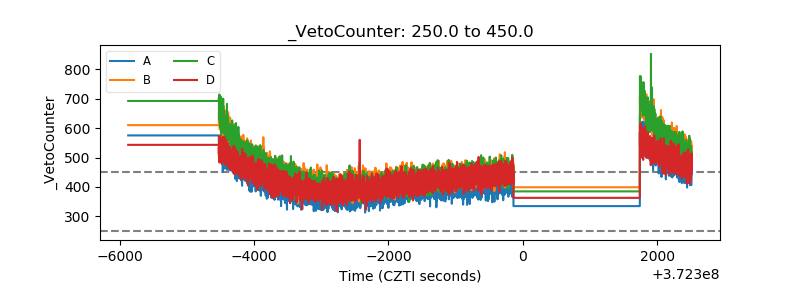

| Veto Counter |  |
