| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T04_9000004728_32757cztM0_level2.evt | modeM0/AS1A10_057T04_9000004728_32757cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,112,320 | 76,034,880 |
| Size | 446.4 MB | 72.5 MB |
| Events in quadrant A | 2,745,592 | 493,410 |
| Events in quadrant B | 2,955,728 | 501,104 |
| Events in quadrant C | 2,580,630 | 494,345 |
| Events in quadrant D | 5,544,612 | 451,554 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11231 | 3 |
| B | 0 | 12011 | 2 |
| C | 0 | 10826 | 2 |
| D | 0 | 20106 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5164 | 11 | 0.213013% |
| B | 5164 | 86 | 1.665376% |
| C | 5164 | 22 | 0.426026% |
| D | 5164 | 425 | 8.230054% |

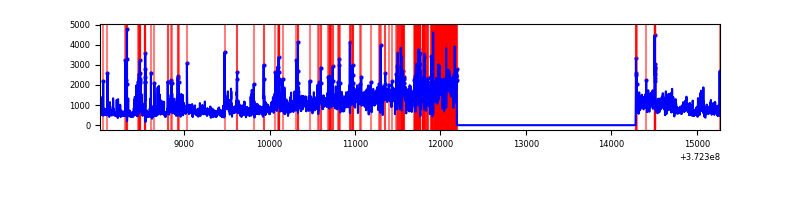

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7257 | 5165 | 5 | 5 | 0.07% | 0.10% |  |
| B | 7257 | 5165 | 60 | 60 | 0.83% | 1.16% |  |
| C | 7257 | 5165 | 24 | 24 | 0.33% | 0.46% |  |
| D | 7257 | 5165 | 306 | 306 | 4.22% | 5.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 110462 | 861.15 | 641 | 631 | 127.5 |
| A | 0 | 254 | 61084 | 473.99 | 641 | 631 | 127.5 |
| A | 12 | 16 | 59905 | 464.75 | 641 | 631 | 127.5 |
| B | 12 | 1 | 172754 | 1419.44 | 642 | 630 | 121.3 |
| B | 0 | 197 | 58914 | 480.65 | 642 | 630 | 121.3 |
| B | 3 | 32 | 51660 | 420.82 | 642 | 630 | 121.3 |
| C | 0 | 10 | 109857 | 770.84 | 617 | 621 | 141.7 |
| C | 4 | 254 | 28971 | 200.06 | 617 | 621 | 141.7 |
| C | 6 | 96 | 10461 | 69.44 | 617 | 621 | 141.7 |
| D | 8 | 195 | 2421661 | 15956.71 | 594 | 580 | 151.7 |
| D | 7 | 80 | 271107 | 1782.97 | 594 | 580 | 151.7 |
| D | 2 | 250 | 209090 | 1374.23 | 594 | 580 | 151.7 |

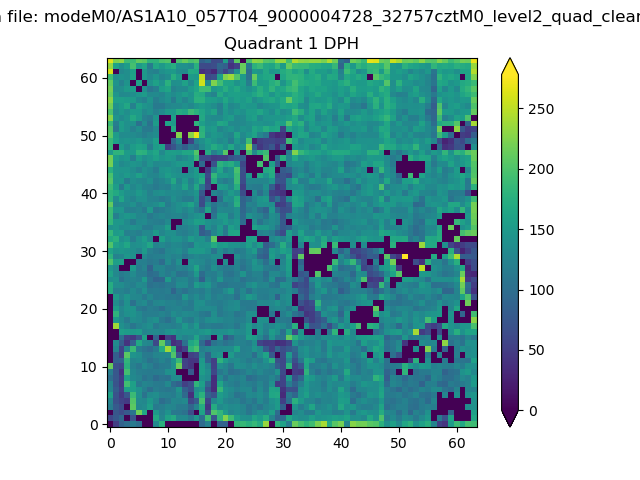

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

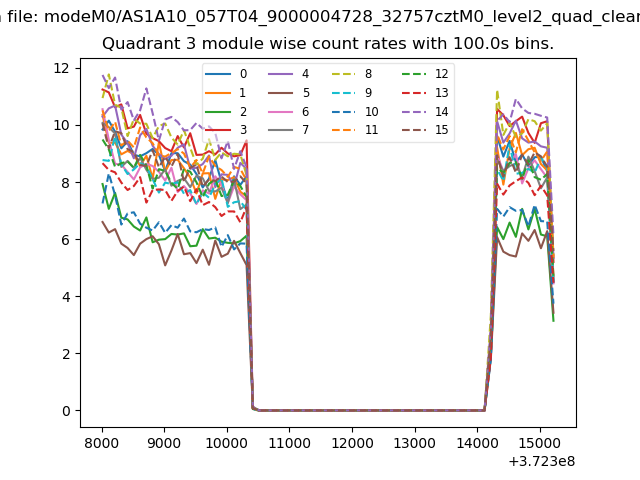

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

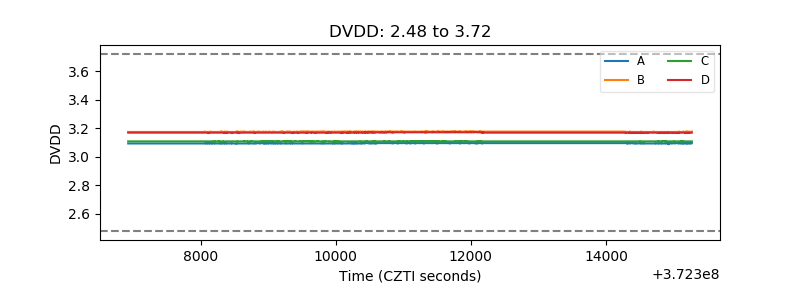

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

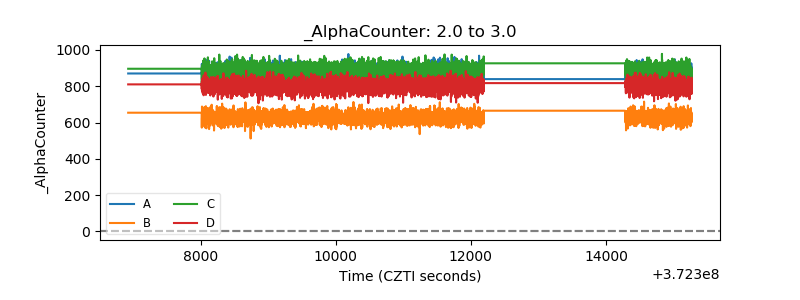

| Alpha Counter |  |
| _CPM_Rate |  |

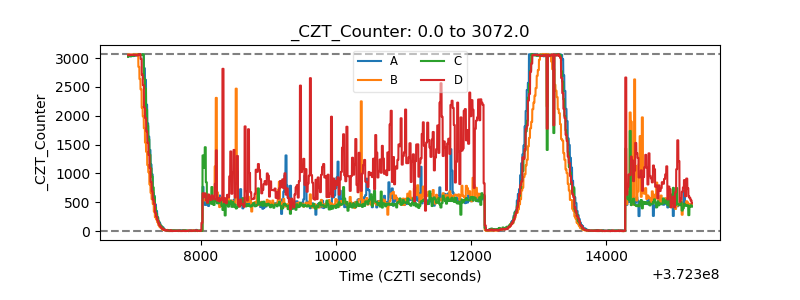

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

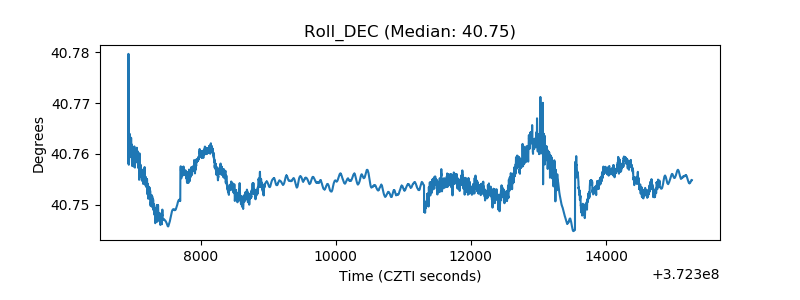

| _Roll_DEC |  |
| _Roll_RA |  |

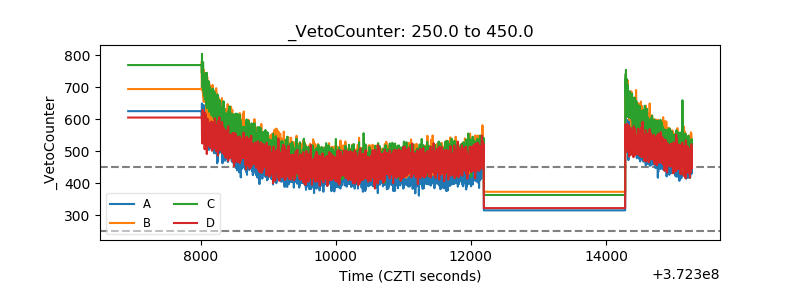

| Veto Counter |  |
