| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T04_9000004728_32761cztM0_level2.evt | modeM0/AS1A10_057T04_9000004728_32761cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,382,400 | 60,131,520 |
| Size | 533.5 MB | 57.3 MB |
| Events in quadrant A | 2,705,914 | 369,377 |
| Events in quadrant B | 2,968,871 | 372,536 |
| Events in quadrant C | 2,547,820 | 369,096 |
| Events in quadrant D | 8,344,536 | 322,700 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11549 | 3 |
| B | 0 | 12223 | 2 |
| C | 0 | 11256 | 2 |
| D | 0 | 28632 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5527 | 12 | 0.217116% |
| B | 5527 | 55 | 0.995115% |
| C | 5527 | 17 | 0.307581% |
| D | 5527 | 1035 | 18.726253% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

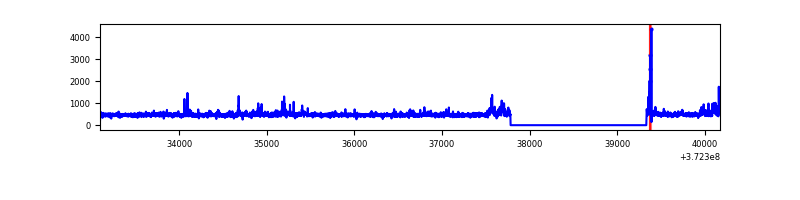

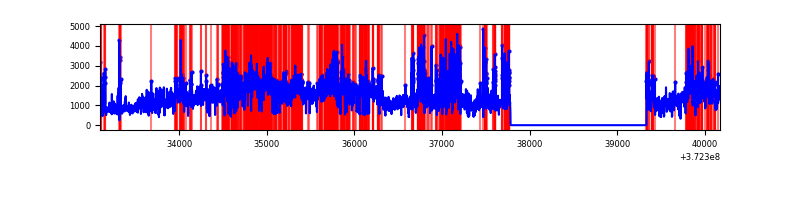

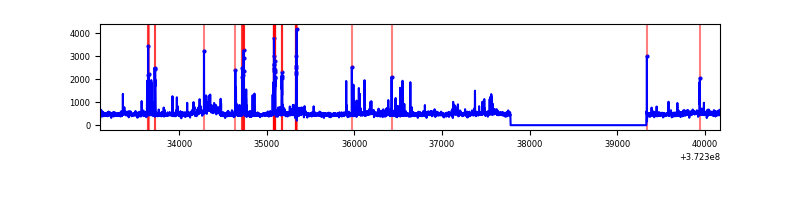

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7079 | 5528 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7079 | 5528 | 38 | 38 | 0.54% | 0.69% |  |
| C | 7079 | 5528 | 12 | 12 | 0.17% | 0.22% |  |
| D | 7079 | 5528 | 1009 | 1009 | 14.25% | 18.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 116657 | 889.59 | 647 | 635 | 130.4 |
| A | 0 | 254 | 45842 | 346.62 | 647 | 635 | 130.4 |
| A | 12 | 194 | 20351 | 151.17 | 647 | 635 | 130.4 |
| B | 5 | 172 | 117694 | 949.54 | 647 | 633 | 123.3 |
| B | 0 | 219 | 86079 | 693.09 | 647 | 633 | 123.3 |
| B | 0 | 197 | 65413 | 525.46 | 647 | 633 | 123.3 |
| C | 0 | 10 | 46656 | 315.97 | 625 | 630 | 145.7 |
| C | 3 | 233 | 41591 | 281.2 | 625 | 630 | 145.7 |
| C | 8 | 35 | 4662 | 27.68 | 625 | 630 | 145.7 |
| D | 8 | 195 | 4229644 | 28280.13 | 584 | 571 | 149.5 |
| D | 2 | 250 | 572301 | 3823.2 | 584 | 571 | 149.5 |
| D | 7 | 80 | 433578 | 2895.55 | 584 | 571 | 149.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

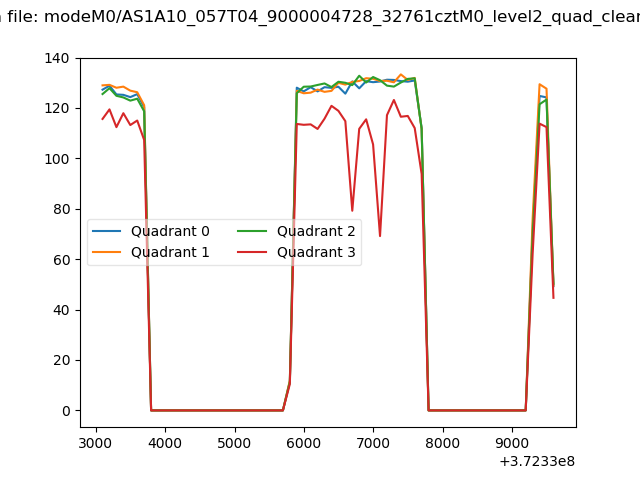

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

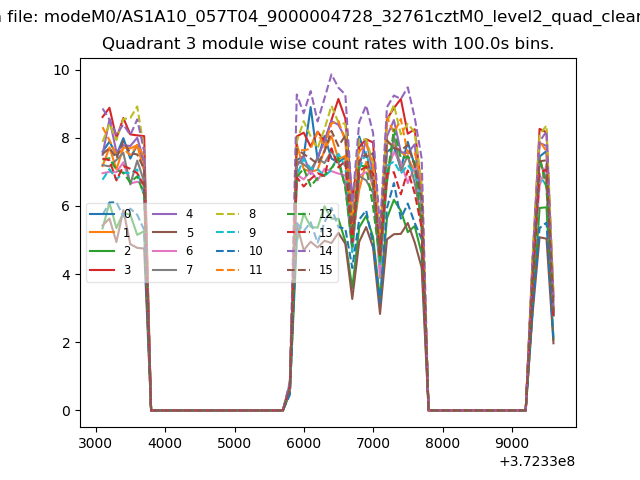

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

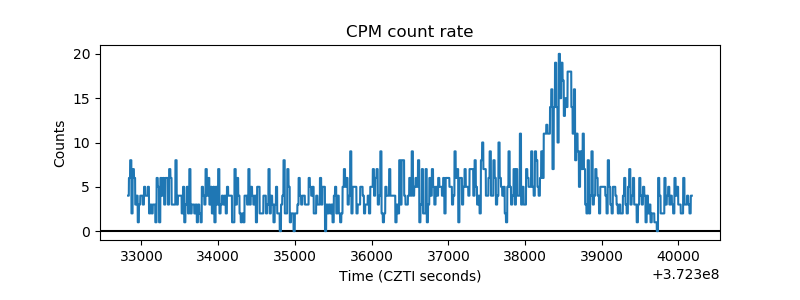

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

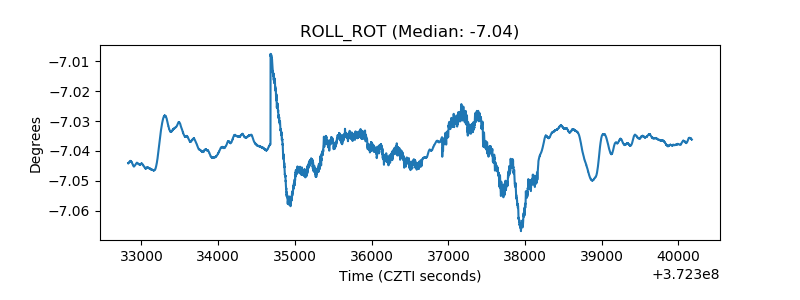

| _ROLL_ROT |  |
| _Roll_DEC |  |

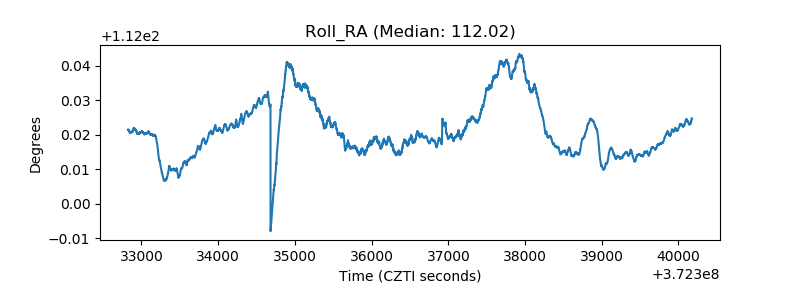

| _Roll_RA |  |
| Veto Counter |  |
