| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T04_9000004728_32765cztM0_level2.evt | modeM0/AS1A10_057T04_9000004728_32765cztM0_level2_quad_clean.evt |
| Size (bytes) | 706,104,000 | 88,634,880 |
| Size | 673.4 MB | 84.5 MB |
| Events in quadrant A | 3,498,360 | 562,306 |
| Events in quadrant B | 3,693,053 | 561,461 |
| Events in quadrant C | 3,394,660 | 561,647 |
| Events in quadrant D | 10,311,908 | 497,355 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15196 | 2 |
| B | 0 | 15562 | 2 |
| C | 0 | 14944 | 2 |
| D | 0 | 35723 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7195 | 13 | 0.180681% |
| B | 7195 | 38 | 0.528145% |
| C | 7195 | 36 | 0.500347% |
| D | 7195 | 1686 | 23.432940% |

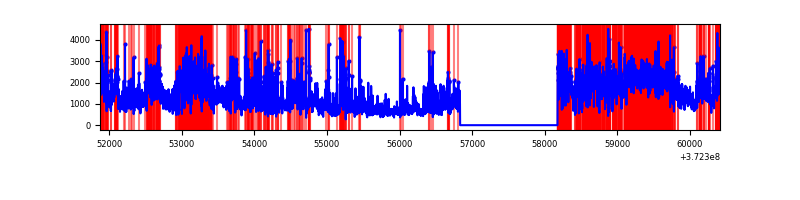

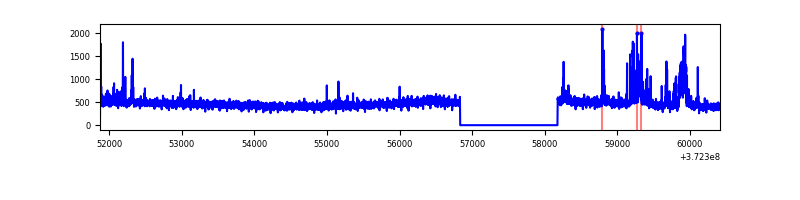

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8538 | 7196 | 3 | 3 | 0.04% | 0.04% |  |
| B | 8538 | 7196 | 21 | 21 | 0.25% | 0.29% |  |
| C | 8538 | 7196 | 22 | 22 | 0.26% | 0.31% |  |
| D | 8538 | 7196 | 1427 | 1427 | 16.71% | 19.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 234185 | 1386.69 | 832 | 816 | 168.3 |
| A | 12 | 194 | 37416 | 217.48 | 832 | 816 | 168.3 |
| A | 13 | 254 | 13472 | 75.2 | 832 | 816 | 168.3 |
| B | 0 | 219 | 138411 | 863.57 | 834 | 816 | 159.3 |
| B | 5 | 172 | 72505 | 449.93 | 834 | 816 | 159.3 |
| B | 0 | 197 | 51884 | 320.51 | 834 | 816 | 159.3 |
| C | 0 | 10 | 99337 | 519.03 | 813 | 819 | 189.8 |
| C | 8 | 79 | 59734 | 310.38 | 813 | 819 | 189.8 |
| C | 3 | 233 | 22501 | 114.23 | 813 | 819 | 189.8 |
| D | 8 | 195 | 4070923 | 21741.06 | 742 | 727 | 187.2 |
| D | 12 | 17 | 925070 | 4937.4 | 742 | 727 | 187.2 |
| D | 2 | 250 | 853989 | 4557.72 | 742 | 727 | 187.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

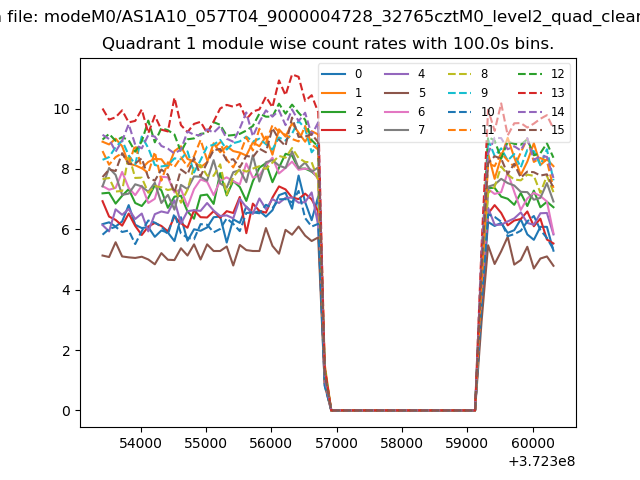

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

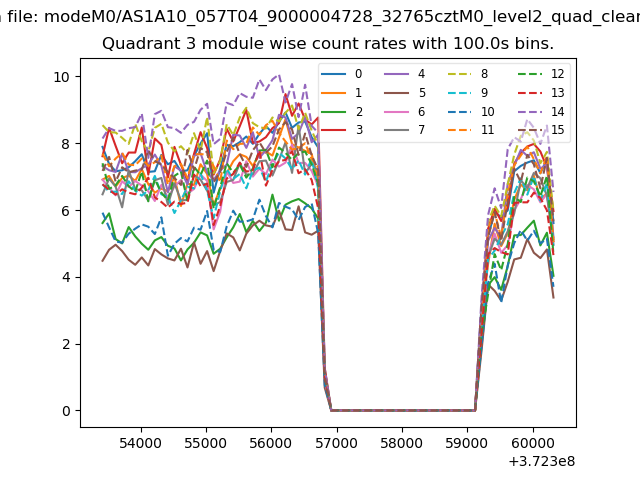

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

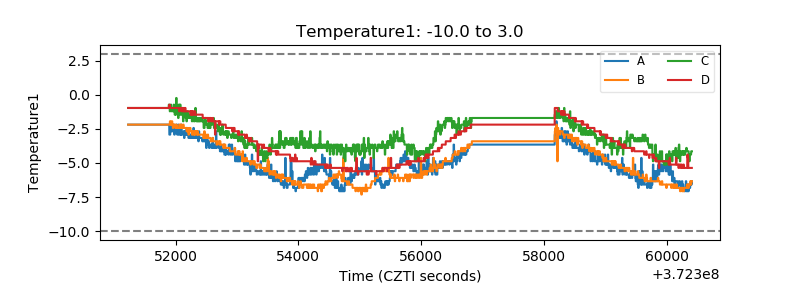

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

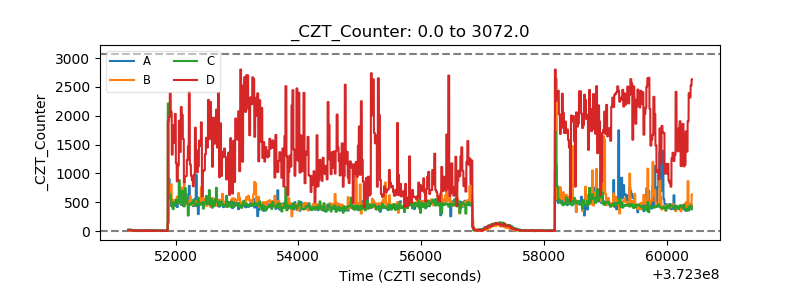

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

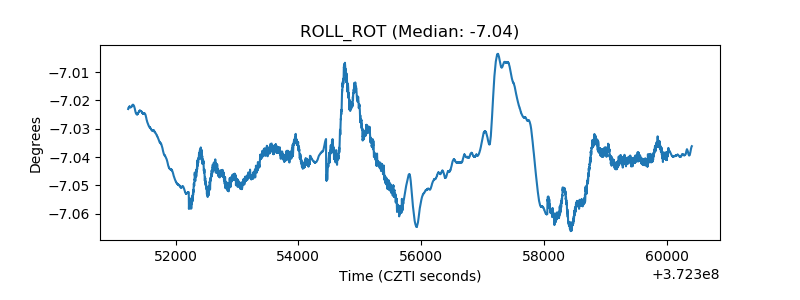

| _ROLL_ROT |  |
| _Roll_DEC |  |

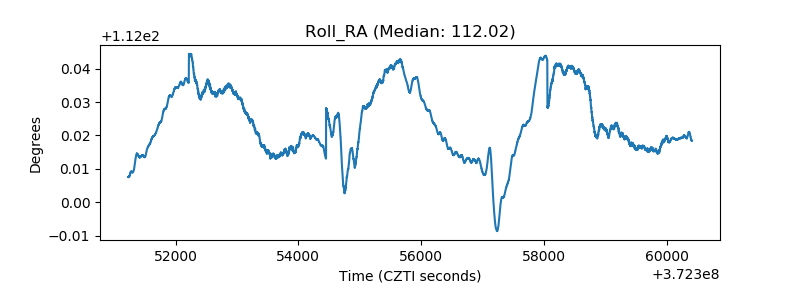

| _Roll_RA |  |
| Veto Counter |  |
