| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32770cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32770cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,984,000 | 53,239,680 |
| Size | 495.9 MB | 50.8 MB |
| Events in quadrant A | 3,452,962 | 311,261 |
| Events in quadrant B | 3,291,932 | 322,898 |
| Events in quadrant C | 2,965,097 | 324,312 |
| Events in quadrant D | 5,683,278 | 286,148 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13463 | 2 |
| B | 0 | 13110 | 1 |
| C | 0 | 11793 | 1 |
| D | 0 | 20558 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5242 | 139 | 2.651660% |
| B | 5242 | 79 | 1.507058% |
| C | 5242 | 74 | 1.411675% |
| D | 5242 | 403 | 7.687905% |

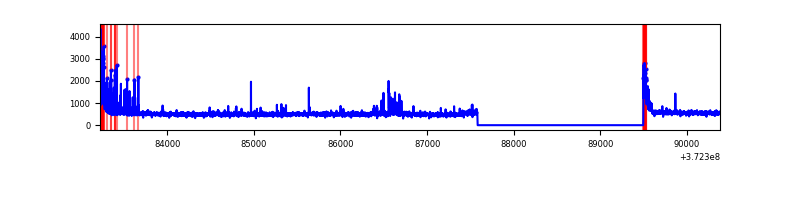

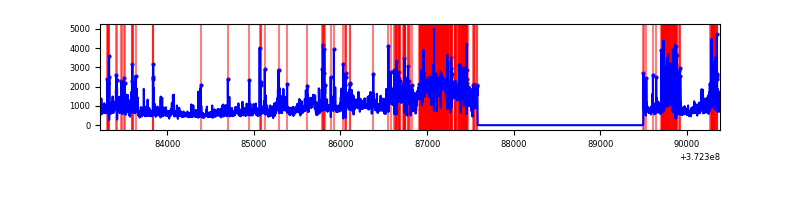

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7155 | 5243 | 90 | 90 | 1.26% | 1.72% |  |
| B | 7155 | 5243 | 45 | 45 | 0.63% | 0.86% |  |
| C | 7155 | 5243 | 56 | 56 | 0.78% | 1.07% |  |
| D | 7155 | 5243 | 441 | 441 | 6.16% | 8.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 393140 | 2918.68 | 675 | 664 | 134.5 |
| A | 12 | 16 | 333854 | 2477.79 | 675 | 664 | 134.5 |
| A | 12 | 194 | 49327 | 361.89 | 675 | 664 | 134.5 |
| B | 4 | 251 | 107811 | 830.23 | 688 | 675 | 129.0 |
| B | 12 | 1 | 96377 | 741.62 | 688 | 675 | 129.0 |
| B | 0 | 219 | 90954 | 699.6 | 688 | 675 | 129.0 |
| C | 0 | 10 | 285395 | 1880.12 | 661 | 668 | 151.4 |
| C | 3 | 233 | 37720 | 244.66 | 661 | 668 | 151.4 |
| C | 0 | 207 | 37644 | 244.16 | 661 | 668 | 151.4 |
| D | 8 | 195 | 2083754 | 12792.44 | 637 | 624 | 162.8 |
| D | 7 | 80 | 375085 | 2299.55 | 637 | 624 | 162.8 |
| D | 2 | 250 | 372672 | 2284.74 | 637 | 624 | 162.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

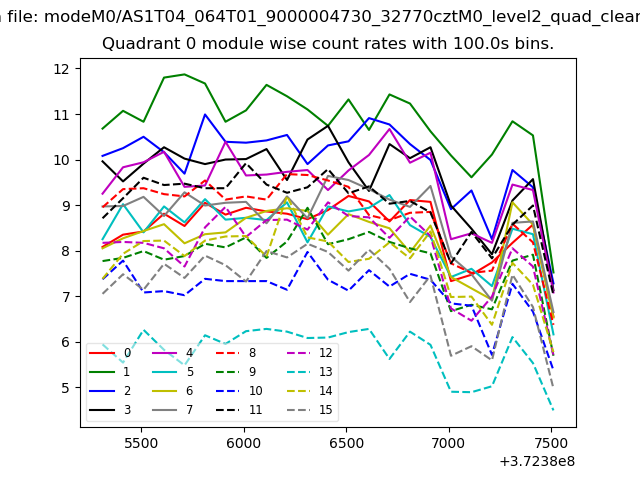

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

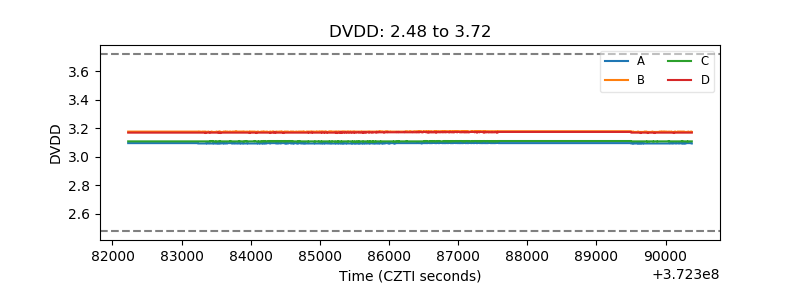

| D_VDD |  |
| Temperature 1 |  |

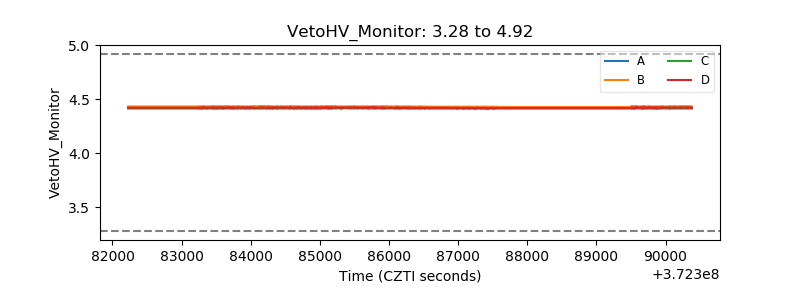

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

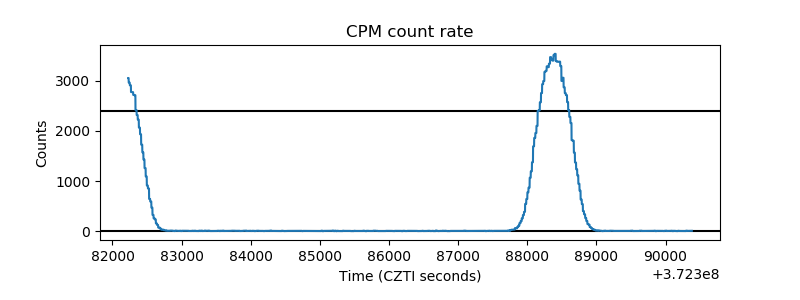

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

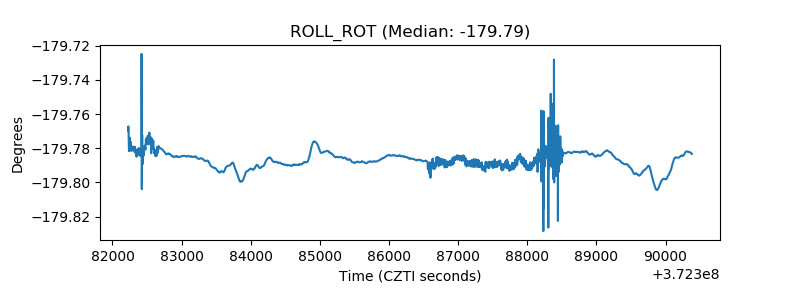

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

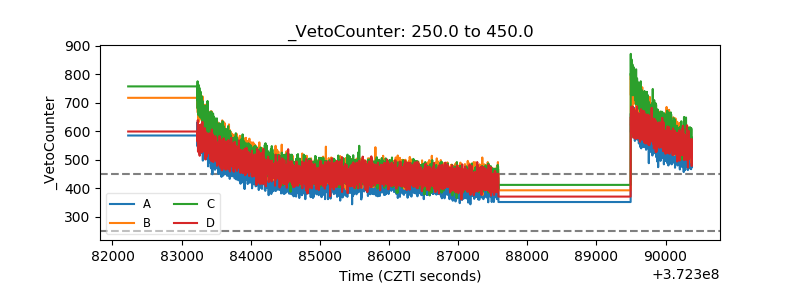

| Veto Counter |  |
