| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32773cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32773cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,232,960 | 79,787,520 |
| Size | 580.1 MB | 76.1 MB |
| Events in quadrant A | 3,506,368 | 533,007 |
| Events in quadrant B | 3,135,077 | 551,072 |
| Events in quadrant C | 2,702,797 | 549,963 |
| Events in quadrant D | 8,745,947 | 438,158 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13516 | 3 |
| B | 0 | 12437 | 2 |
| C | 0 | 10824 | 2 |
| D | 0 | 29401 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4894 | 148 | 3.024111% |
| B | 4894 | 68 | 1.389456% |
| C | 4894 | 50 | 1.021659% |
| D | 4894 | 1472 | 30.077646% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7017 | 4895 | 104 | 104 | 1.48% | 2.12% |  |
| B | 7017 | 4895 | 38 | 38 | 0.54% | 0.78% |  |
| C | 7017 | 4895 | 36 | 36 | 0.51% | 0.74% |  |
| D | 7017 | 4895 | 1841 | 1841 | 26.24% | 37.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 478133 | 3707.47 | 640 | 631 | 128.8 |
| A | 15 | 237 | 411512 | 3190.21 | 640 | 631 | 128.8 |
| A | 12 | 194 | 73001 | 561.9 | 640 | 631 | 128.8 |
| B | 5 | 172 | 193326 | 1600.91 | 642 | 631 | 120.4 |
| B | 0 | 219 | 181606 | 1503.54 | 642 | 631 | 120.4 |
| B | 6 | 234 | 45707 | 374.49 | 642 | 631 | 120.4 |
| C | 0 | 10 | 187014 | 1317.6 | 619 | 626 | 141.5 |
| C | 3 | 233 | 29709 | 205.59 | 619 | 626 | 141.5 |
| C | 14 | 67 | 27403 | 189.29 | 619 | 626 | 141.5 |
| D | 8 | 195 | 5087691 | 34454.45 | 571 | 562 | 147.6 |
| D | 12 | 218 | 325252 | 2199.08 | 571 | 562 | 147.6 |
| D | 7 | 80 | 246171 | 1663.48 | 571 | 562 | 147.6 |

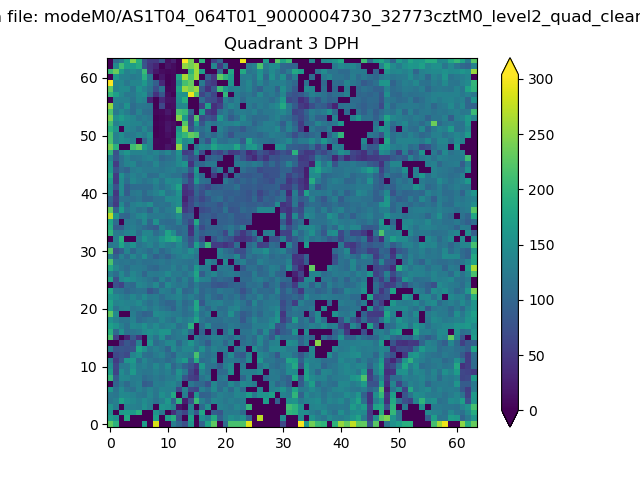

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

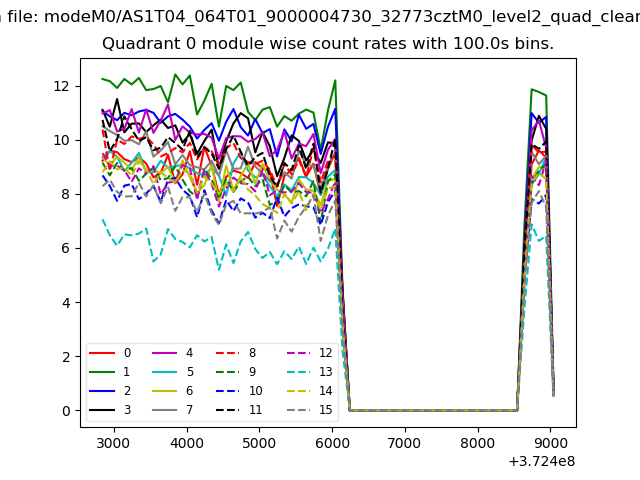

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

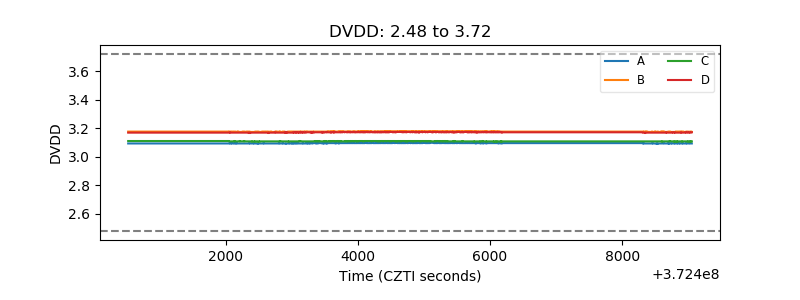

| D_VDD |  |
| Temperature 1 |  |

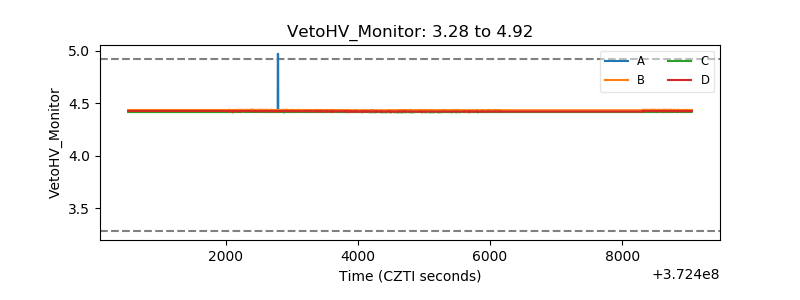

| Veto HV Monitor |  |
| Veto LLD |  |

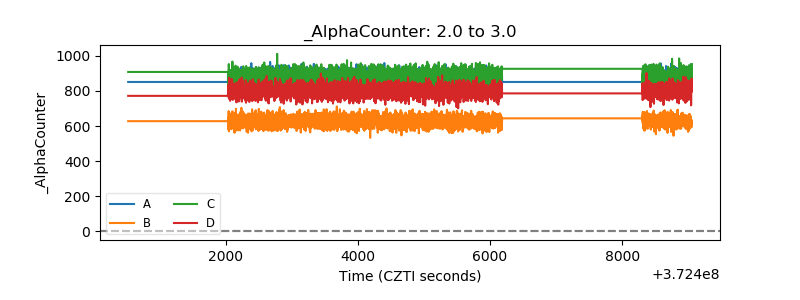

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
