| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32795cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32795cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,361,280 | 68,806,080 |
| Size | 530.6 MB | 65.6 MB |
| Events in quadrant A | 3,271,372 | 429,818 |
| Events in quadrant B | 3,657,746 | 435,268 |
| Events in quadrant C | 2,977,554 | 441,602 |
| Events in quadrant D | 6,563,324 | 384,056 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13409 | 3 |
| B | 0 | 14572 | 2 |
| C | 0 | 12365 | 2 |
| D | 0 | 23521 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5607 | 206 | 3.673979% |
| B | 5607 | 282 | 5.029428% |
| C | 5607 | 58 | 1.034421% |
| D | 5607 | 729 | 13.001605% |

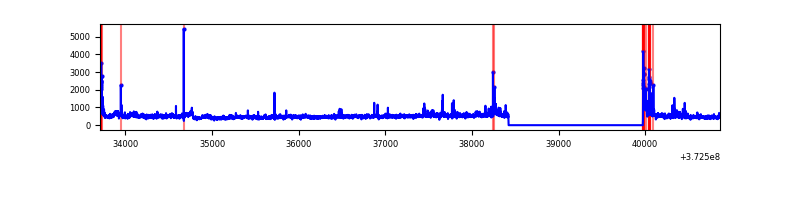

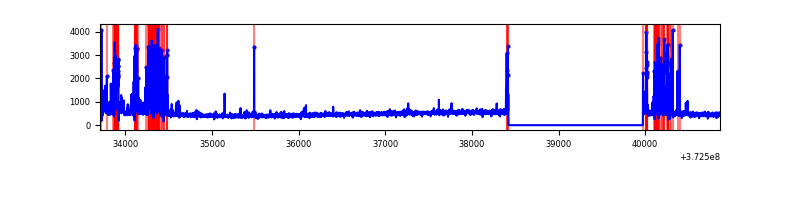

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7159 | 5608 | 144 | 144 | 2.01% | 2.57% |  |
| B | 7159 | 5608 | 138 | 138 | 1.93% | 2.46% |  |
| C | 7159 | 5608 | 40 | 40 | 0.56% | 0.71% |  |
| D | 7159 | 5608 | 643 | 643 | 8.98% | 11.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 659349 | 4960.98 | 652 | 639 | 132.8 |
| A | 14 | 63 | 40939 | 303.51 | 652 | 639 | 132.8 |
| A | 13 | 6 | 14027 | 100.83 | 652 | 639 | 132.8 |
| B | 0 | 219 | 510840 | 4018.7 | 654 | 639 | 127.0 |
| B | 5 | 172 | 448838 | 3530.33 | 654 | 639 | 127.0 |
| B | 0 | 189 | 43808 | 340.03 | 654 | 639 | 127.0 |
| C | 0 | 10 | 376119 | 2525.13 | 639 | 644 | 148.7 |
| C | 15 | 159 | 22176 | 144.81 | 639 | 644 | 148.7 |
| C | 3 | 233 | 18464 | 119.84 | 639 | 644 | 148.7 |
| D | 8 | 195 | 2021159 | 13056.15 | 608 | 591 | 154.8 |
| D | 12 | 17 | 455817 | 2941.5 | 608 | 591 | 154.8 |
| D | 12 | 6 | 341062 | 2199.99 | 608 | 591 | 154.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

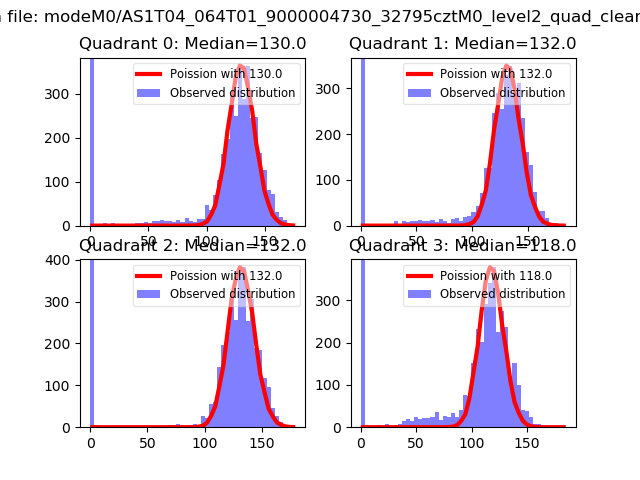

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

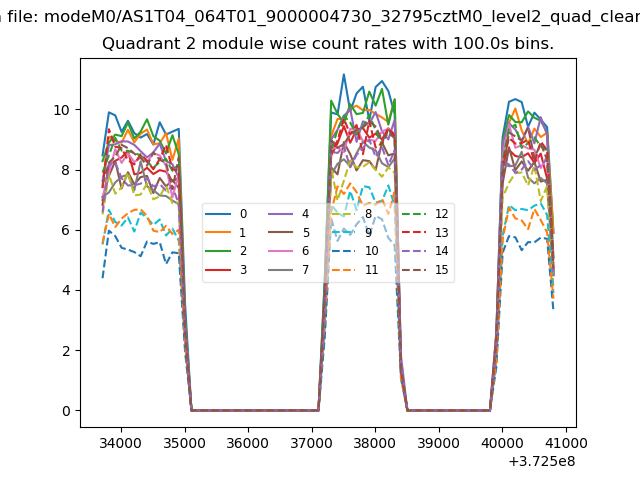

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

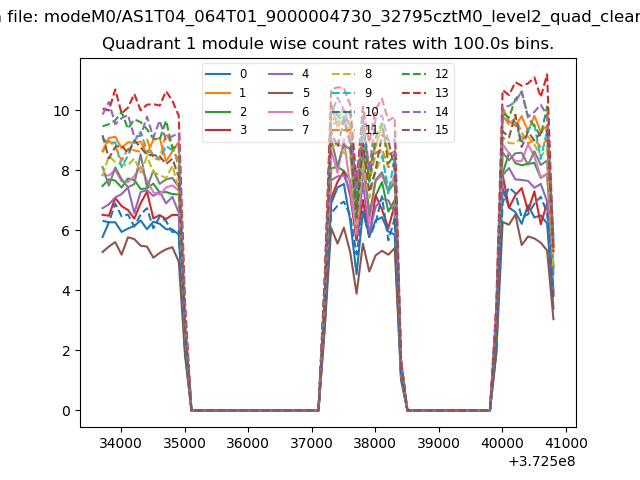

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

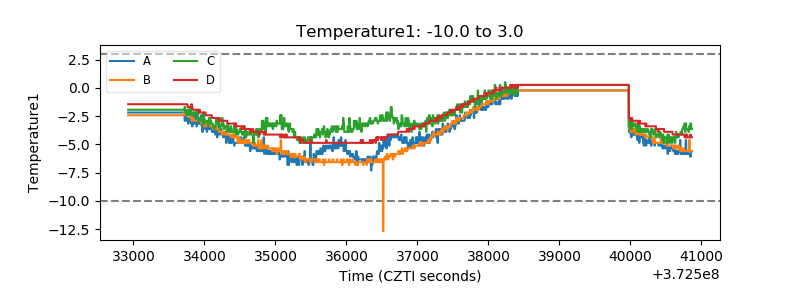

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

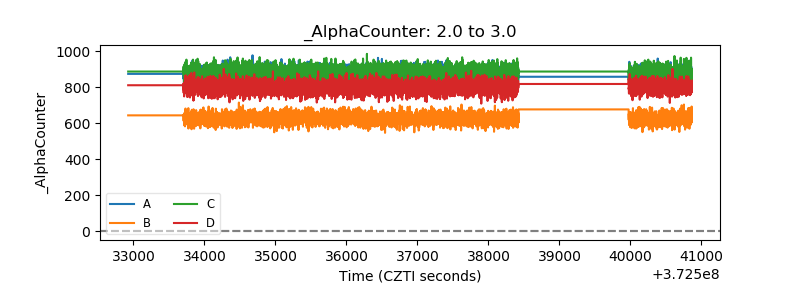

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

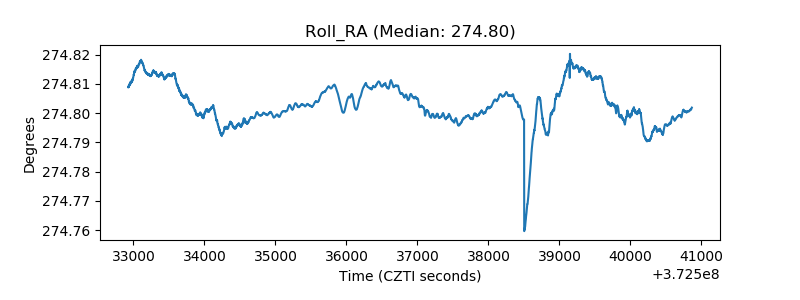

| _Roll_RA |  |
| Veto Counter |  |
