| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32796cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32796cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,390,080 | 62,219,520 |
| Size | 513.4 MB | 59.3 MB |
| Events in quadrant A | 3,079,008 | 381,827 |
| Events in quadrant B | 3,252,931 | 394,508 |
| Events in quadrant C | 2,807,644 | 386,807 |
| Events in quadrant D | 6,793,926 | 336,153 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12664 | 3 |
| B | 0 | 13247 | 2 |
| C | 0 | 11755 | 2 |
| D | 0 | 24110 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5488 | 138 | 2.514577% |
| B | 5488 | 96 | 1.749271% |
| C | 5488 | 63 | 1.147959% |
| D | 5488 | 813 | 14.814140% |

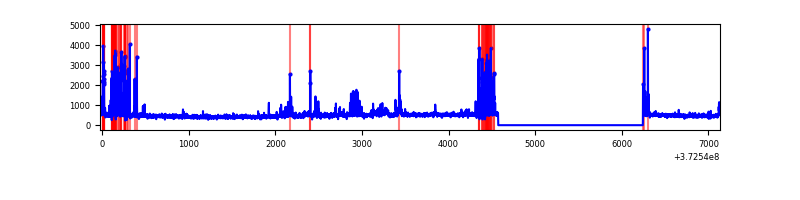

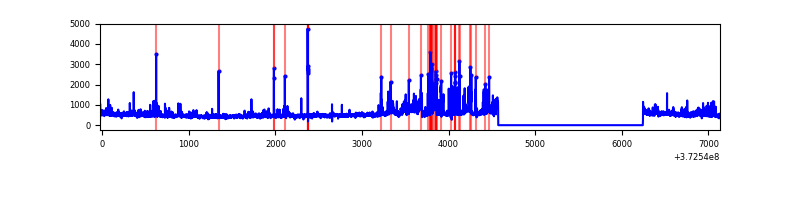

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7160 | 5489 | 83 | 83 | 1.16% | 1.51% |  |
| B | 7160 | 5489 | 44 | 44 | 0.61% | 0.80% |  |
| C | 7160 | 5489 | 44 | 44 | 0.61% | 0.80% |  |
| D | 7160 | 5489 | 778 | 778 | 10.87% | 14.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 363363 | 2741.11 | 649 | 637 | 132.3 |
| A | 14 | 63 | 90483 | 678.96 | 649 | 637 | 132.3 |
| A | 14 | 238 | 34245 | 253.97 | 649 | 637 | 132.3 |
| B | 0 | 219 | 247468 | 1933.61 | 662 | 647 | 127.6 |
| B | 5 | 172 | 219060 | 1711.06 | 662 | 647 | 127.6 |
| B | 0 | 189 | 63125 | 489.45 | 662 | 647 | 127.6 |
| C | 0 | 10 | 240676 | 1619.12 | 635 | 641 | 148.3 |
| C | 15 | 159 | 22670 | 148.59 | 635 | 641 | 148.3 |
| C | 3 | 233 | 15937 | 103.18 | 635 | 641 | 148.3 |
| D | 8 | 195 | 2329009 | 15466.72 | 603 | 588 | 150.5 |
| D | 12 | 17 | 770071 | 5111.35 | 603 | 588 | 150.5 |
| D | 2 | 250 | 301117 | 1996.29 | 603 | 588 | 150.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

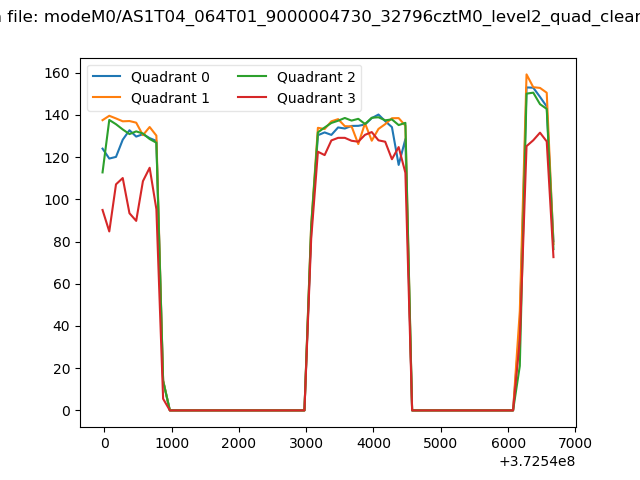

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

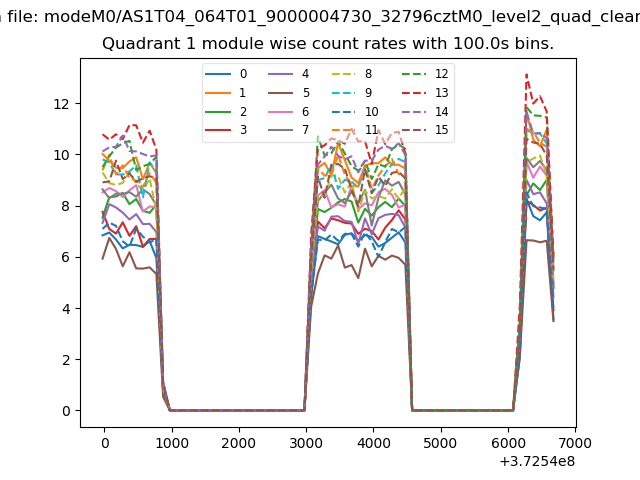

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

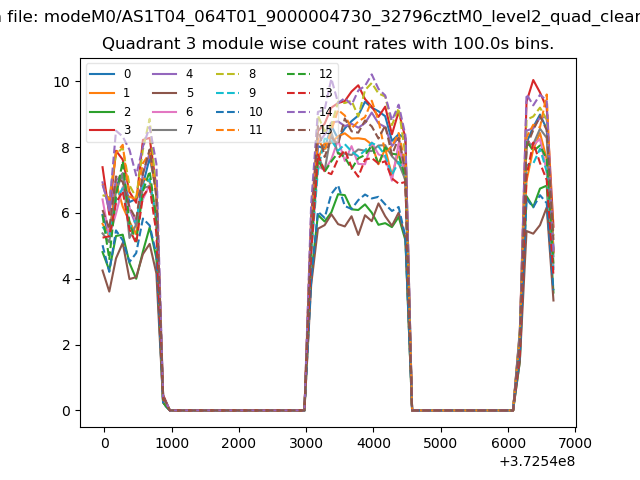

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

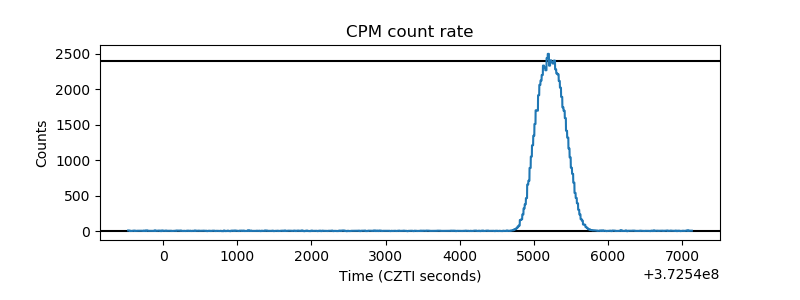

| _CPM_Rate |  |

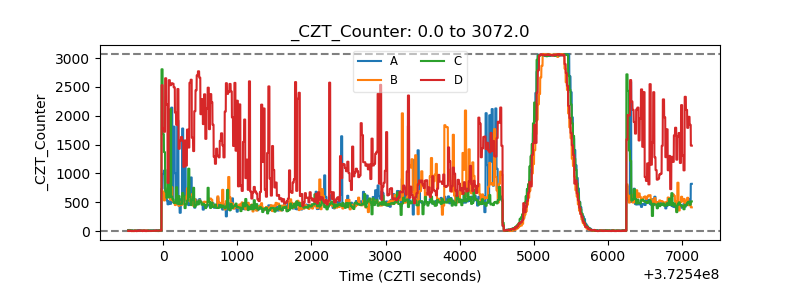

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

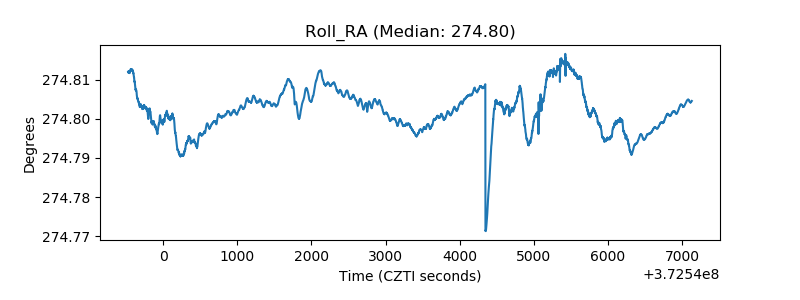

| _Roll_RA |  |
| Veto Counter |  |
