| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32798cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32798cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,618,240 | 53,193,600 |
| Size | 572.8 MB | 50.7 MB |
| Events in quadrant A | 2,948,658 | 316,856 |
| Events in quadrant B | 3,661,321 | 313,905 |
| Events in quadrant C | 2,997,997 | 317,002 |
| Events in quadrant D | 8,205,758 | 272,593 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12064 | 3 |
| B | 0 | 14412 | 2 |
| C | 0 | 12187 | 2 |
| D | 0 | 28283 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5568 | 58 | 1.041667% |
| B | 5568 | 237 | 4.256466% |
| C | 5568 | 49 | 0.880029% |
| D | 5568 | 772 | 13.864943% |

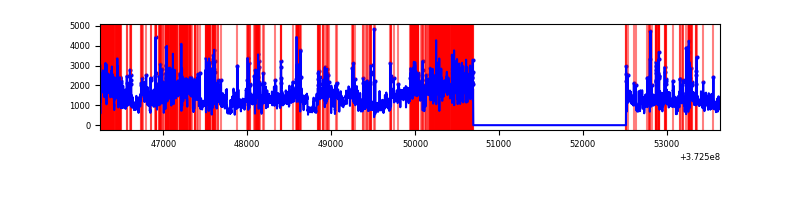

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7390 | 5569 | 27 | 27 | 0.37% | 0.48% |  |
| B | 7390 | 5569 | 146 | 146 | 1.98% | 2.62% |  |
| C | 7390 | 5569 | 34 | 34 | 0.46% | 0.61% |  |
| D | 7390 | 5569 | 724 | 724 | 9.80% | 13.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 156766 | 1125.55 | 687 | 675 | 138.7 |
| A | 14 | 238 | 55104 | 392.48 | 687 | 675 | 138.7 |
| A | 7 | 16 | 13875 | 95.18 | 687 | 675 | 138.7 |
| B | 5 | 172 | 575769 | 4412.97 | 688 | 673 | 130.3 |
| B | 0 | 219 | 206645 | 1580.52 | 688 | 673 | 130.3 |
| B | 0 | 189 | 105359 | 803.3 | 688 | 673 | 130.3 |
| C | 0 | 10 | 257825 | 1681.51 | 667 | 674 | 152.9 |
| C | 3 | 233 | 91150 | 591.62 | 667 | 674 | 152.9 |
| C | 14 | 67 | 18766 | 118.3 | 667 | 674 | 152.9 |
| D | 8 | 195 | 3642501 | 23345.87 | 634 | 620 | 156.0 |
| D | 10 | 203 | 801736 | 5135.46 | 634 | 620 | 156.0 |
| D | 2 | 250 | 493677 | 3160.69 | 634 | 620 | 156.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

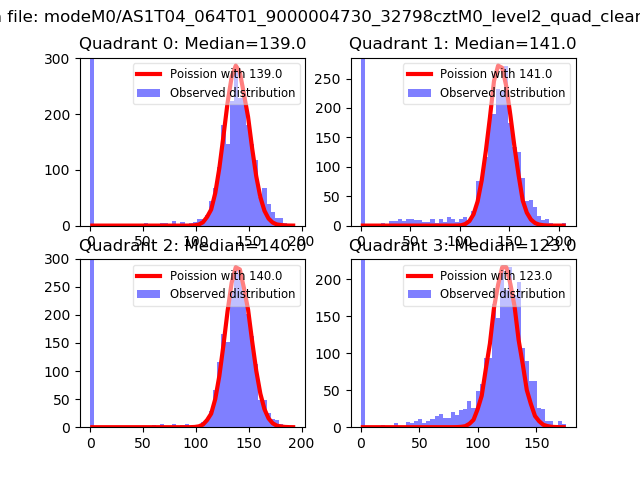

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

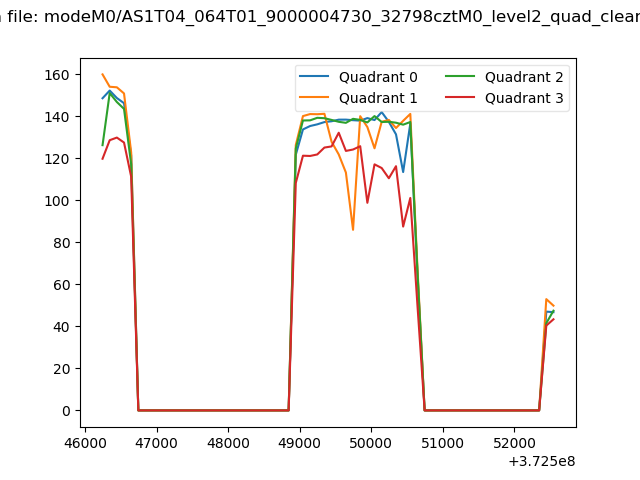

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

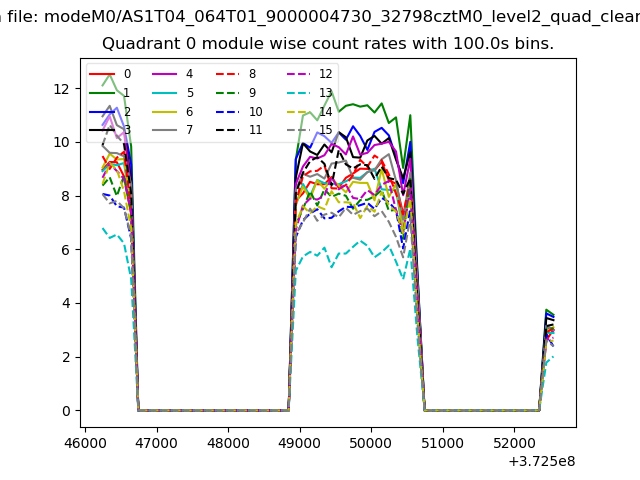

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

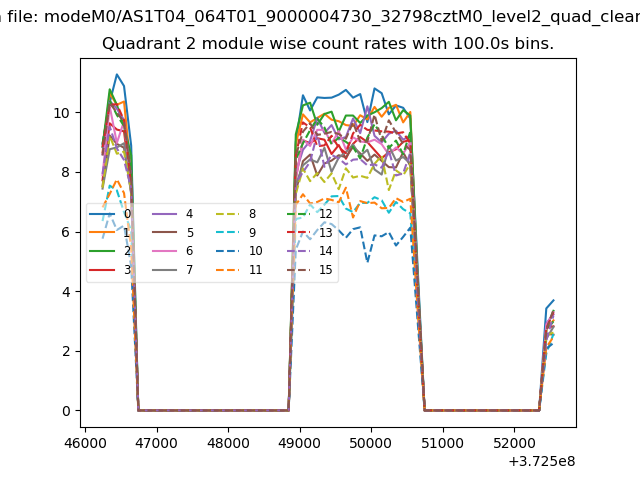

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

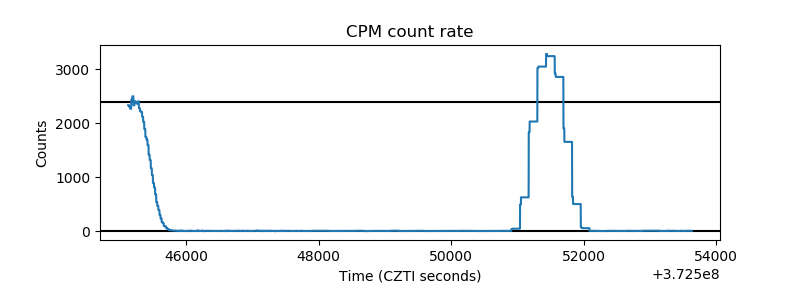

| _CPM_Rate |  |

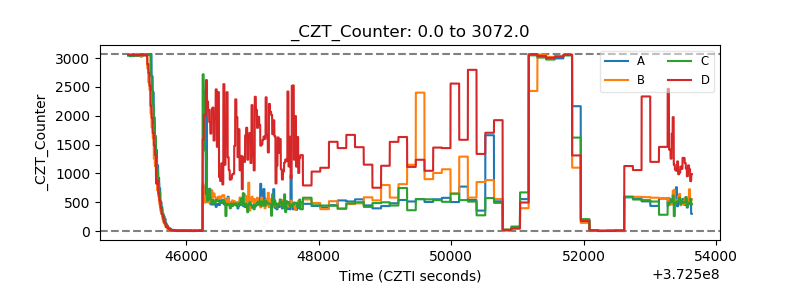

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

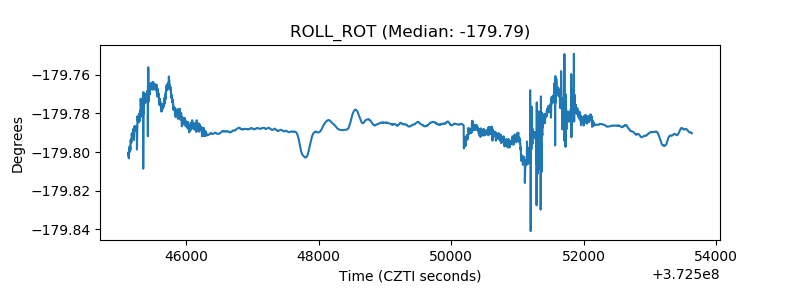

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
