| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32801cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32801cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,729,600 | 63,331,200 |
| Size | 510.0 MB | 60.4 MB |
| Events in quadrant A | 3,777,751 | 378,215 |
| Events in quadrant B | 3,388,470 | 415,167 |
| Events in quadrant C | 2,942,308 | 416,698 |
| Events in quadrant D | 5,758,628 | 367,475 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13975 | 3 |
| B | 0 | 13260 | 2 |
| C | 0 | 11737 | 2 |
| D | 0 | 20554 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4836 | 431 | 8.912324% |
| B | 4836 | 141 | 2.915633% |
| C | 4836 | 59 | 1.220017% |
| D | 4836 | 358 | 7.402812% |

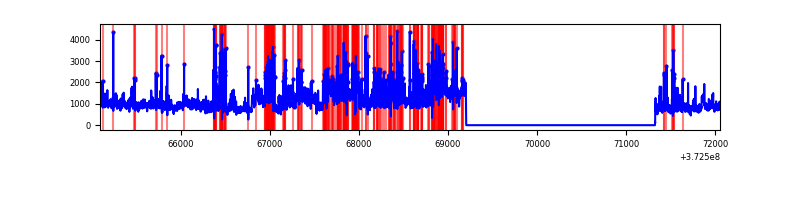

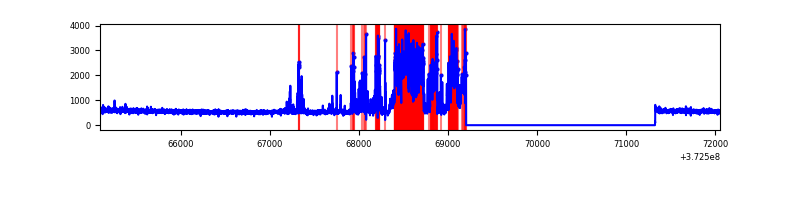

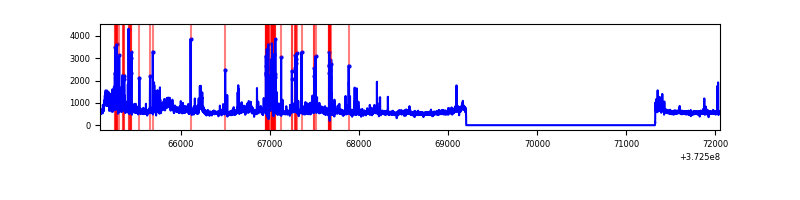

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6957 | 4837 | 364 | 364 | 5.23% | 7.53% |  |
| B | 6957 | 4837 | 91 | 91 | 1.31% | 1.88% |  |
| C | 6957 | 4837 | 43 | 43 | 0.62% | 0.89% |  |
| D | 6957 | 4837 | 315 | 315 | 4.53% | 6.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 1178075 | 9329.36 | 639 | 630 | 126.2 |
| A | 14 | 238 | 61174 | 479.71 | 639 | 630 | 126.2 |
| A | 7 | 16 | 38382 | 299.12 | 639 | 630 | 126.2 |
| B | 5 | 172 | 392273 | 3218.36 | 656 | 644 | 121.7 |
| B | 0 | 219 | 221859 | 1817.92 | 656 | 644 | 121.7 |
| B | 12 | 1 | 84387 | 688.19 | 656 | 644 | 121.7 |
| C | 0 | 10 | 239048 | 1639.66 | 639 | 647 | 145.4 |
| C | 3 | 233 | 104719 | 715.78 | 639 | 647 | 145.4 |
| C | 14 | 67 | 35536 | 239.96 | 639 | 647 | 145.4 |
| D | 8 | 195 | 1492441 | 9829.7 | 623 | 613 | 151.8 |
| D | 10 | 203 | 593909 | 3909.25 | 623 | 613 | 151.8 |
| D | 2 | 250 | 253213 | 1664.39 | 623 | 613 | 151.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

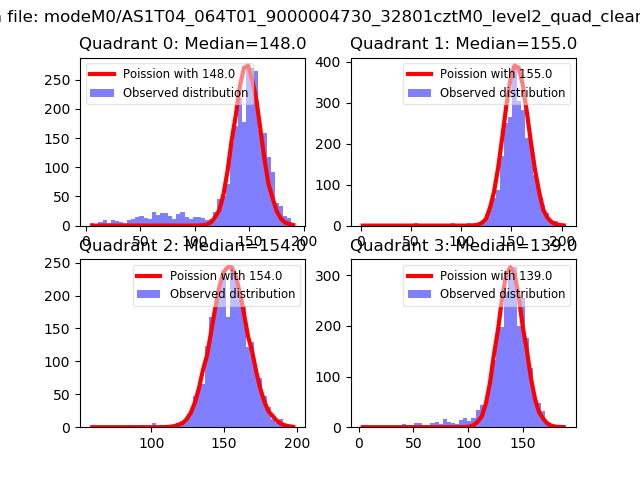

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

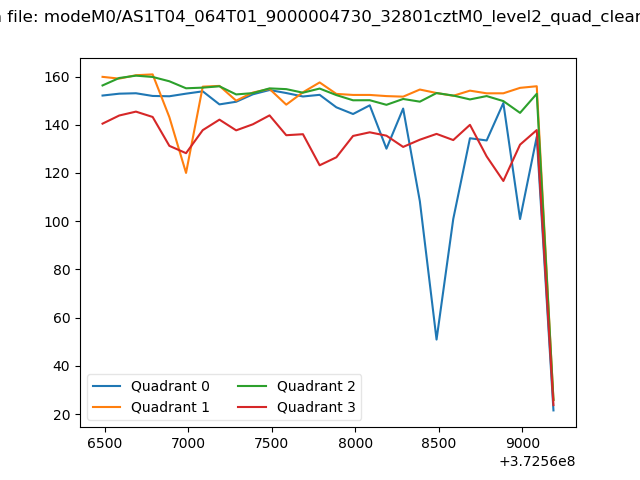

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

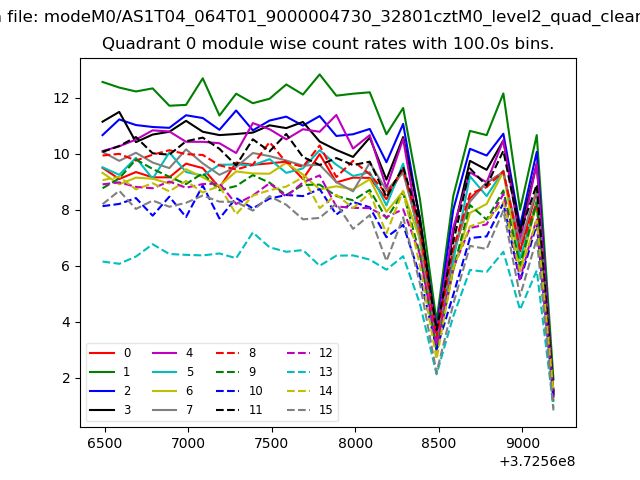

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

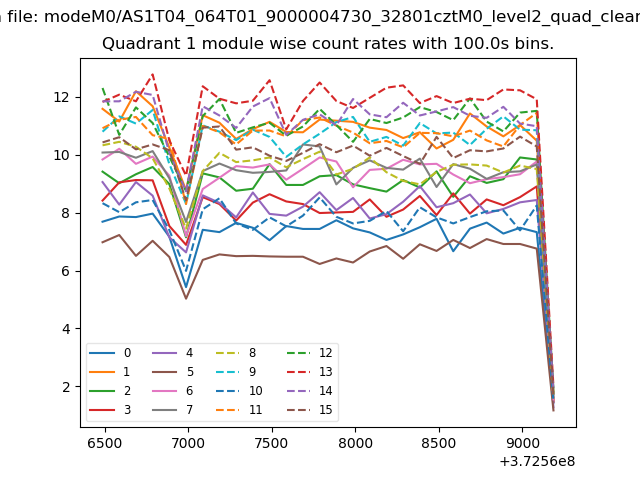

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

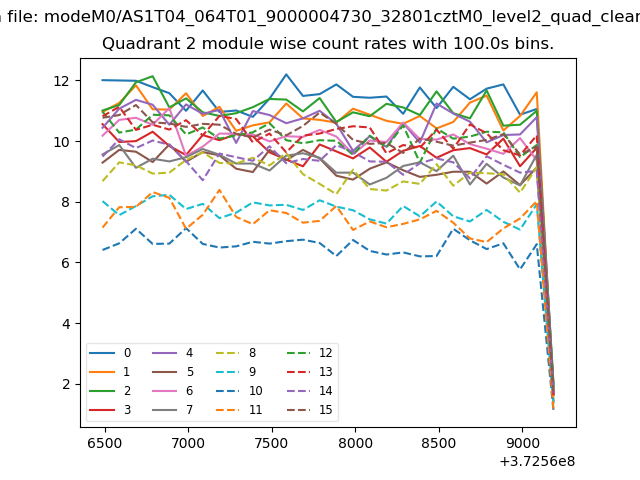

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
