| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32804cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32804cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,266,560 | 87,076,800 |
| Size | 500.0 MB | 83.0 MB |
| Events in quadrant A | 2,658,813 | 584,514 |
| Events in quadrant B | 3,964,229 | 564,779 |
| Events in quadrant C | 2,994,707 | 586,080 |
| Events in quadrant D | 5,901,101 | 530,281 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11167 | 3 |
| B | 0 | 15113 | 2 |
| C | 0 | 12285 | 2 |
| D | 0 | 21184 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5305 | 36 | 0.678605% |
| B | 5305 | 436 | 8.218662% |
| C | 5305 | 102 | 1.922714% |
| D | 5305 | 412 | 7.766258% |

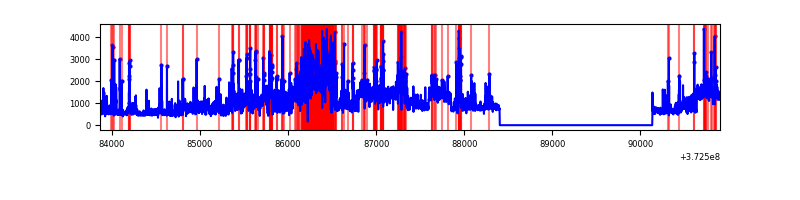

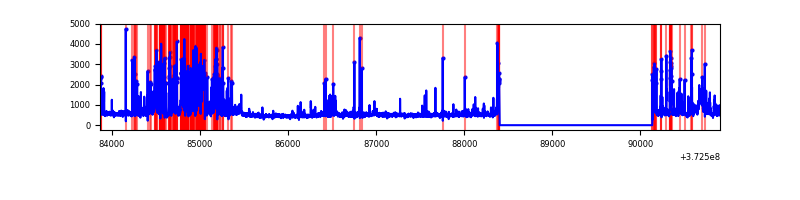

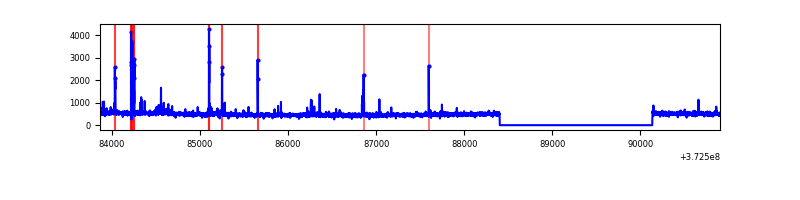

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7038 | 5306 | 20 | 20 | 0.28% | 0.38% |  |
| B | 7038 | 5306 | 292 | 292 | 4.15% | 5.50% |  |
| C | 7038 | 5306 | 84 | 84 | 1.19% | 1.58% |  |
| D | 7038 | 5306 | 392 | 392 | 5.57% | 7.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 17 | 70351 | 538.24 | 643 | 632 | 129.5 |
| A | 9 | 143 | 38596 | 293.09 | 643 | 632 | 129.5 |
| A | 7 | 16 | 33338 | 252.5 | 643 | 632 | 129.5 |
| B | 5 | 172 | 1057664 | 8895.52 | 620 | 605 | 118.8 |
| B | 0 | 219 | 200603 | 1683.05 | 620 | 605 | 118.8 |
| B | 0 | 197 | 152330 | 1276.82 | 620 | 605 | 118.8 |
| C | 0 | 10 | 439617 | 3053.13 | 617 | 625 | 143.8 |
| C | 3 | 233 | 59169 | 407.17 | 617 | 625 | 143.8 |
| C | 15 | 159 | 25060 | 169.94 | 617 | 625 | 143.8 |
| D | 8 | 195 | 2124972 | 14445.29 | 603 | 590 | 147.1 |
| D | 2 | 250 | 406312 | 2758.81 | 603 | 590 | 147.1 |
| D | 2 | 120 | 241152 | 1635.76 | 603 | 590 | 147.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

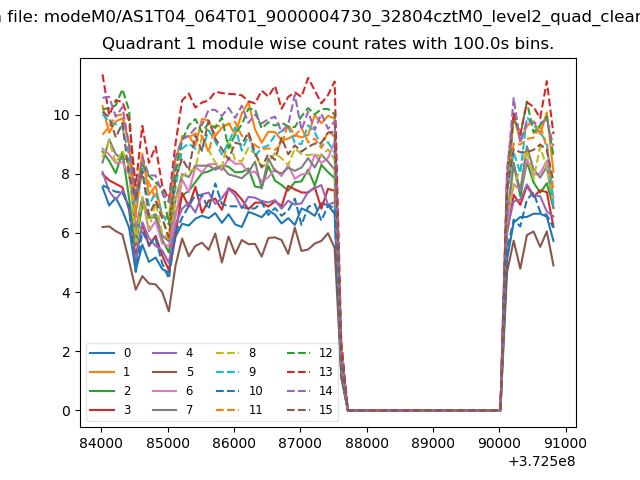

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

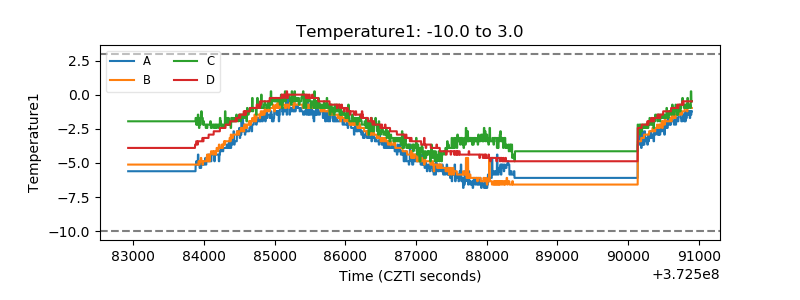

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

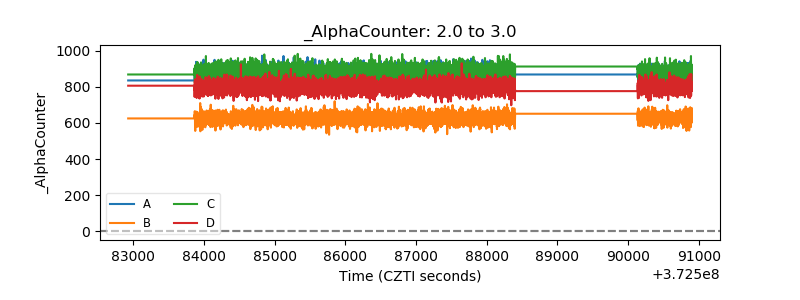

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

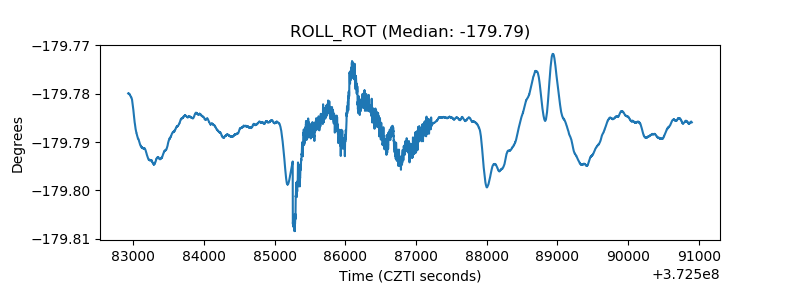

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

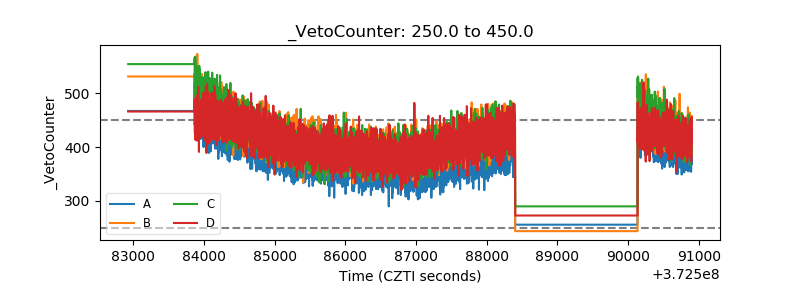

| Veto Counter |  |
