| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_064T01_9000004730_32810cztM0_level2.evt | modeM0/AS1T04_064T01_9000004730_32810cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,535,353,920 | 178,968,960 |
| Size | 1.4 GB | 170.7 MB |
| Events in quadrant A | 9,430,420 | 1,097,263 |
| Events in quadrant B | 8,704,355 | 1,137,090 |
| Events in quadrant C | 8,309,112 | 1,117,058 |
| Events in quadrant D | 19,010,692 | 996,745 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 316 | 0 |
| B | 0 | 316 | 0 |
| C | 0 | 316 | 0 |
| D | 0 | 316 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38076 | 4 |
| B | 0 | 35674 | 4 |
| C | 0 | 34747 | 4 |
| D | 0 | 67491 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15526 | 580 | 3.735669% |
| B | 15526 | 254 | 1.635965% |
| C | 15526 | 184 | 1.185109% |
| D | 15526 | 1742 | 11.219889% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19731 | 15529 | 465 | 465 | 2.36% | 2.99% |  |
| B | 19731 | 15529 | 132 | 132 | 0.67% | 0.85% |  |
| C | 19731 | 15529 | 130 | 130 | 0.66% | 0.84% |  |
| D | 19731 | 15529 | 1982 | 1982 | 10.05% | 12.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 2085514 | 5733.78 | 1800 | 1766 | 363.4 |
| A | 12 | 16 | 134176 | 364.35 | 1800 | 1766 | 363.4 |
| A | 9 | 143 | 79395 | 213.61 | 1800 | 1766 | 363.4 |
| B | 5 | 172 | 606011 | 1736.0 | 1837 | 1795 | 348.1 |
| B | 0 | 219 | 261485 | 746.13 | 1837 | 1795 | 348.1 |
| B | 5 | 200 | 146157 | 414.77 | 1837 | 1795 | 348.1 |
| C | 0 | 10 | 935568 | 2285.69 | 1766 | 1785 | 408.5 |
| C | 0 | 207 | 121400 | 292.79 | 1766 | 1785 | 408.5 |
| C | 1 | 241 | 76873 | 183.8 | 1766 | 1785 | 408.5 |
| D | 8 | 195 | 7530595 | 18336.81 | 1706 | 1670 | 410.6 |
| D | 2 | 250 | 1877258 | 4568.02 | 1706 | 1670 | 410.6 |
| D | 2 | 249 | 842971 | 2049.0 | 1706 | 1670 | 410.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

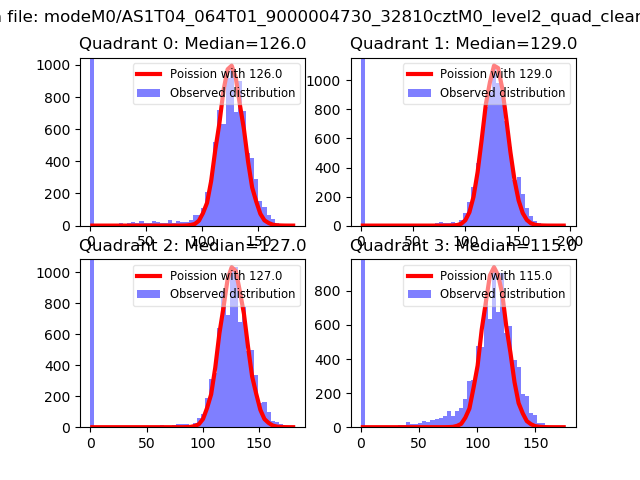

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

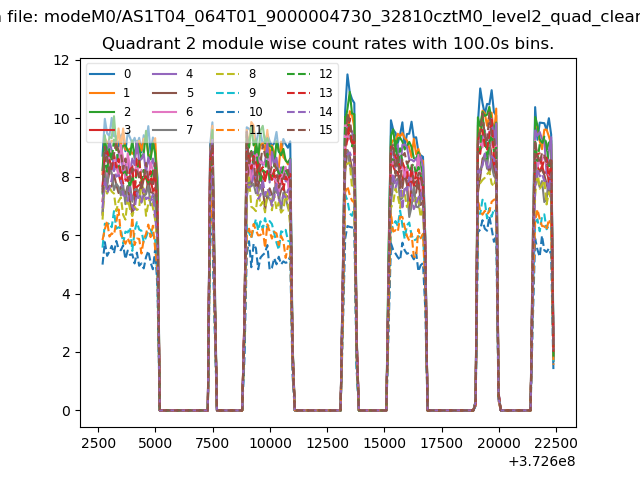

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

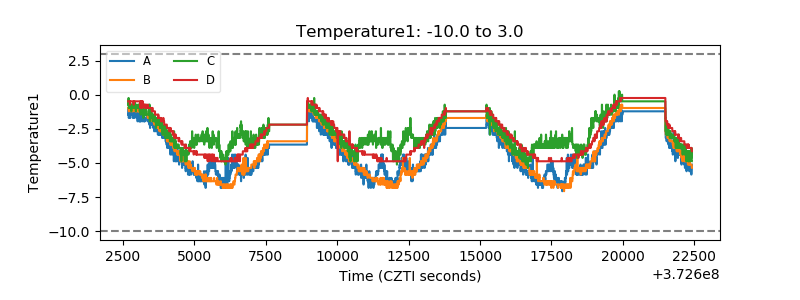

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

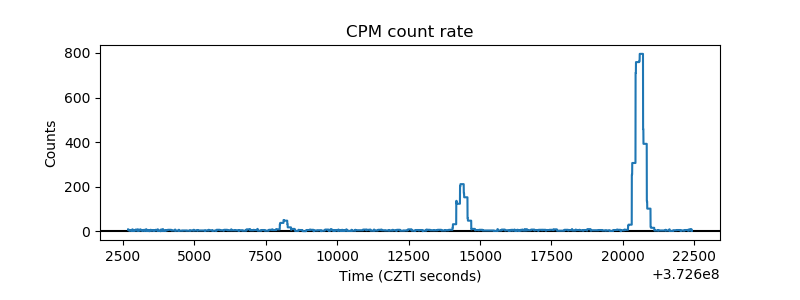

| _CPM_Rate |  |

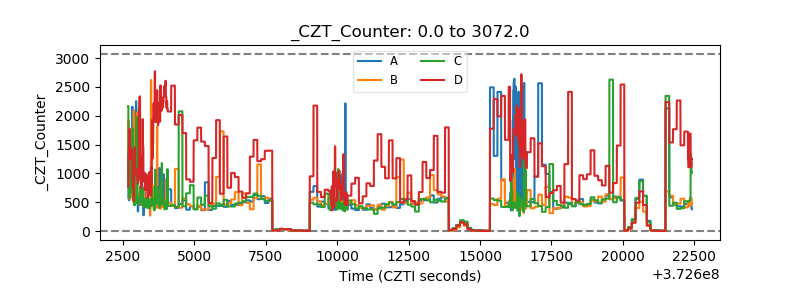

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

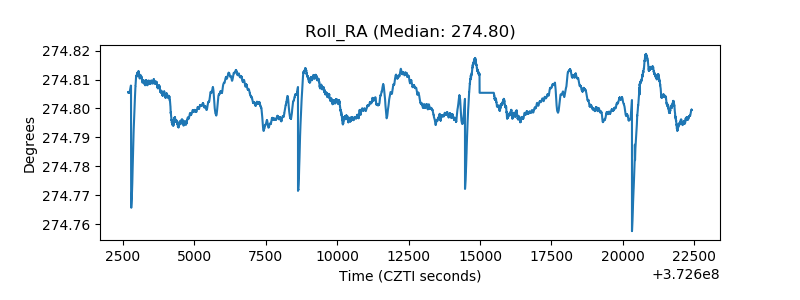

| _Roll_RA |  |
| Veto Counter |  |
