| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_044T01_9000004732_32813cztM0_level2.evt | modeM0/AS1A11_044T01_9000004732_32813cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,993,920 | 105,252,480 |
| Size | 451.1 MB | 100.4 MB |
| Events in quadrant A | 2,518,159 | 720,074 |
| Events in quadrant B | 3,134,381 | 731,081 |
| Events in quadrant C | 2,838,883 | 718,516 |
| Events in quadrant D | 5,483,434 | 656,410 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10699 | 3 |
| B | 0 | 12581 | 2 |
| C | 0 | 11634 | 2 |
| D | 0 | 20050 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5158 | 9 | 0.174486% |
| B | 5158 | 179 | 3.470337% |
| C | 5158 | 119 | 2.307096% |
| D | 5158 | 355 | 6.882513% |

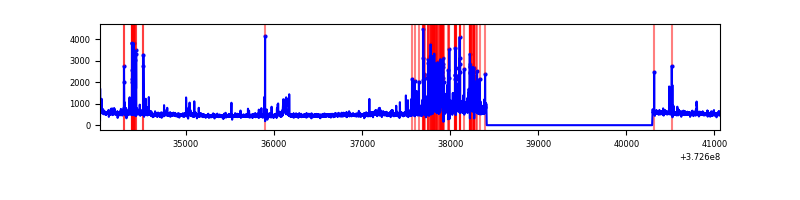

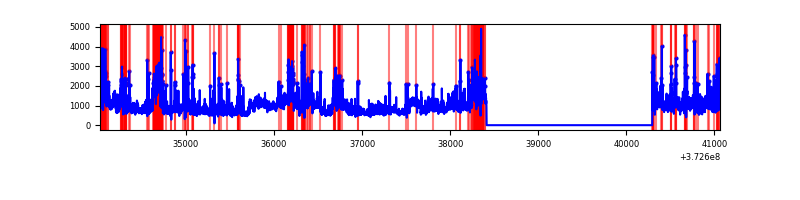

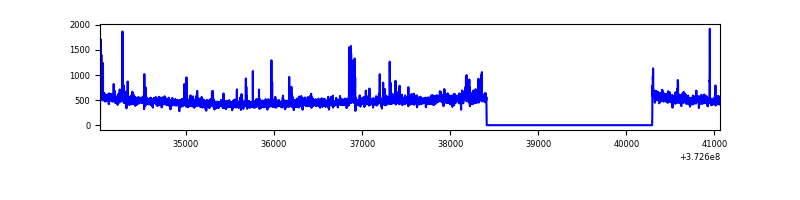

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7040 | 5159 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7040 | 5159 | 112 | 112 | 1.59% | 2.17% |  |
| C | 7040 | 5159 | 92 | 92 | 1.31% | 1.78% |  |
| D | 7040 | 5159 | 336 | 336 | 4.77% | 6.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 17 | 36666 | 291.82 | 623 | 613 | 123.5 |
| A | 14 | 238 | 28698 | 227.32 | 623 | 613 | 123.5 |
| A | 9 | 143 | 18976 | 148.63 | 623 | 613 | 123.5 |
| B | 5 | 172 | 362120 | 3113.75 | 623 | 610 | 116.1 |
| B | 5 | 200 | 72842 | 622.15 | 623 | 610 | 116.1 |
| B | 0 | 230 | 64185 | 547.58 | 623 | 610 | 116.1 |
| C | 0 | 10 | 195822 | 1398.7 | 609 | 615 | 139.6 |
| C | 1 | 23 | 130549 | 931.0 | 609 | 615 | 139.6 |
| C | 3 | 233 | 44700 | 315.88 | 609 | 615 | 139.6 |
| D | 8 | 195 | 1610958 | 10739.99 | 593 | 578 | 149.9 |
| D | 2 | 250 | 400915 | 2669.94 | 593 | 578 | 149.9 |
| D | 12 | 6 | 295468 | 1966.69 | 593 | 578 | 149.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

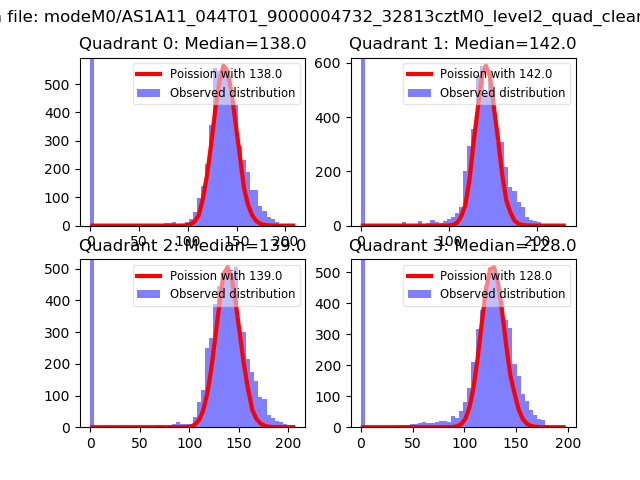

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

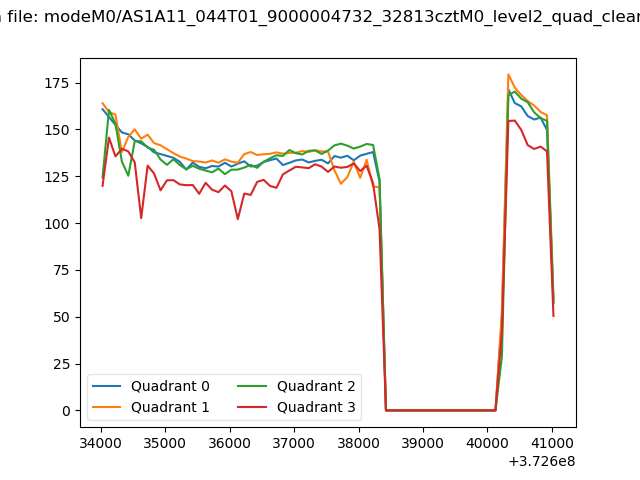

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

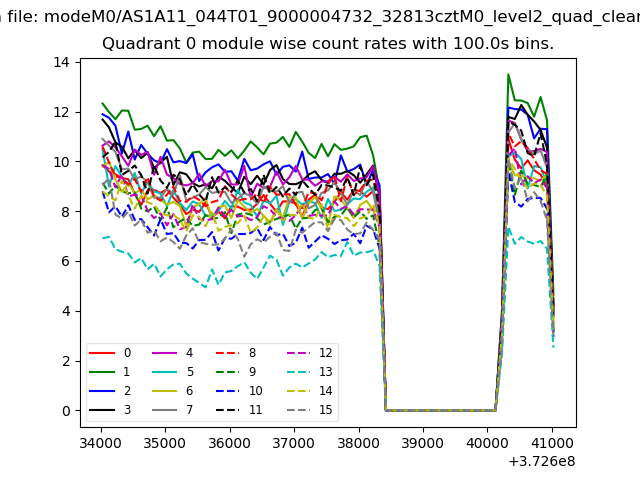

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

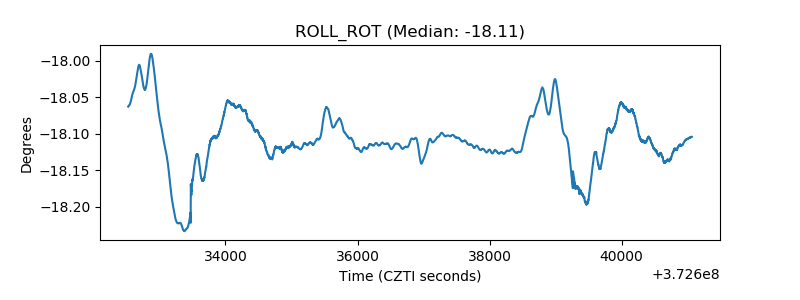

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

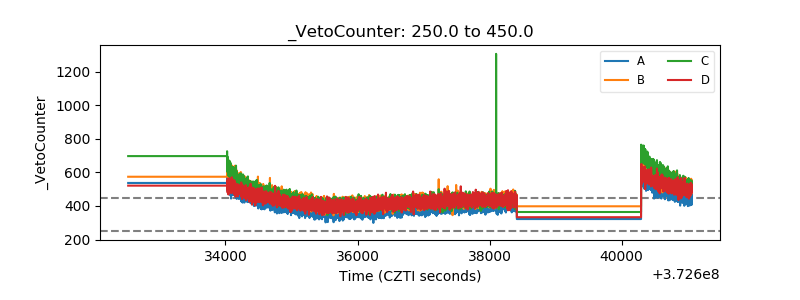

| Veto Counter |  |
