| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_044T01_9000004732_32825cztM0_level2.evt | modeM0/AS1A11_044T01_9000004732_32825cztM0_level2_quad_clean.evt |
| Size (bytes) | 983,468,160 | 194,330,880 |
| Size | 937.9 MB | 185.3 MB |
| Events in quadrant A | 6,563,650 | 1,288,530 |
| Events in quadrant B | 6,088,433 | 1,322,563 |
| Events in quadrant C | 5,239,430 | 1,329,696 |
| Events in quadrant D | 11,179,402 | 1,212,155 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43 | 0 |
| B | 0 | 43 | 0 |
| C | 0 | 43 | 0 |
| D | 0 | 43 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26560 | 3 |
| B | 0 | 25066 | 3 |
| C | 0 | 22517 | 3 |
| D | 0 | 40730 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 218 | 0 |
| B | 0 | 218 | 0 |
| C | 0 | 218 | 0 |
| D | 0 | 218 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10580 | 504 | 4.763705% |
| B | 10580 | 250 | 2.362949% |
| C | 10580 | 52 | 0.491493% |
| D | 10580 | 814 | 7.693762% |

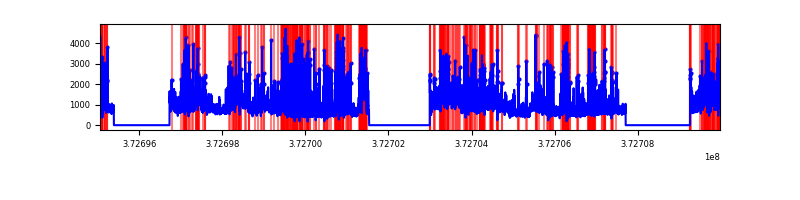

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14937 | 10583 | 339 | 339 | 2.27% | 3.20% |  |
| B | 14937 | 10583 | 172 | 172 | 1.15% | 1.63% |  |
| C | 14937 | 10583 | 34 | 34 | 0.23% | 0.32% |  |
| D | 14937 | 10583 | 674 | 674 | 4.51% | 6.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1279584 | 5344.82 | 1191 | 1167 | 239.2 |
| A | 15 | 17 | 535013 | 2231.91 | 1191 | 1167 | 239.2 |
| A | 14 | 239 | 66549 | 273.35 | 1191 | 1167 | 239.2 |
| B | 5 | 32 | 460438 | 1999.08 | 1217 | 1187 | 229.7 |
| B | 0 | 219 | 409935 | 1779.25 | 1217 | 1187 | 229.7 |
| B | 0 | 229 | 104092 | 447.94 | 1217 | 1187 | 229.7 |
| C | 3 | 233 | 281245 | 1024.82 | 1189 | 1199 | 273.3 |
| C | 0 | 10 | 110957 | 401.66 | 1189 | 1199 | 273.3 |
| C | 1 | 241 | 62101 | 222.87 | 1189 | 1199 | 273.3 |
| D | 8 | 195 | 3204586 | 11261.5 | 1148 | 1122 | 284.5 |
| D | 2 | 250 | 840622 | 2951.19 | 1148 | 1122 | 284.5 |
| D | 12 | 6 | 714428 | 2507.56 | 1148 | 1122 | 284.5 |

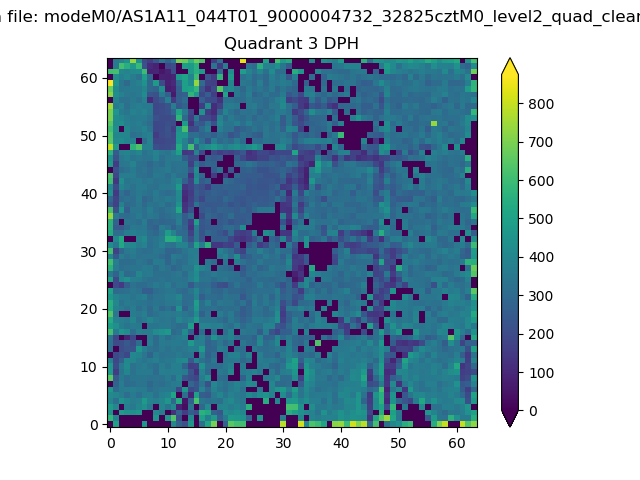

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

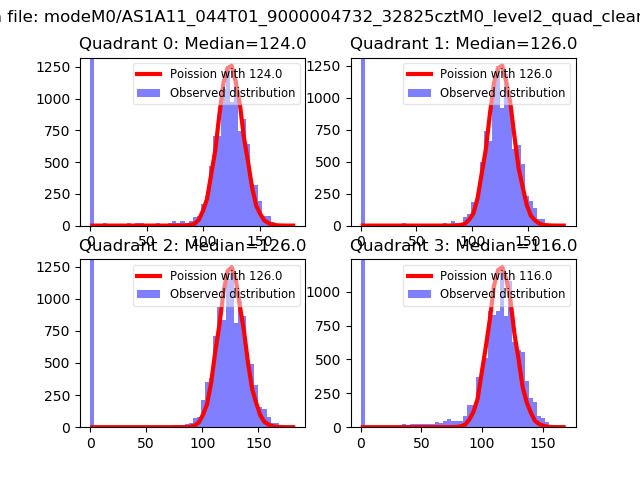

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

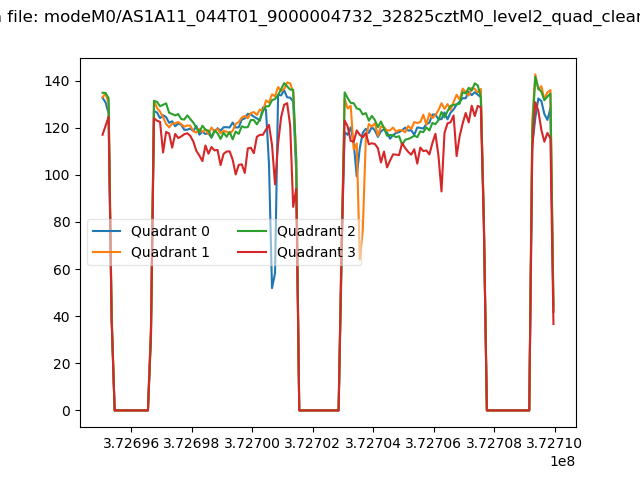

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

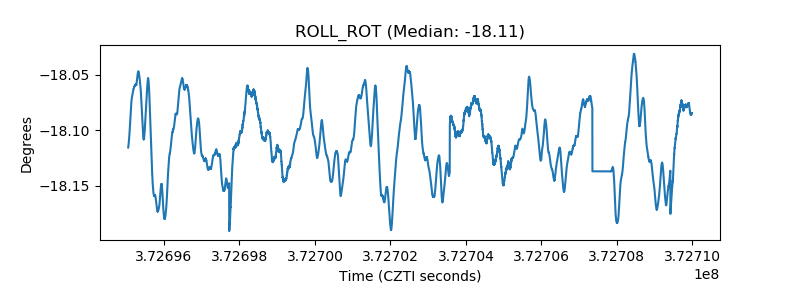

| _ROLL_ROT |  |
| _Roll_DEC |  |

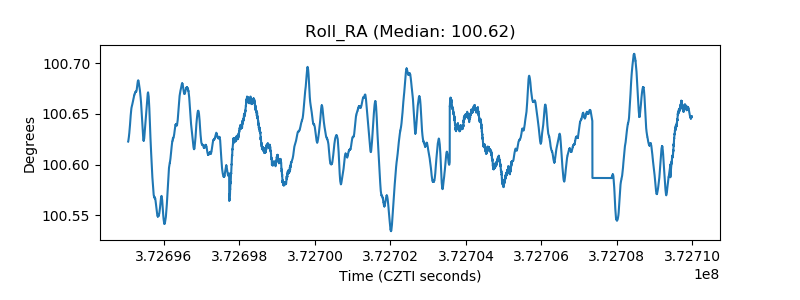

| _Roll_RA |  |

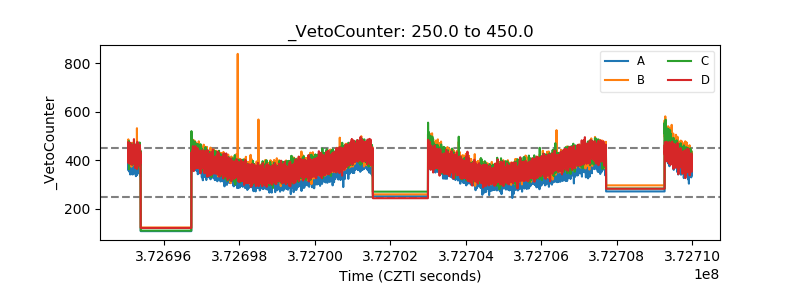

| Veto Counter |  |
