| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T09_9000004734_32828cztM0_level2.evt | modeM0/AS1C06_002T09_9000004734_32828cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,314,240 | 87,995,520 |
| Size | 467.6 MB | 83.9 MB |
| Events in quadrant A | 2,695,156 | 584,231 |
| Events in quadrant B | 3,501,866 | 571,697 |
| Events in quadrant C | 2,670,219 | 595,334 |
| Events in quadrant D | 5,616,377 | 535,969 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11369 | 3 |
| B | 0 | 13789 | 2 |
| C | 0 | 11362 | 2 |
| D | 0 | 20540 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5384 | 13 | 0.241456% |
| B | 5384 | 318 | 5.906389% |
| C | 5384 | 26 | 0.482912% |
| D | 5384 | 369 | 6.853640% |

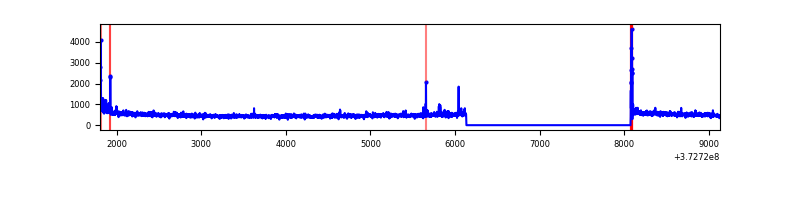

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7327 | 5385 | 7 | 7 | 0.10% | 0.13% |  |
| B | 7327 | 5385 | 233 | 233 | 3.18% | 4.33% |  |
| C | 7327 | 5385 | 15 | 15 | 0.20% | 0.28% |  |
| D | 7327 | 5385 | 309 | 309 | 4.22% | 5.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 207 | 69021 | 523.5 | 653 | 642 | 130.6 |
| A | 14 | 238 | 66739 | 506.03 | 653 | 642 | 130.6 |
| A | 9 | 143 | 13446 | 98.03 | 653 | 642 | 130.6 |
| B | 5 | 172 | 850691 | 7141.35 | 641 | 628 | 119.0 |
| B | 0 | 189 | 45190 | 374.36 | 641 | 628 | 119.0 |
| B | 5 | 255 | 23294 | 190.42 | 641 | 628 | 119.0 |
| C | 0 | 10 | 69913 | 470.77 | 641 | 647 | 147.1 |
| C | 3 | 233 | 32170 | 214.25 | 641 | 647 | 147.1 |
| C | 1 | 23 | 19907 | 130.9 | 641 | 647 | 147.1 |
| D | 8 | 195 | 1381292 | 9462.55 | 614 | 600 | 145.9 |
| D | 2 | 250 | 628350 | 4302.28 | 614 | 600 | 145.9 |
| D | 12 | 6 | 535004 | 3662.53 | 614 | 600 | 145.9 |

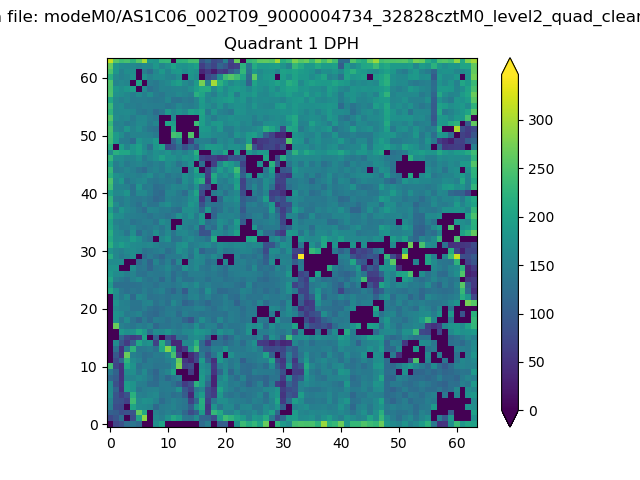

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

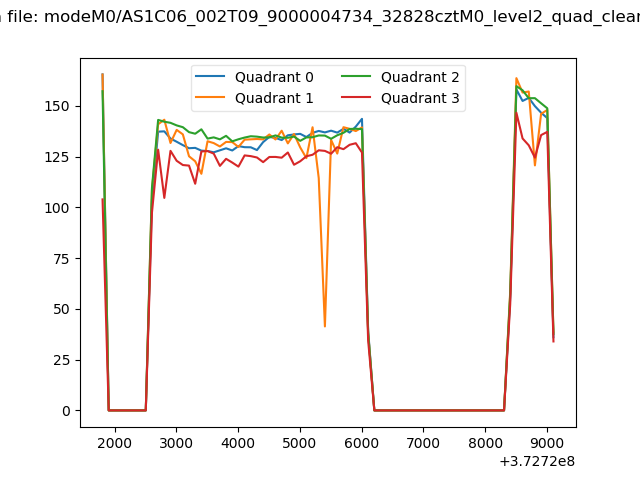

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

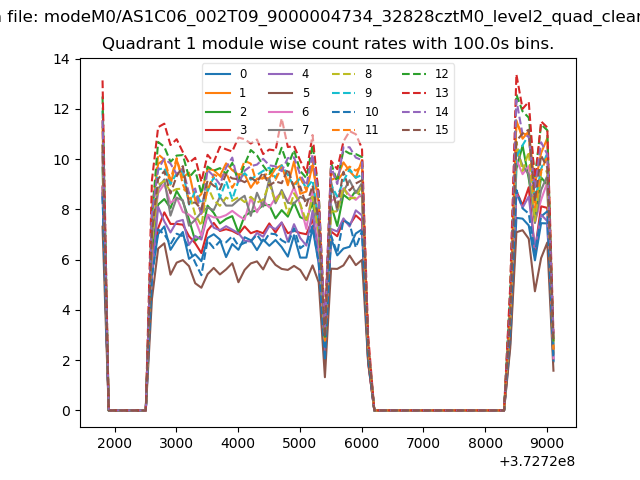

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

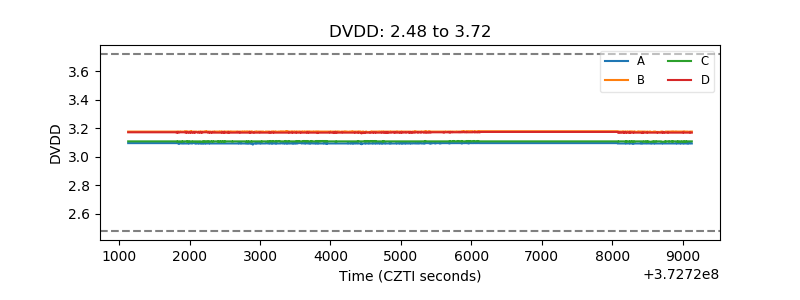

| D_VDD |  |

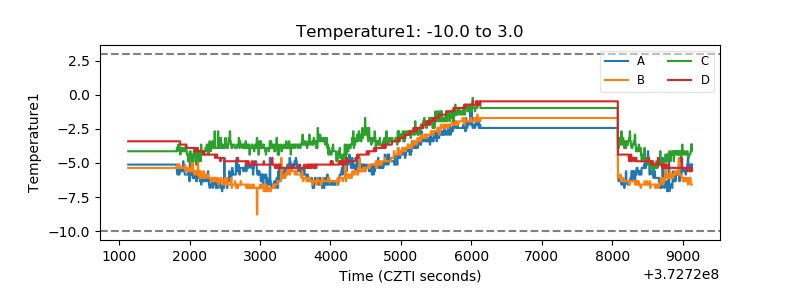

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

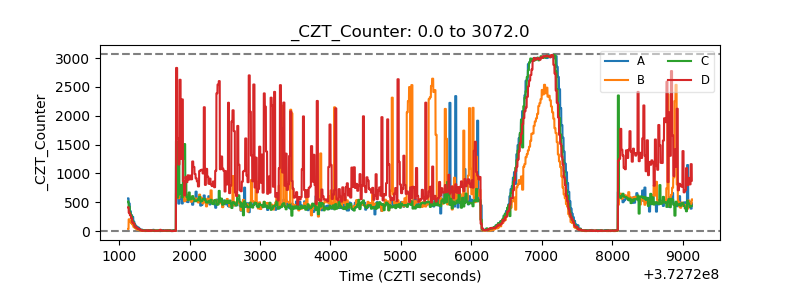

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

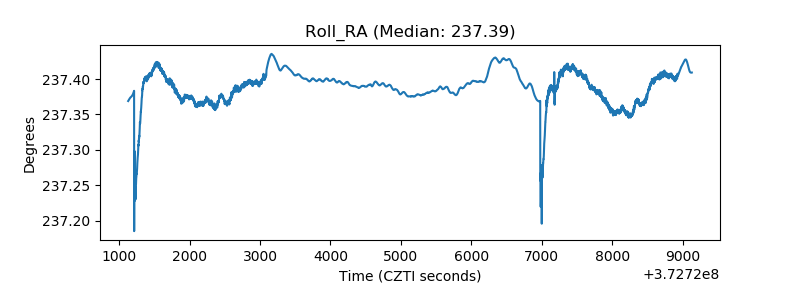

| _Roll_RA |  |
| Veto Counter |  |
