| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T09_9000004734_32831cztM0_level2.evt | modeM0/AS1C06_002T09_9000004734_32831cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,299,200 | 98,536,320 |
| Size | 477.1 MB | 94.0 MB |
| Events in quadrant A | 2,538,672 | 691,106 |
| Events in quadrant B | 3,026,537 | 692,019 |
| Events in quadrant C | 2,949,164 | 671,209 |
| Events in quadrant D | 6,302,145 | 582,639 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10640 | 3 |
| B | 0 | 12118 | 2 |
| C | 0 | 12029 | 2 |
| D | 0 | 22247 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4943 | 24 | 0.485535% |
| B | 4943 | 106 | 2.144447% |
| C | 4943 | 83 | 1.679142% |
| D | 4943 | 866 | 17.519725% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7096 | 4944 | 11 | 11 | 0.16% | 0.22% |  |
| B | 7096 | 4944 | 73 | 73 | 1.03% | 1.48% |  |
| C | 7096 | 4944 | 64 | 64 | 0.90% | 1.29% |  |
| D | 7096 | 4943 | 727 | 727 | 10.25% | 14.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 133056 | 1117.57 | 595 | 584 | 118.5 |
| A | 14 | 239 | 64194 | 536.63 | 595 | 584 | 118.5 |
| A | 12 | 16 | 15679 | 127.35 | 595 | 584 | 118.5 |
| B | 5 | 172 | 336930 | 3076.44 | 587 | 574 | 109.3 |
| B | 0 | 219 | 223411 | 2038.15 | 587 | 574 | 109.3 |
| B | 8 | 128 | 53154 | 480.92 | 587 | 574 | 109.3 |
| C | 0 | 10 | 383334 | 2988.94 | 561 | 566 | 128.1 |
| C | 9 | 160 | 177597 | 1382.39 | 561 | 566 | 128.1 |
| C | 3 | 233 | 63148 | 488.68 | 561 | 566 | 128.1 |
| D | 7 | 80 | 1945020 | 15501.49 | 524 | 511 | 125.4 |
| D | 8 | 195 | 1499467 | 11949.57 | 524 | 511 | 125.4 |
| D | 2 | 250 | 565574 | 4504.64 | 524 | 511 | 125.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

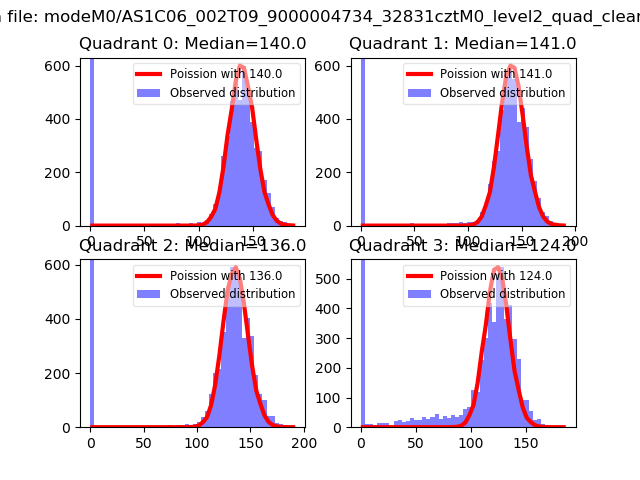

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

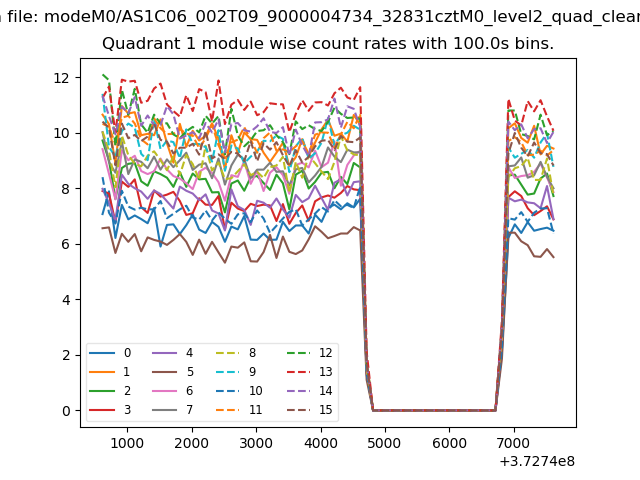

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

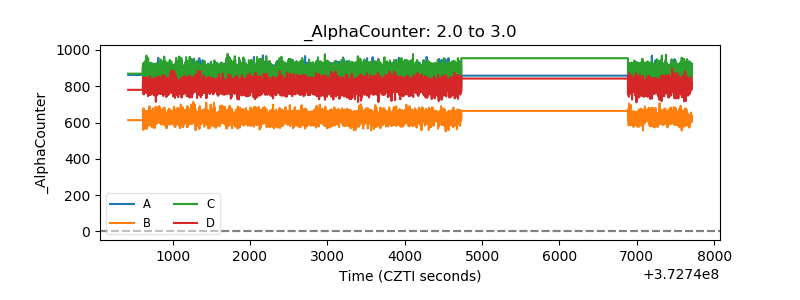

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

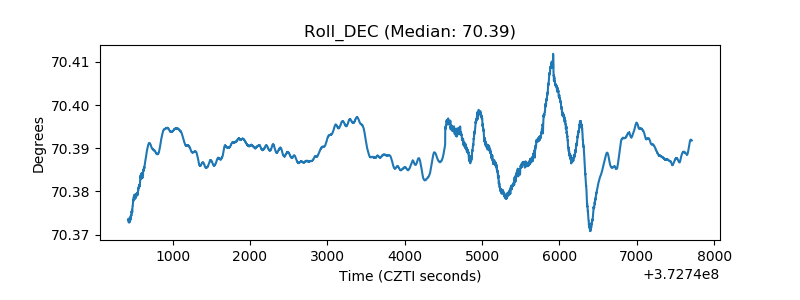

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
