| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T09_9000004734_32833cztM0_level2.evt | modeM0/AS1C06_002T09_9000004734_32833cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,247,040 | 89,196,480 |
| Size | 490.4 MB | 85.1 MB |
| Events in quadrant A | 2,494,336 | 612,217 |
| Events in quadrant B | 3,770,208 | 589,284 |
| Events in quadrant C | 2,766,223 | 587,473 |
| Events in quadrant D | 6,177,835 | 534,313 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10985 | 3 |
| B | 0 | 14726 | 2 |
| C | 0 | 11862 | 2 |
| D | 0 | 22263 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5395 | 9 | 0.166821% |
| B | 5395 | 271 | 5.023170% |
| C | 5395 | 46 | 0.852641% |
| D | 5395 | 535 | 9.916589% |

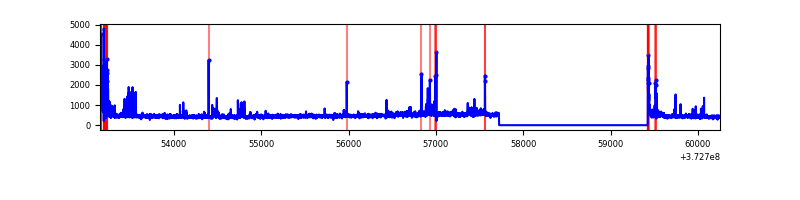

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7098 | 5396 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7098 | 5396 | 194 | 194 | 2.73% | 3.60% |  |
| C | 7098 | 5396 | 37 | 37 | 0.52% | 0.69% |  |
| D | 7098 | 5396 | 463 | 463 | 6.52% | 8.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 41828 | 330.65 | 623 | 611 | 124.7 |
| A | 14 | 207 | 25139 | 196.77 | 623 | 611 | 124.7 |
| A | 13 | 6 | 12033 | 91.63 | 623 | 611 | 124.7 |
| B | 5 | 172 | 541951 | 4676.99 | 606 | 592 | 115.7 |
| B | 8 | 128 | 293096 | 2527.04 | 606 | 592 | 115.7 |
| B | 0 | 219 | 258233 | 2225.85 | 606 | 592 | 115.7 |
| C | 0 | 10 | 162336 | 1192.1 | 592 | 598 | 135.7 |
| C | 1 | 241 | 126603 | 928.73 | 592 | 598 | 135.7 |
| C | 3 | 233 | 87726 | 642.18 | 592 | 598 | 135.7 |
| D | 8 | 195 | 2244489 | 16290.07 | 574 | 560 | 137.7 |
| D | 12 | 6 | 417325 | 3025.56 | 574 | 560 | 137.7 |
| D | 2 | 250 | 307982 | 2231.77 | 574 | 560 | 137.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

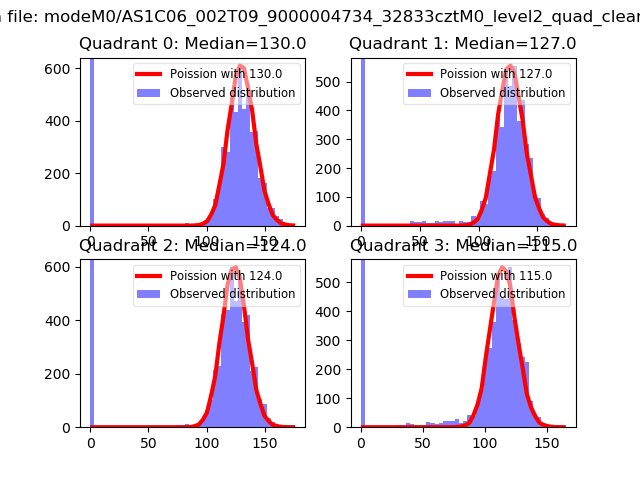

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

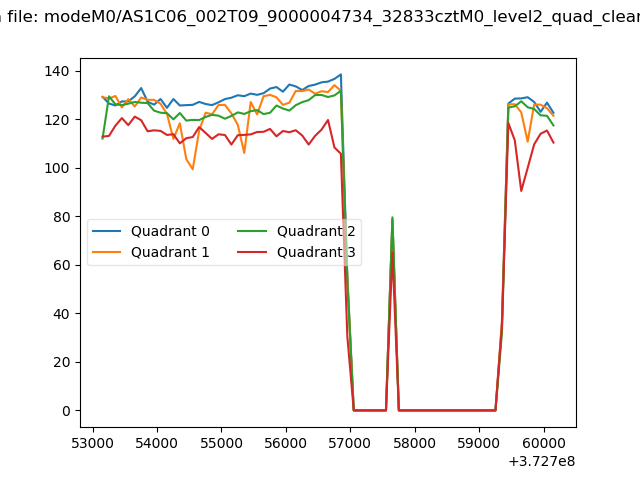

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

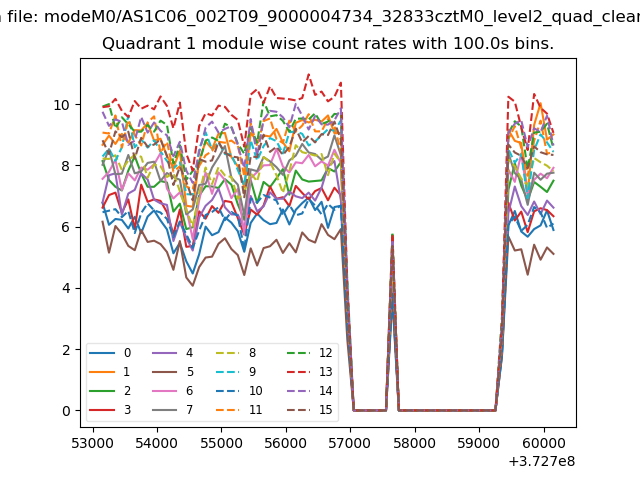

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

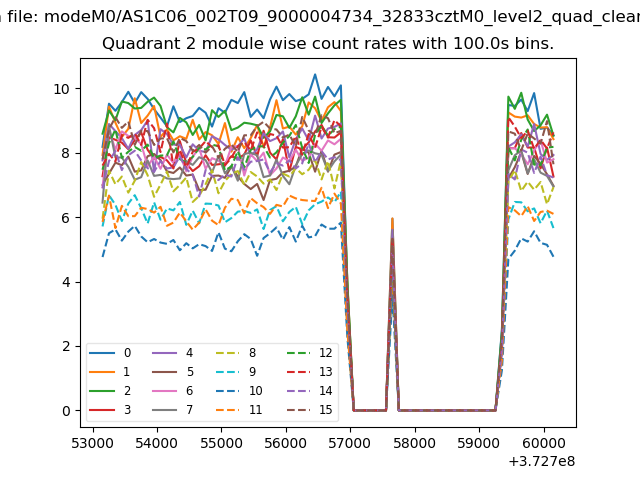

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

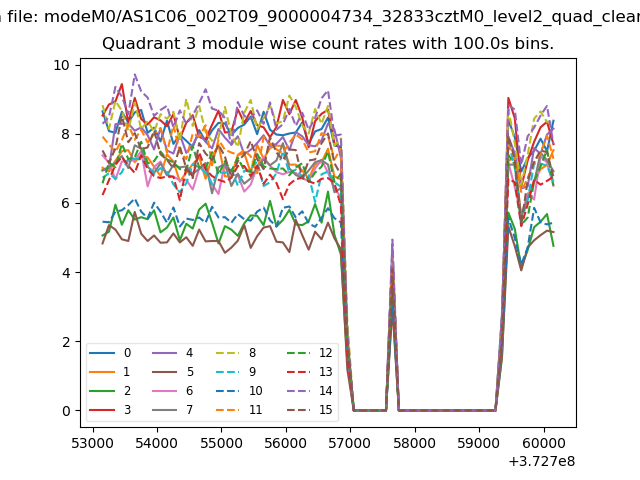

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

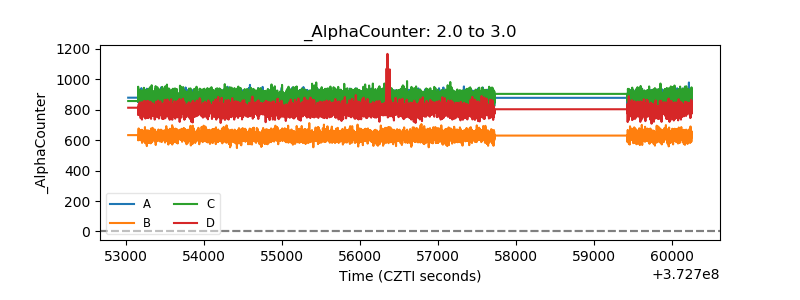

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

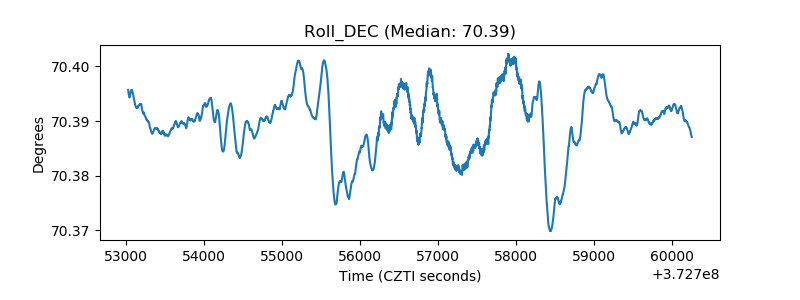

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
