| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_005T04_9000004742_32859cztM0_level2.evt | modeM0/AS1A11_005T04_9000004742_32859cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,180,800 | 69,592,320 |
| Size | 456.0 MB | 66.4 MB |
| Events in quadrant A | 2,416,252 | 453,909 |
| Events in quadrant B | 3,273,413 | 456,288 |
| Events in quadrant C | 2,861,116 | 449,790 |
| Events in quadrant D | 5,591,432 | 395,683 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10119 | 3 |
| B | 0 | 12777 | 2 |
| C | 0 | 11491 | 2 |
| D | 0 | 20160 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5003 | 4 | 0.079952% |
| B | 5003 | 218 | 4.357386% |
| C | 5003 | 101 | 2.018789% |
| D | 5003 | 580 | 11.593044% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

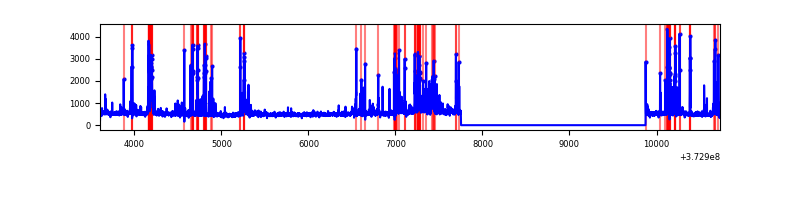

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7125 | 5004 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7125 | 5004 | 142 | 142 | 1.99% | 2.84% |  |
| C | 7125 | 5004 | 72 | 72 | 1.01% | 1.44% |  |
| D | 7125 | 5004 | 716 | 716 | 10.05% | 14.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8704 | 66.06 | 622 | 612 | 122.5 |
| A | 13 | 6 | 6905 | 51.38 | 622 | 612 | 122.5 |
| A | 0 | 226 | 5456 | 39.55 | 622 | 612 | 122.5 |
| B | 5 | 172 | 697216 | 6023.03 | 620 | 605 | 115.7 |
| B | 0 | 197 | 48616 | 415.11 | 620 | 605 | 115.7 |
| B | 12 | 1 | 28405 | 240.36 | 620 | 605 | 115.7 |
| C | 0 | 10 | 235052 | 1702.67 | 601 | 608 | 137.7 |
| C | 3 | 233 | 192840 | 1396.1 | 601 | 608 | 137.7 |
| C | 14 | 67 | 69837 | 502.78 | 601 | 608 | 137.7 |
| D | 12 | 227 | 1861632 | 12990.03 | 576 | 563 | 143.3 |
| D | 8 | 195 | 934674 | 6519.98 | 576 | 563 | 143.3 |
| D | 2 | 250 | 123467 | 857.85 | 576 | 563 | 143.3 |

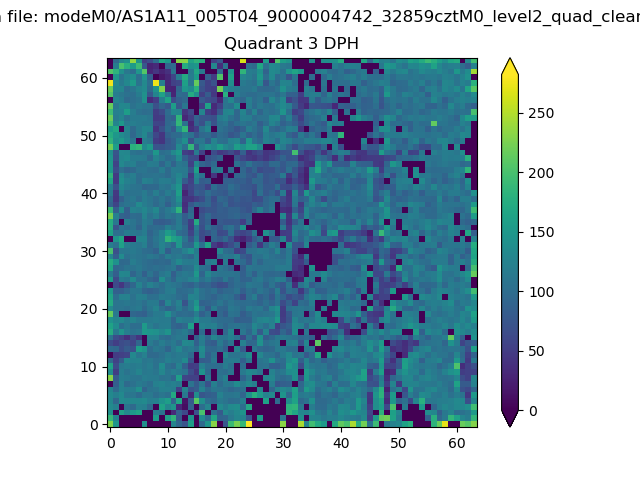

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

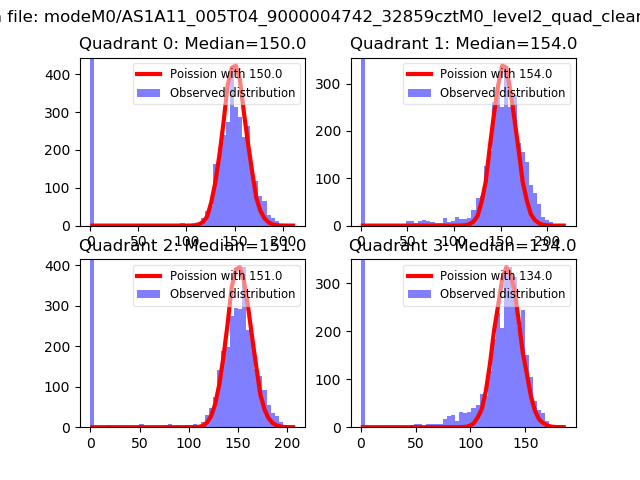

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

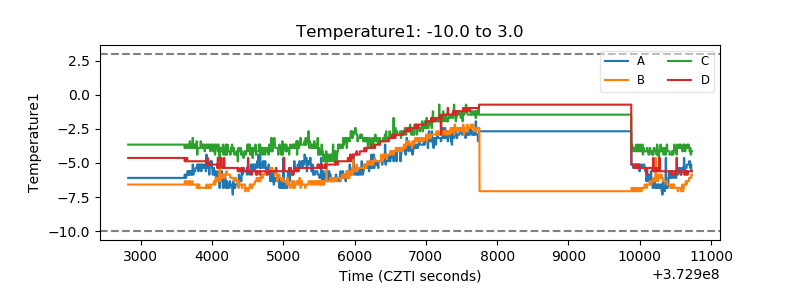

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

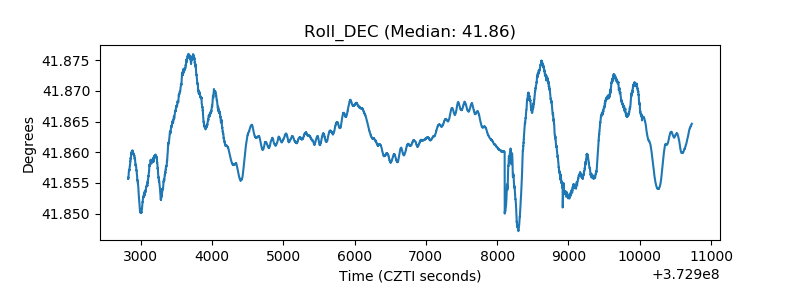

| _Roll_DEC |  |

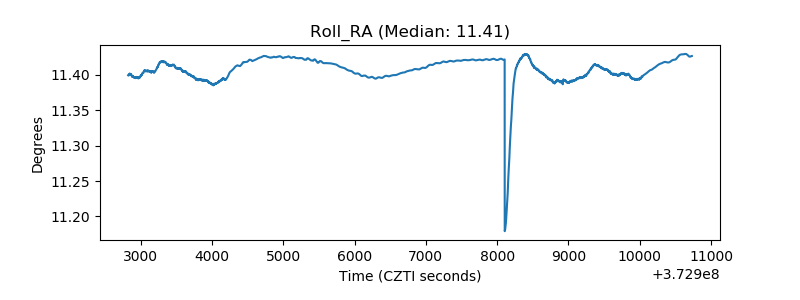

| _Roll_RA |  |
| Veto Counter |  |
