| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_010T05_9000004736_32847cztM0_level2.evt | modeM0/AS1C06_010T05_9000004736_32847cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,539,840 | 98,107,200 |
| Size | 487.8 MB | 93.6 MB |
| Events in quadrant A | 2,354,133 | 670,013 |
| Events in quadrant B | 3,033,967 | 683,970 |
| Events in quadrant C | 4,128,816 | 647,297 |
| Events in quadrant D | 5,619,814 | 602,151 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10574 | 3 |
| B | 0 | 12378 | 2 |
| C | 0 | 15846 | 2 |
| D | 0 | 20465 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5243 | 7 | 0.133511% |
| B | 5243 | 163 | 3.108907% |
| C | 5243 | 201 | 3.833683% |
| D | 5243 | 453 | 8.640092% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

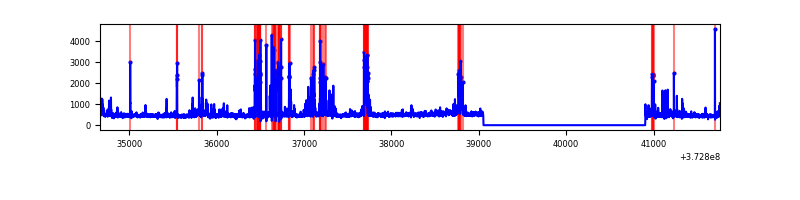

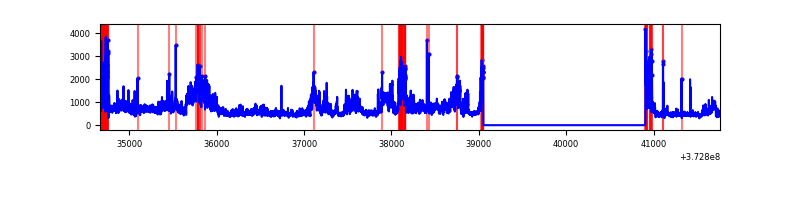

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7096 | 5244 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7096 | 5244 | 120 | 120 | 1.69% | 2.29% |  |
| C | 7096 | 5244 | 145 | 145 | 2.04% | 2.77% |  |
| D | 7096 | 5244 | 371 | 371 | 5.23% | 7.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 27352 | 224.65 | 597 | 586 | 119.1 |
| A | 13 | 254 | 9843 | 77.69 | 597 | 586 | 119.1 |
| A | 13 | 6 | 8496 | 66.39 | 597 | 586 | 119.1 |
| B | 5 | 172 | 393888 | 3499.28 | 593 | 579 | 112.4 |
| B | 0 | 197 | 115855 | 1025.61 | 593 | 579 | 112.4 |
| B | 15 | 85 | 54611 | 480.72 | 593 | 579 | 112.4 |
| C | 3 | 233 | 1584060 | 12203.65 | 565 | 569 | 129.8 |
| C | 0 | 10 | 254557 | 1957.43 | 565 | 569 | 129.8 |
| C | 1 | 241 | 30928 | 233.97 | 565 | 569 | 129.8 |
| D | 8 | 195 | 1269364 | 8920.2 | 556 | 543 | 142.2 |
| D | 7 | 80 | 740629 | 5203.03 | 556 | 543 | 142.2 |
| D | 2 | 250 | 439861 | 3088.54 | 556 | 543 | 142.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

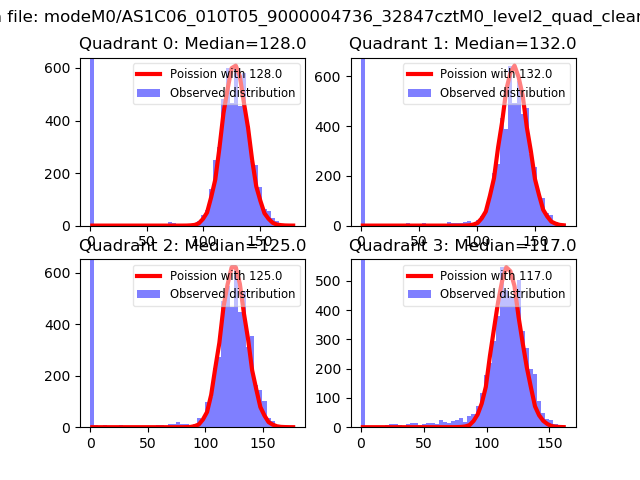

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

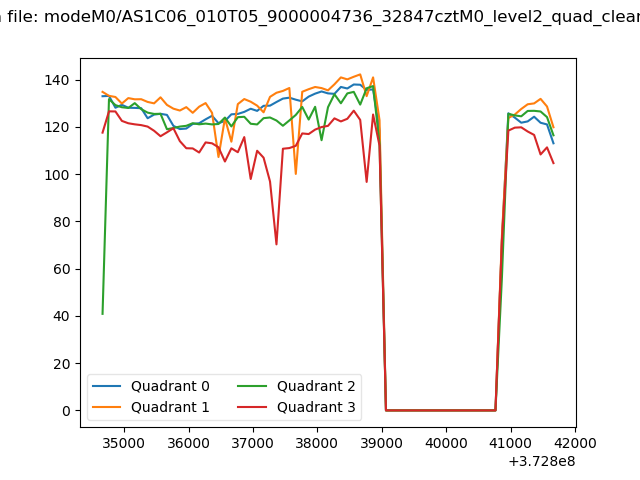

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

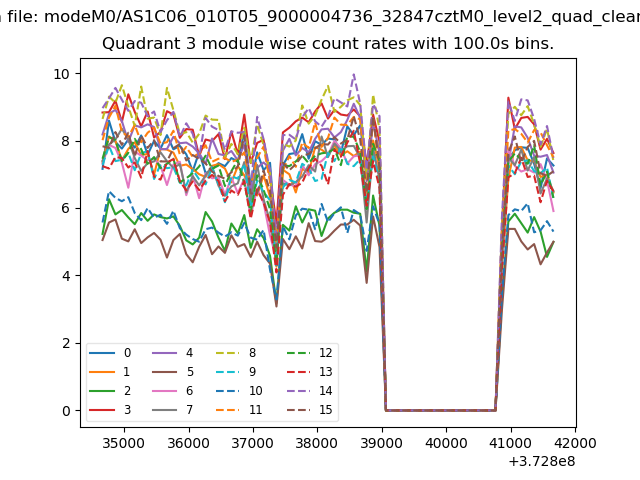

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

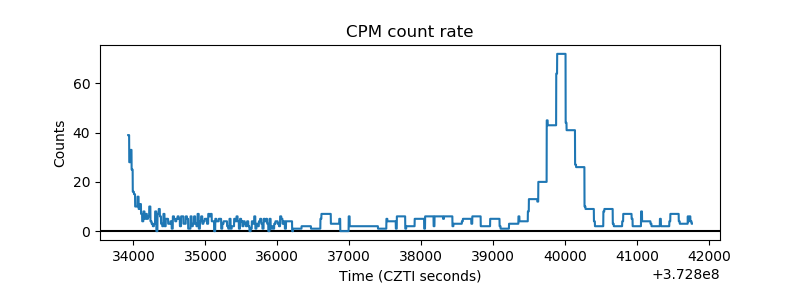

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

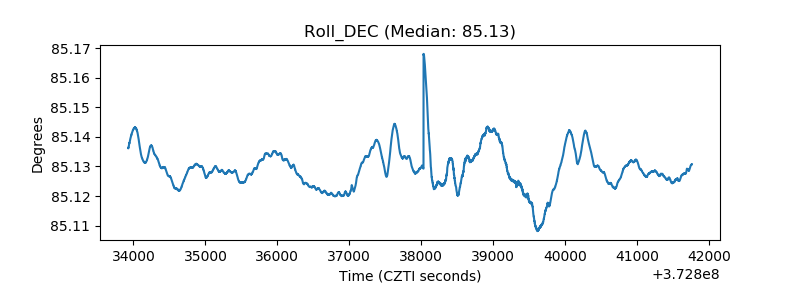

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

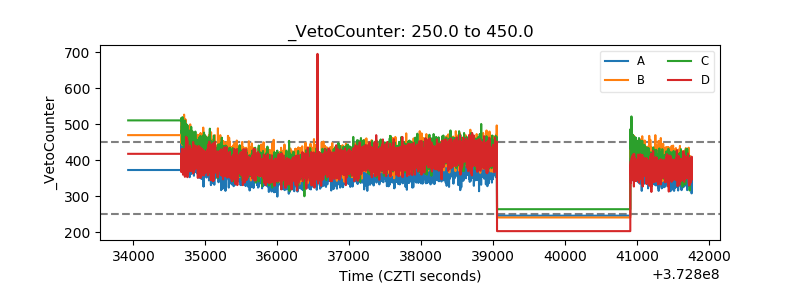

| Veto Counter |  |
